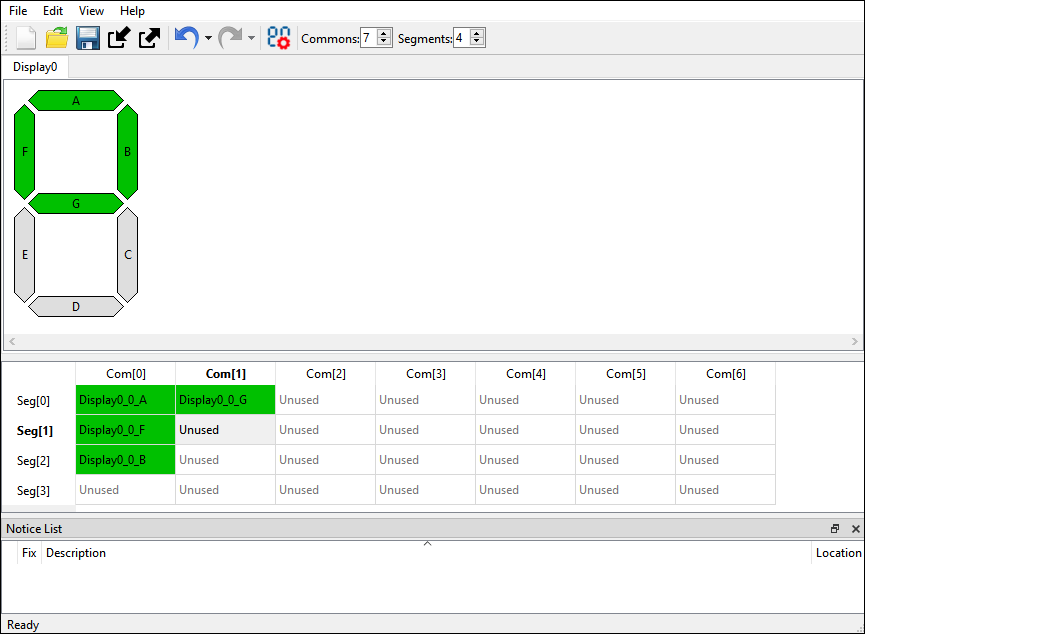

The Segment LCD Configurator is a stand-alone tool included with the ModusToolbox™ software and used to generate display structures for the Segment LCD Driver. Section "

Supported software

" provides details on the PDL libraries. The tool is supported on Windows, Linux, and macOS.


../figures/image4.png

The Segment LCD Configurator supports the following types of displays:

  • bar graph (1 pixel per symbol)

  • 7-segment

  • 14-segment

  • 16-segment

  • 5x8 dot matrix (40 pixels per symbol)

See the

Display Editor

section for more information about display types.
