Setup program GUI description

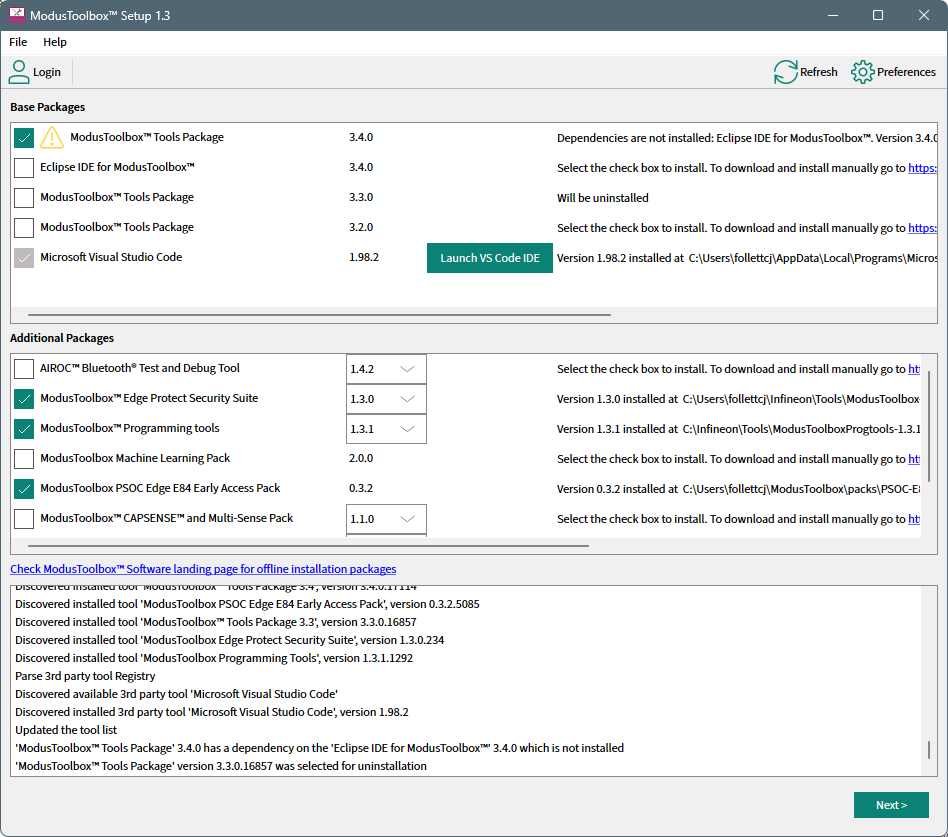

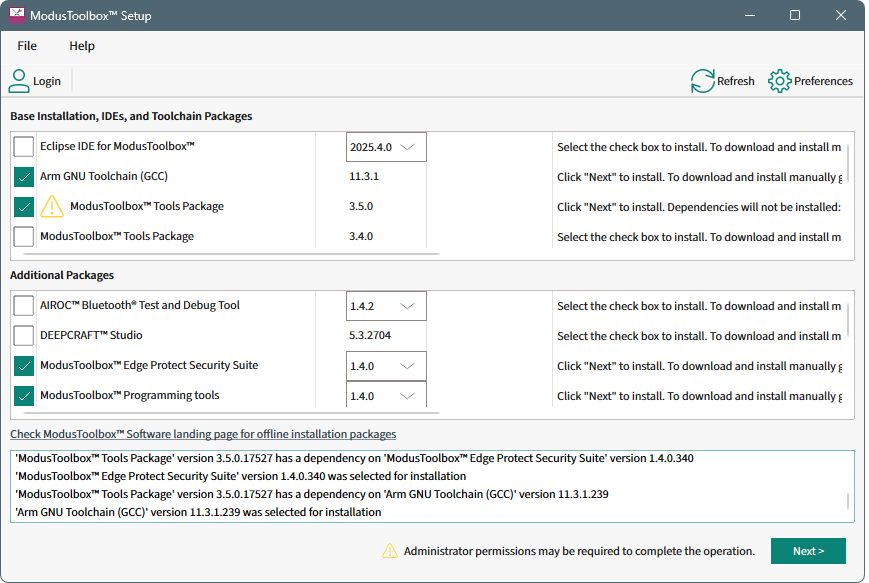

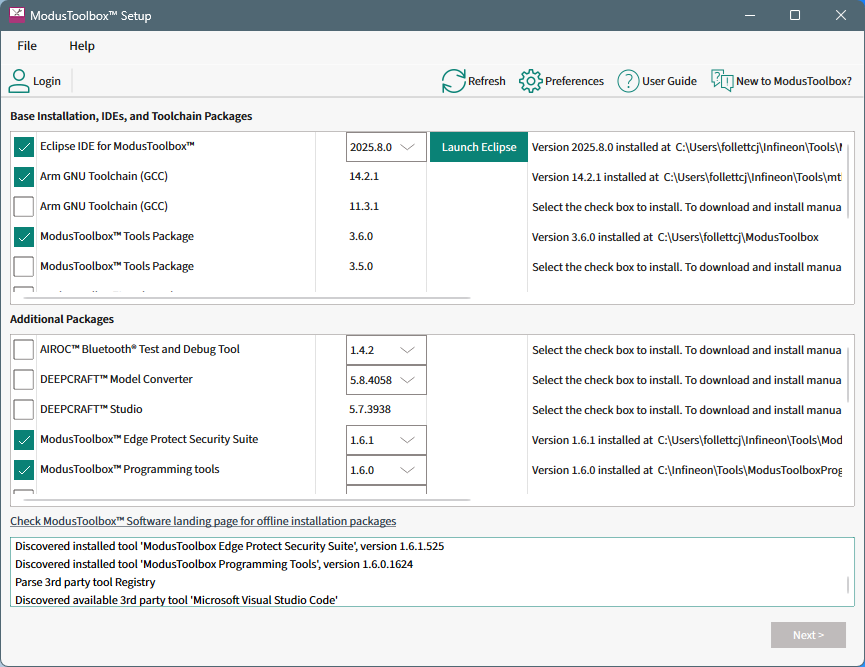

The main GUI window of the ModusToolbox™ Setup program contains the following elements:
Main menu
Main toolbar
Packages view
Log panel
Menus
The main application menu consists of multiple menu item groups as defined below.
File
The
File
menu consists of the following menu items:
Menu item | Description |
|---|---|
Login / Logout | The login function provides access to installable packages from the IDC. The login is the same as the IDC login. If you don't already have an account, you can create one at https://community.infineon.com. |
Refresh | Checks the server for any updates and refreshes the Setup program. |
Preferences | Opens the Preferences dialog. |
Exit | Exits the ModusToolbox™ Setup program. |
Help
The Help menu consists of the following menu items:
View Help
– Opens this document.
Check for updates
– Manually checks to see if there are any updates to the Setup program itself. The tool can be configured to check for updates on startup. If updates are available, the ModusToolbox™ Setup Installer package is downloaded and executed once the program is closed.
About
– Opens the About box for version information, with links to open
, the current session log file, and the Infineon Developer Center Launcher Service log file.
Main toolbar
The main toolbar consists of
Login
,
Logout
and
Preferences
buttons. While
Login
is visible,
Logout
is not. When you are logged in, your email address is displayed along with the
Logout
button.
The
Preferences
button opens the
Preferences dialog
. The
Refresh
button initiates a refresh of the list of available packages.
Packages view
The Setup program gathers package data from the IDC online and local tools registry, and then displays all installed and available packages along with version information. For the purposes of this document, a package includes ModusToolbox™ platform tools, patches, packs, programming tools, and other tools such as the Memory Analyzer. The Setup program displays a list of the available packages, grouped by two categories:
Base Packages
: This includes the ModusToolbox™ tools packages and patches.
Additional Packages
: This includes all other packages relevant to the ModusToolbox™ ecosystem, including programming tools, technology packs, early access packs, and auxiliary tools.
Some of the packages require you to be logged in to download and install, while ModusToolbox™ platform tools, patches, programming tools, and ModusToolbox™ Machine Learning Pack, MS Visual Studio Code do not.
As you select various packages, the description on the right describes the action to take next.
Log panel
The log panel area displays the information messages relevant for you. Examples of events that produce messages to the panel view:
Logged in/logged out
Completed/failed downloading the tool data from the online tool registry
Package was selected/deselected in the tool selection view
Dependent package version was changed (to satisfy the updated tool dependency constraints)
Tool configuration (installation mode, target directory was changed)
Tool download started/finished
Tool installation/uninstallation started/finished
See
How to collect logs
in the troubleshooting section.

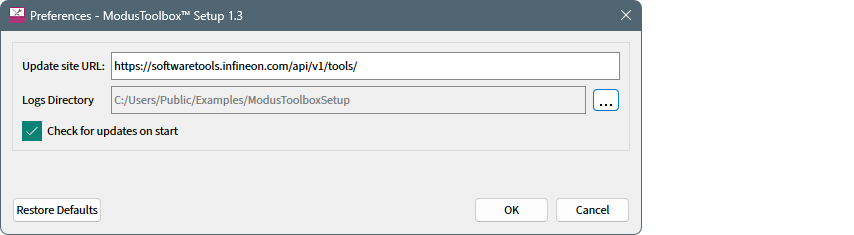

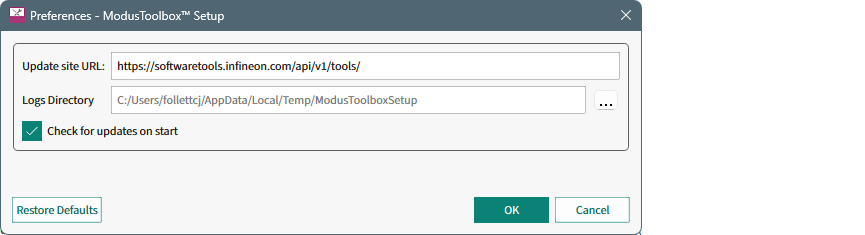

Preferences dialog
You can open the Preferences dialog from the main menu or main toolbar button.
The following settings are available:
Update site URL
: The address of the IDC Online Tools registry. Usually there is no need to customize this address to a non-default URL.
Logs Directory
: The path to the directory where log files are stored. By default, this is the system temporary directory.
Note:
After choosing a directory for logs, the program will create a "ModusToolboxSetup" sub-folder there where log files are kept.
Check for updates on start
: disable this option to prevent the program from automatically checking for an update at each start.
Use the
Restore Defaults
button to revert the options back to their default values.
