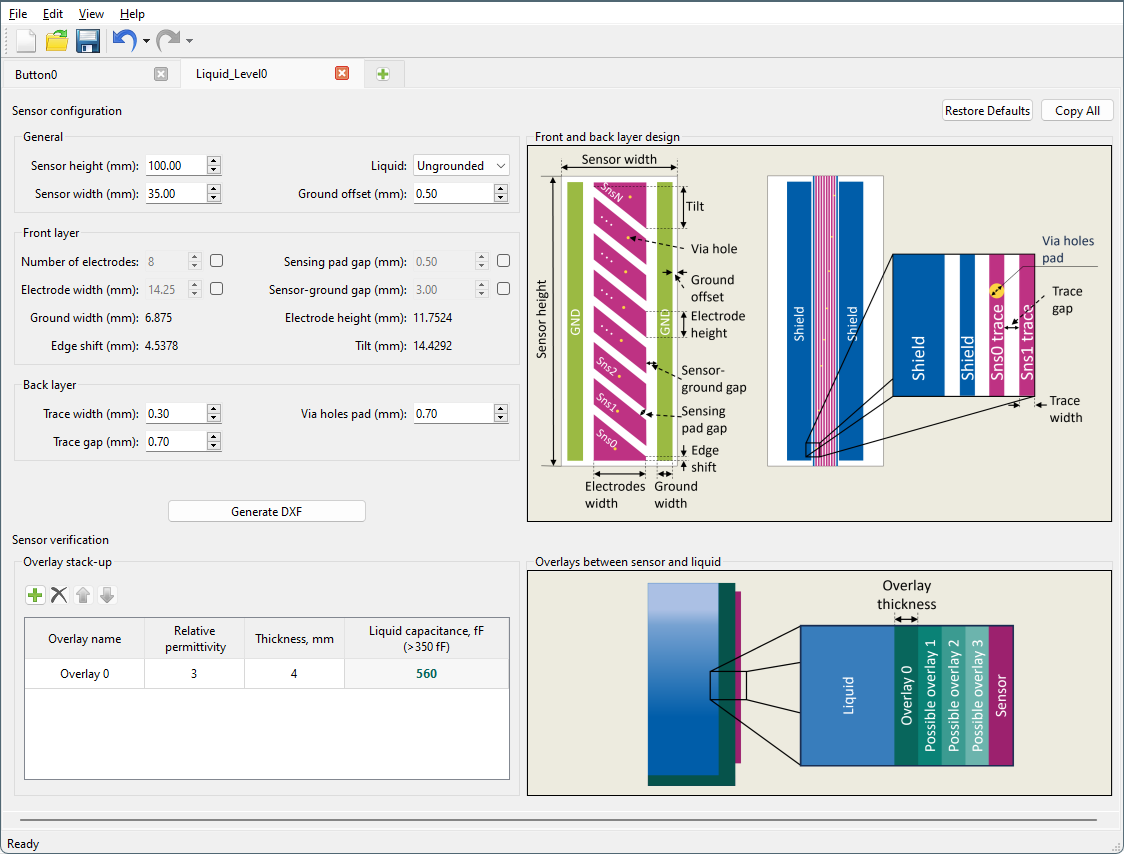

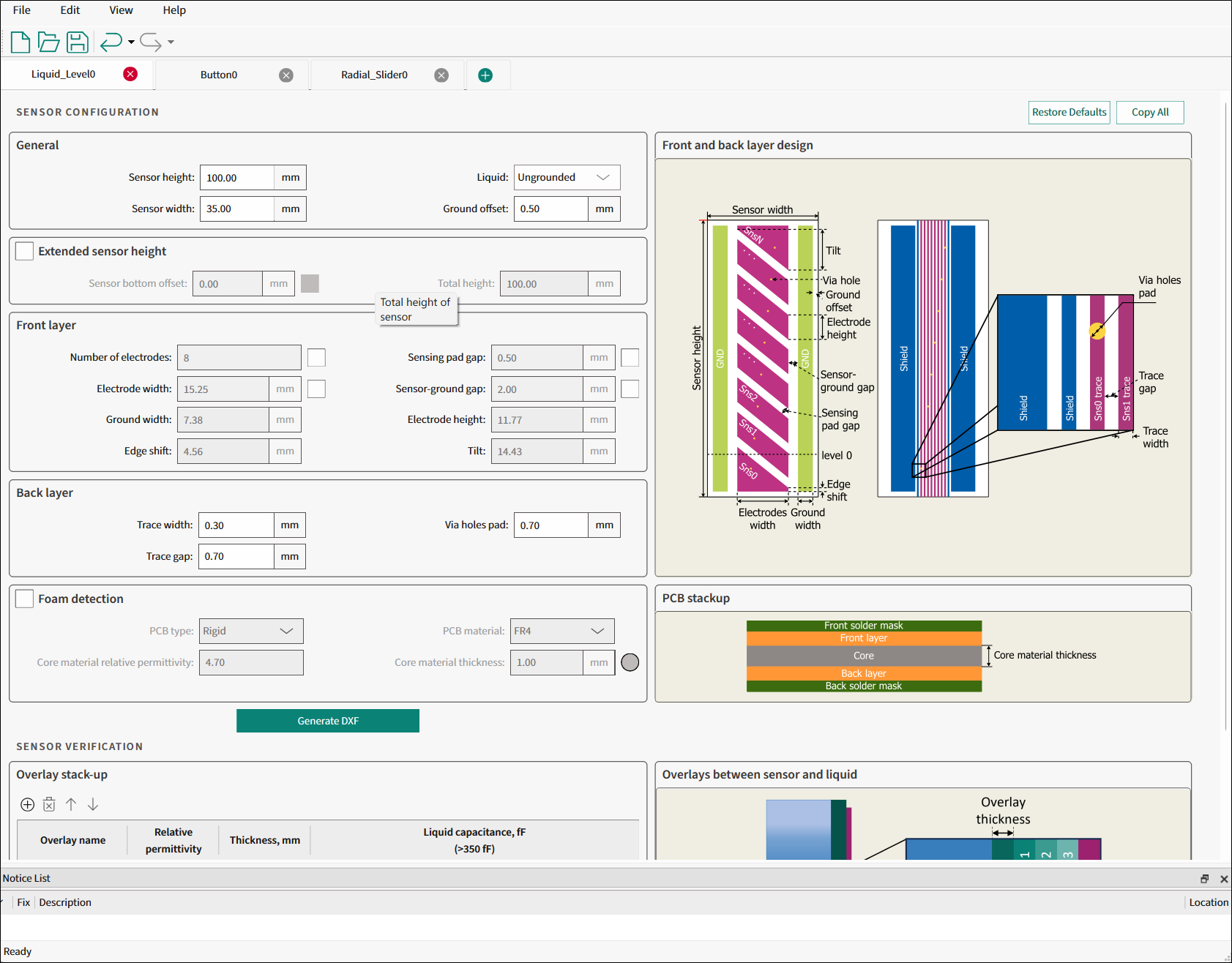

The Sensor Designer tool generates sensor drawings in the *.dxf file format to be imported into PCB layouts. The tool interface contains the parameters description and illustrative images of the sensor drawings. You can add multiple Liquid Level tab, Button tab, and Radial Slider tab tabs to generate data for the sensor. The tool is supported on Windows, Linux, and macOS.
