Quick start

This section provides a simple workflow for how to use the QSPI Configurator.

1. Launch the QSPI Configurator

   .

2. Open an existing or create a new configuration file.

3. Specify the configuration file location.

   Note:

   The device database (device-db) is loaded before the configuration. If device-db is not present on the disk, it will be downloaded automatically. Observe the notification on the status bar.

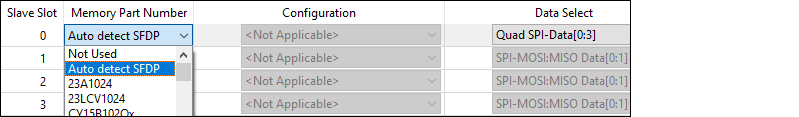

4. Select a memory from the

   Memory Part Number

   list.

   • If your memory device supports SFDP, select

     Auto detect SFDP

     .

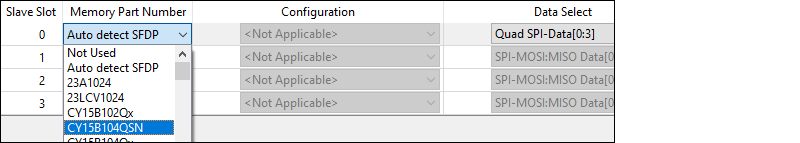

   • If your memory device does not support SFDP, or for manual configuration, select a memory from the

     Memory Part Number

     list, and specify the configuration parameters as required (for example, memory mapped, write enable, etc.). See

     QSPI Configuration Fields

     .







   Note:

   If the required memory part number is not present in the list, you can add it. Select <Browse>…, navigate to the memory file location, and select it.

5. Save the Configuration file to generate source code. See

   Code generation

   .

6. Use the generated structures as input parameters for QSPI functions in your application.
