The

Widget View

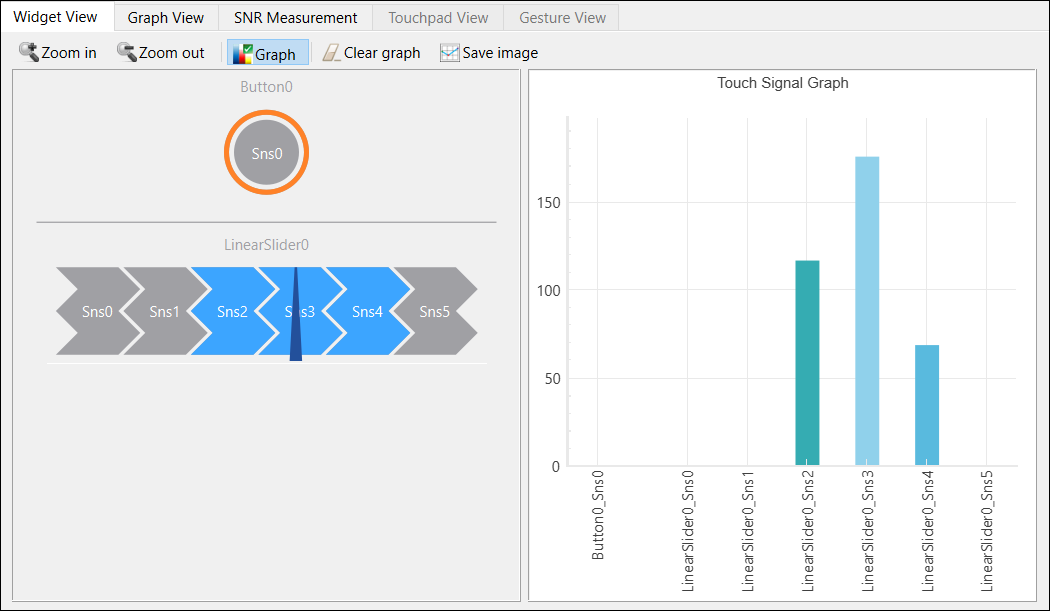

tab provides a visual representation of all widgets selected in the

Widget Explorer pane

e. If a widget consists of more than one sensor, individual selected sensors are highlighted in the

Widget Explorer pane

and

Widget/Sensor Parameters pane

.


../figures/image33.png

The Widget and/or sensors are highlighted when the device reports their touch status as active.

Some additional features are available depending on the widget type.

Touch Signal Graph​

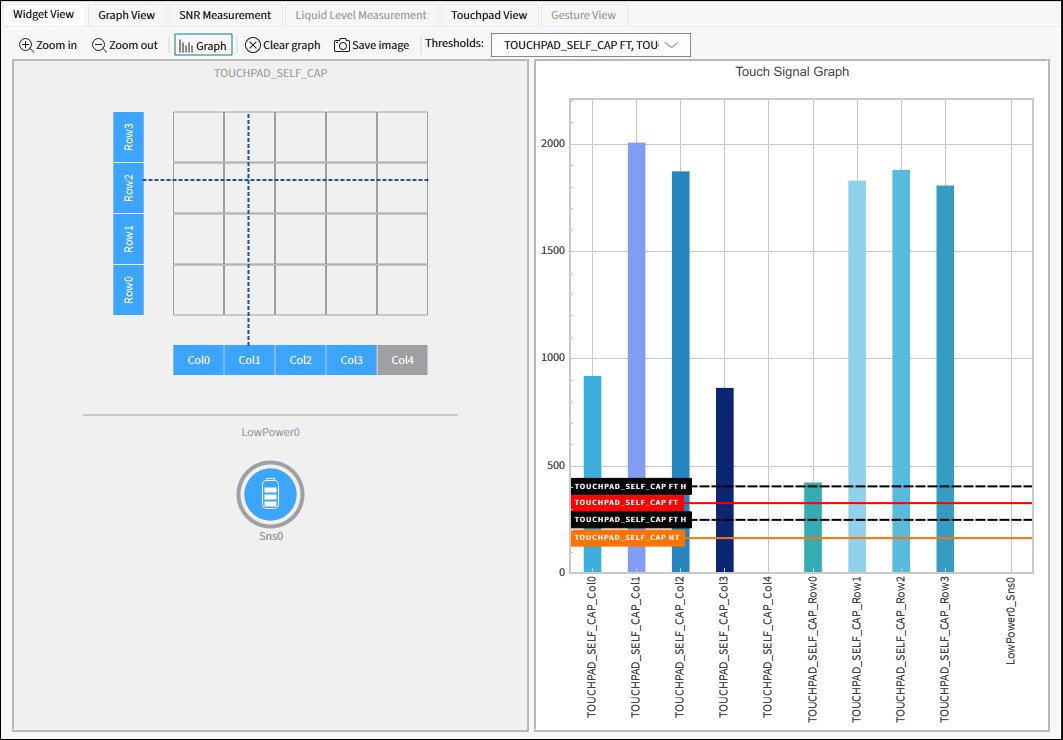

The

Widget View

tab also displays the Touch Signal Graph. This graph contains a touch signal level for each sensor selected in the

Widget Explorer pane

.
