1. Connect the device that supports external memory (for example, CY8CKIT-062-WiFi-BT with QSPI support) to the host computer and select it in the

    Programmer

    ,

    Board

    , and

    Device

    drop-downs.

  2. Select the programming file as described in the

    Load programming file

    section. The programming file should have external memory region(s).

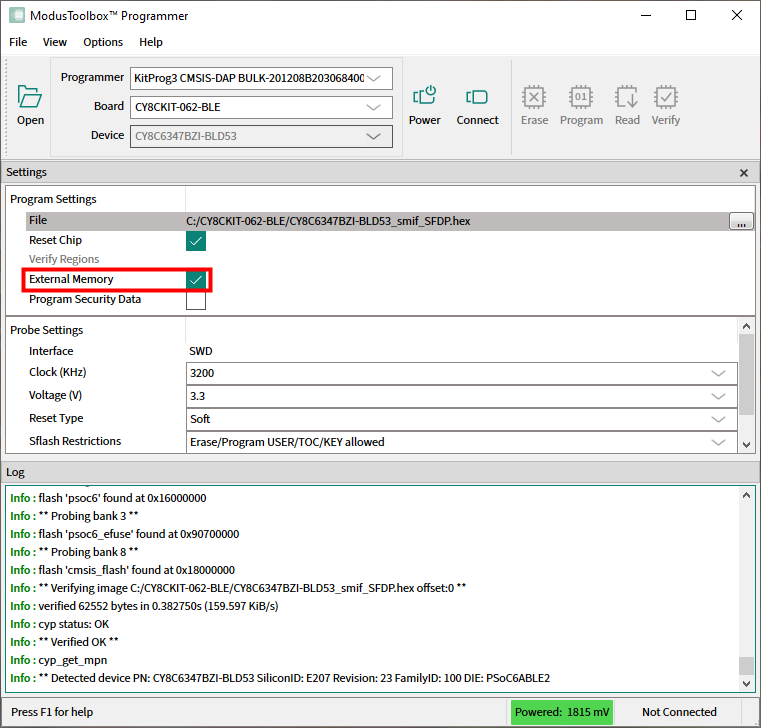

  3. Select the

    External Memory

    option under

    Program Settings

    .



  4. Connect to the device (see

    Connect device

    ).

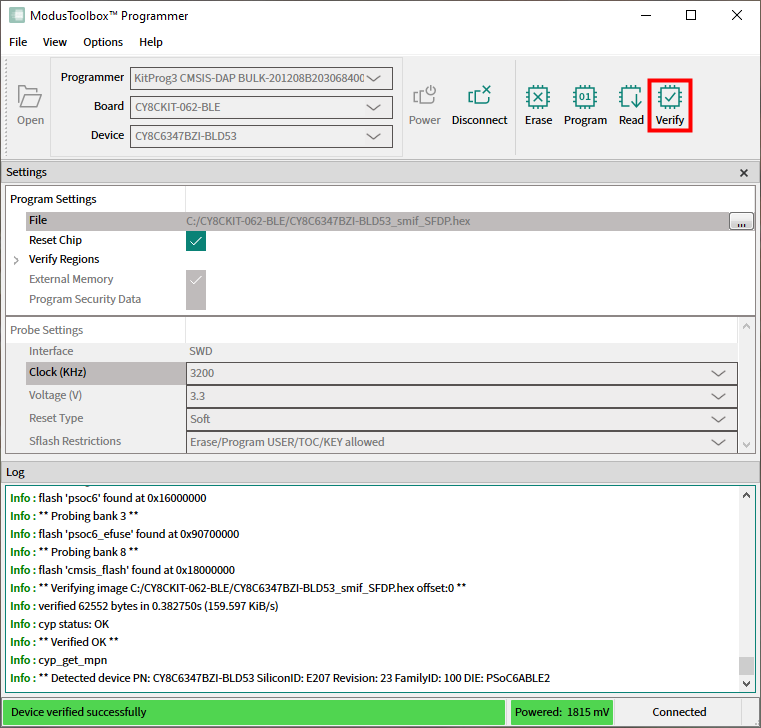

  5. Click the

    Verify

    button.

ModusToolbox™ Programmer verifies the device and displays various messages in the

Log

. Then, a message in the Status Bar indicates that the device was verified successfully or that an error occurred.
