Verify custom flash regions

1. Connect the device to the host computer and select it in the

   Programmer

   ,

   Board

   , and

   Device

   drop-downs.

2. Select the programming file as described in the

   Load programming file

   section.

3. Connect to the device (see

   Connect device

   ).

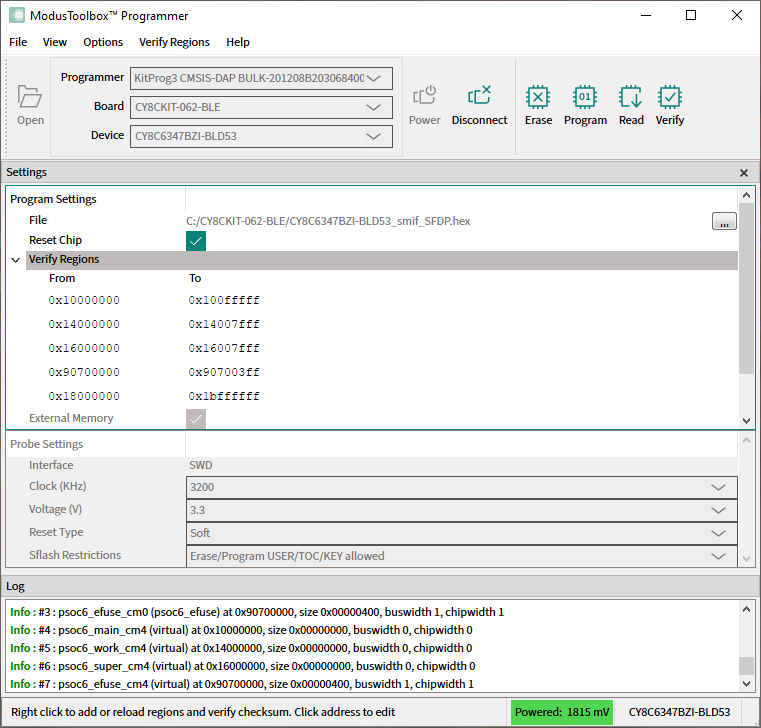

4. Expand Verify Regions option in Program Settings to see the list of flash regions available for verification. By default, only supported by target device regions are displayed:

   • application

   • AUXflash

   • Sflash

   • eFuse

   • QSPI







5. Right-click on

   Verify Regions

   or any region entry to open the context menu.







6. To add a custom flash region, select

   Add Region

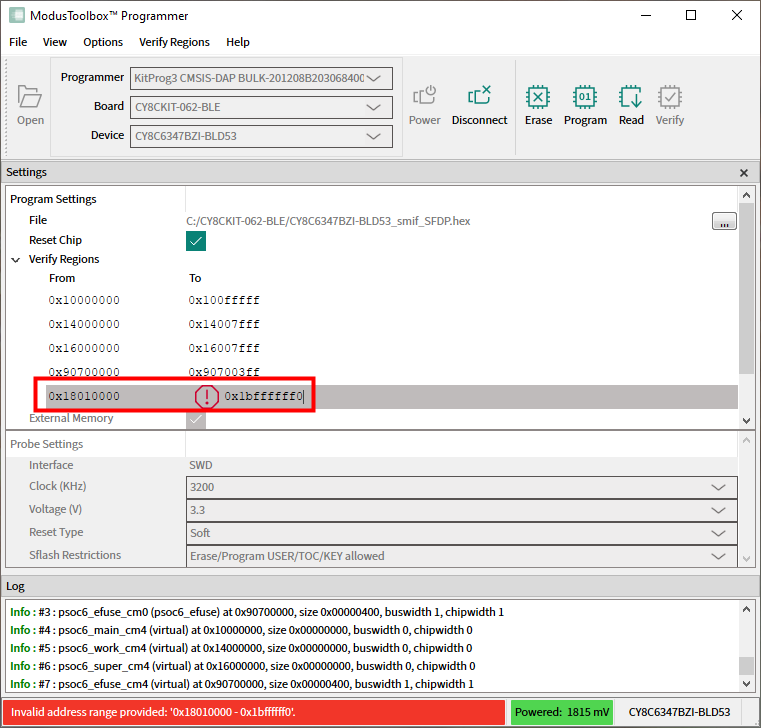

   . Select the added list entry, and enter the correct values for start and end addresses of the region.







7. To remove any region in the list, right-click the desired region entry and select

   Remove Region

   .







8. To revert any previous change, select

   Undo

   .

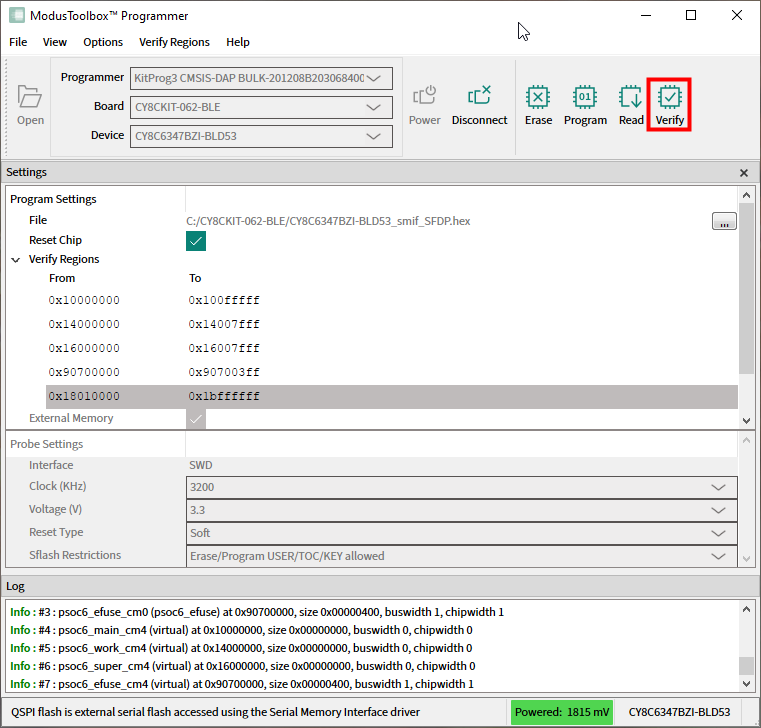

9. When finished with the list of regions, start device verification by clicking the

   Verify

   button on the toolbar.

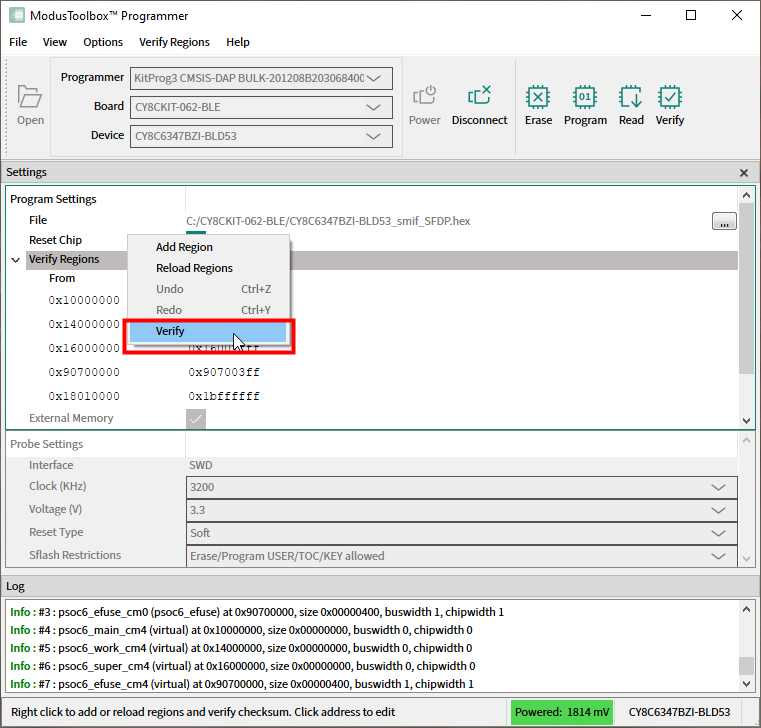

   You can also select

   Verify

   on the context menu.









   ModusToolbox™ Programmer verifies only the regions specified in the

   Verify Regions

   list. Then, a message in the Status Bar indicates that the device was verified successfully or that an error occurred.

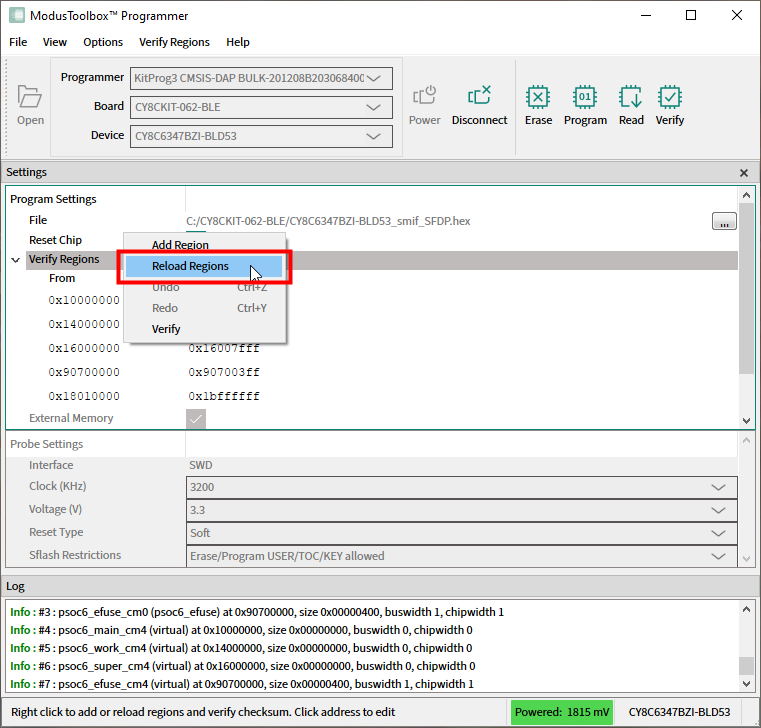

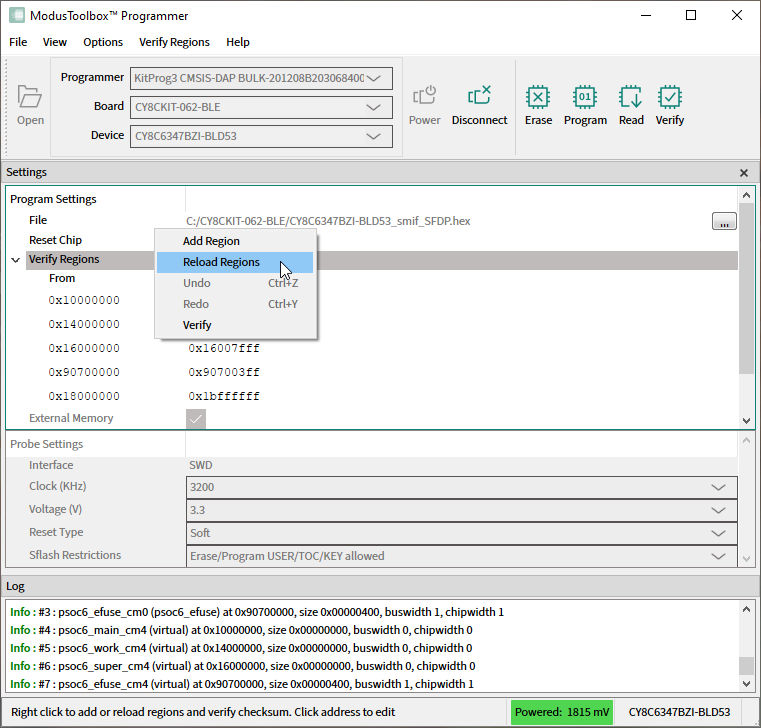

10. To reset the

    Verify Regions

    list to its default state select

    Reload Regions

    from the context menu. This action will remove all custom regions and load default regions corresponding to the flash map.
