Non-Secure CM33 project

Create a
debug_m33ns.ini
file in the project folder, and add the following lines to it:
```
LOAD $L%L NOCODE
g, main
```

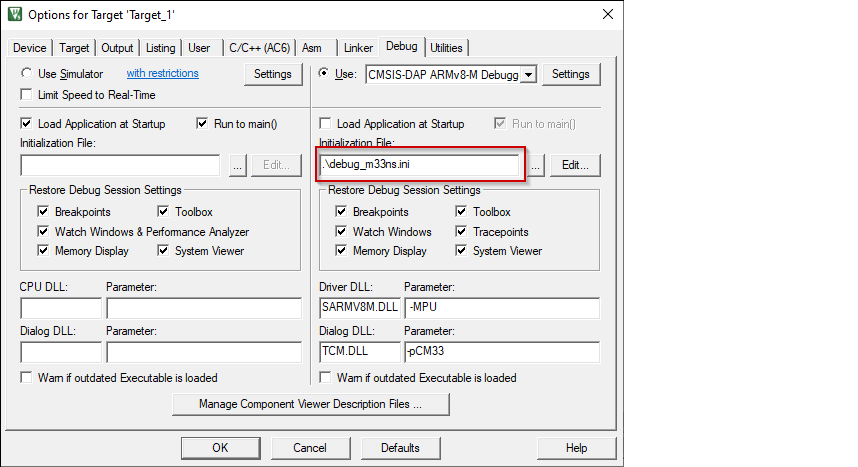

Open the Options dialog. Select the
Debug
tab and select the applicable debug probe (CMSIS-DAP or J-Link). Make sure that the
Load Application at Startup
check box is not selected.
Select the
debug_m33ns.ini
file in the
Initialization File
field.
Click the
Settings
button to configure the target driver.
Select the
Debug
tab, and choose applicable connection options, the configuration settings are different for CMSIS-DAP and J-Link. Refer to the following sections for the applicable options:
CMSIS-DAP/ULINK2 Target Driver Setup

Use the following options:
- Port
  : SW
- Max Clock
  : 1 MHz
- Connect
  : Normal
- Reset after Connect
  : selected
Select desired
Reset
type. For PSOC™ Edge devices, there are two main reset types available: hardware reset using XRES and system reset by SYSRESETREQ.
- For SYSRESETREQ the Vector Catch method is applied. The default reset type is SYSRESETREQ.
- For XRES additional follow-up acquisition methods are available, including Test Mode acquisition, Vector Catch, and Break Point acquisition (an alternative acquire).
The method to use is determined by the
__Acquisition_Type
debug variable. The debug variables are accessible for editing at tab Pack clicking
Edit
button.

By default, the Test Mode acquisition is applied after XRES.
J-Link Target Driver Setup

Use the following options:
- Port
  : SW
- Max Clock
  : 1 MHz
- Connect
  : Normal
- Reset
  : Normal
- Reset after Connect
  : selected

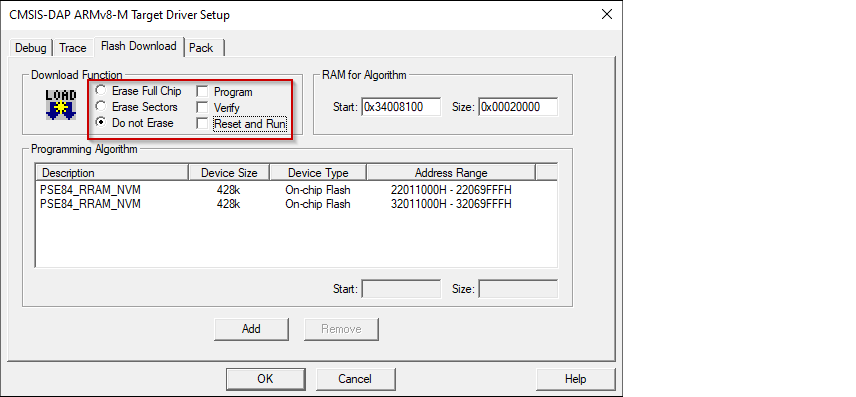

For either driver, switch to the
Flash Download
tab and select
Do not Erase Sectors
radio button, and deselect
Program
,
Verify
, and
Reset and Run
check boxes.
Click
OK
to close the Target Driver Setup dialog.

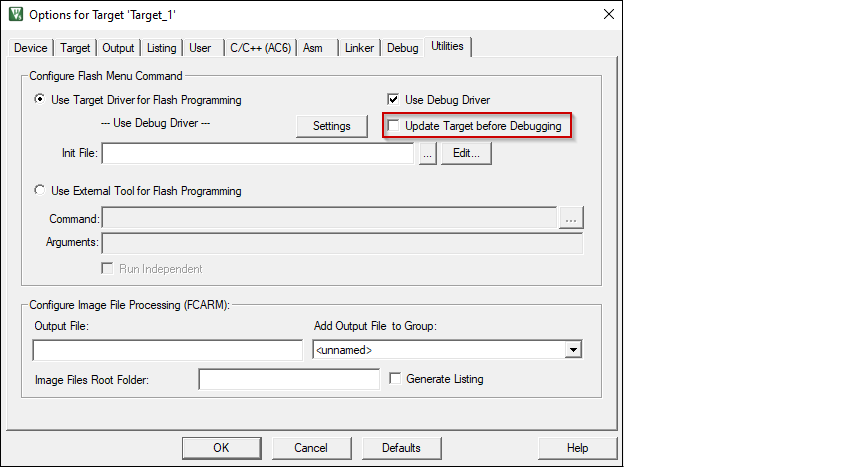

Switch to the
Utilities
tab. Deselect the check box
Update Target before Debugging
.
Close the Options dialog and save the project.
