Configure and build CM0+ (master) core
Select the CM0+ project and open the Options dialog.
On the dialog, select the
Debugger
category in the
Setup
tab, and then select the applicable
Driver
(I-jet, CMSIS-DAP, J-Link):
Switch to the
Images
tab to specify the extra image to be downloaded prior to debugging in order to download images of all projects in one process.
Select the
Download extra image
check box.
Provide a
Path
to the CM4/CM7's
HEX
image.
Enter 0 for
Offset
.
If you provide an OUT file instead of a HEX file, the IAR IDE will fail to halt at the beginning of
main()
due to the main function present in both the CM0+ and CM4/CM7 OUT files.
Note: For triple-core MCUs you should download two extra images.
Switch to the
Build Actions
category.
Click the
New

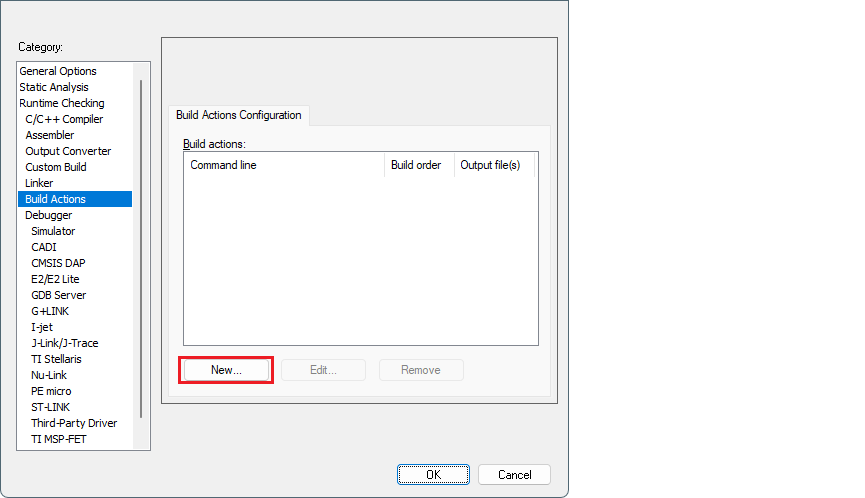

button to open the Build Action dialog.
Paste the following command to build the CM7_0 (or CM4) project in the
Command line
field as single line (edit the file name for your project)
iarbuild.exe "..\proj_cm7_0[project-name].ewp" -make Debug
Select
Build Order
“Run before linking”.
Click
OK
to close the Build Action dialog.
Click the
New
button again.
Paste the following command to build the CM7_1 project (if applicable) in the
Command line
field as single line (edit the file name for your project)
iarbuild.exe "..\proj_cm7_1[project-name].ewp" -make Debug
Select
Build Order
“Run before linking”.
Click
OK
to close the Build Action dialog.

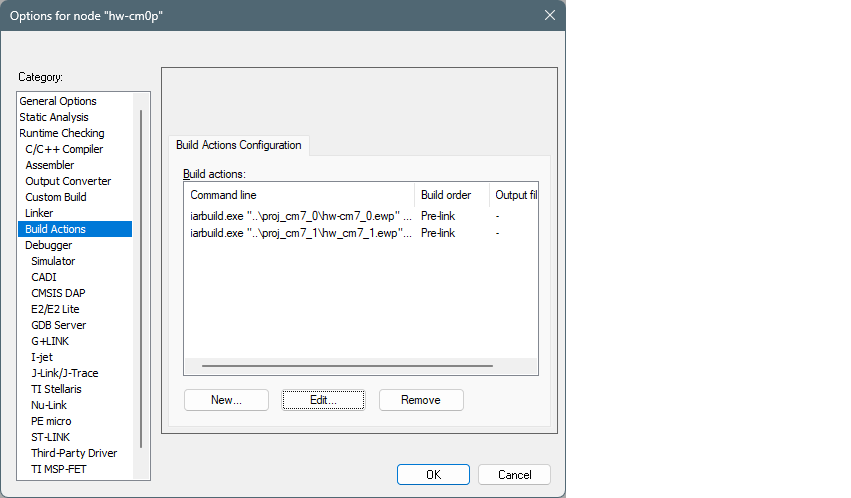

The final list should look similar to this:
Enable hex file generation. In the
Runtime Checking > Output Converter
category:
Select the
Generate additional output
check box.
Ensure
Output format
is set to
Intel Extended hex
.
Click
OK
, and then select
File > Save All
to save all the changes.
Build the project.
