This section covers the ways to get started using VS Code with ModusToolbox™ software

Create new application​

Creating an application includes several steps, as follows:

Step 1: Open Project Creator tool​

The ModusToolbox™ Project Creator tool is used to create applications based on code examples and template applications. The tool is provided in GUI form and as a command line interface. For more details, refer to the

Project Creator user guide

. By default, the tool is installed in the following directory:

<user_home>/ModusToolbox/tools_<version>/project-creator

Open the Project Creator tool as applicable for your operating system. You can launch it from the ModusToolbox™ Dashboard or the VS Code ModusToolbox™ Assistant extension.

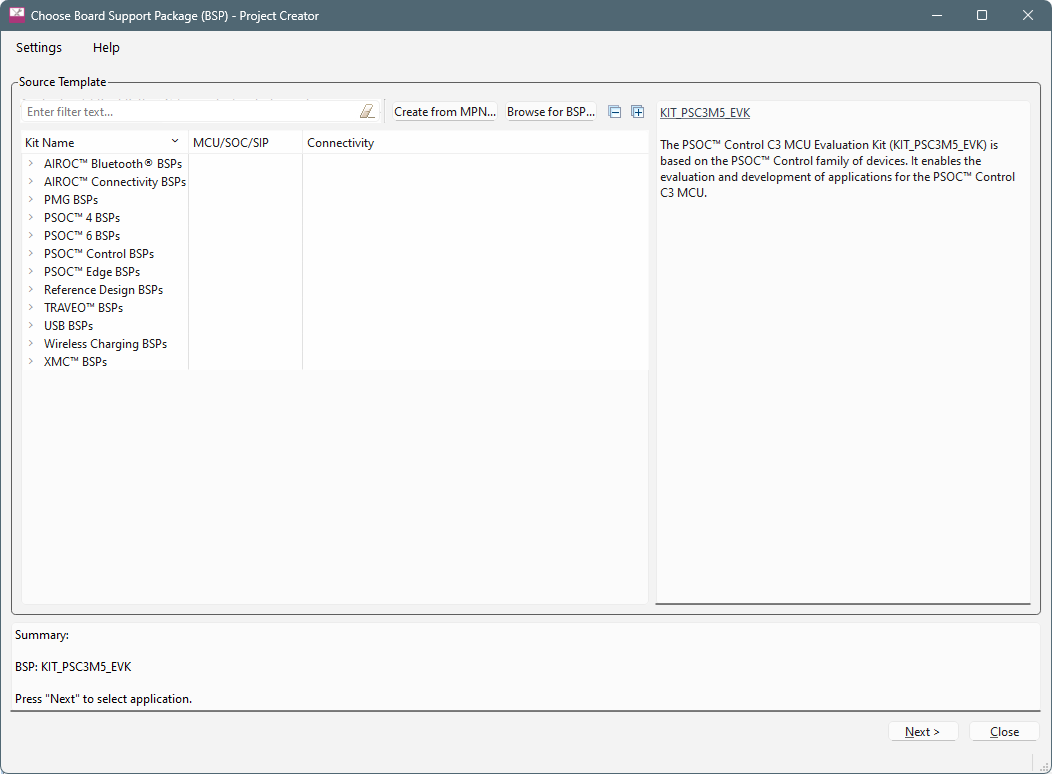

Step 2: Choose Board Support Package (BSP)​

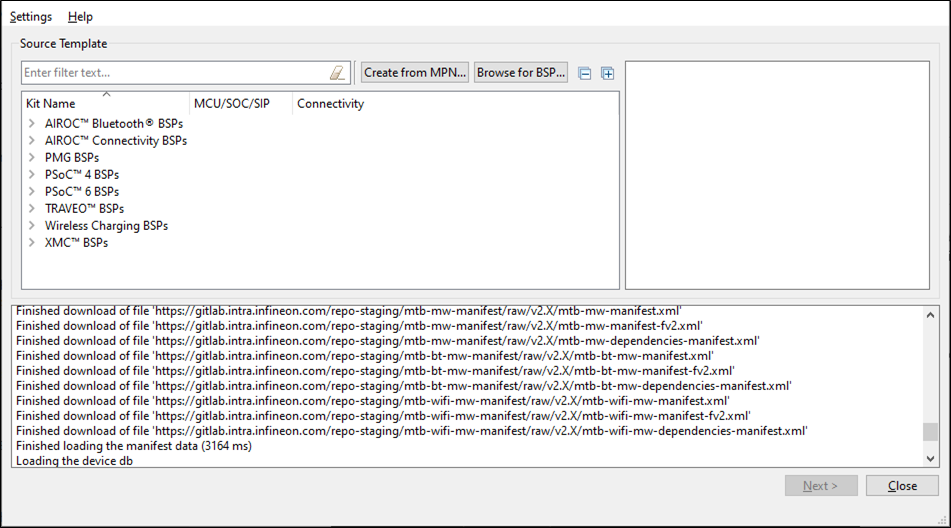

When the Project Creator tool opens, expand one of the BSP categories under

Kit Name

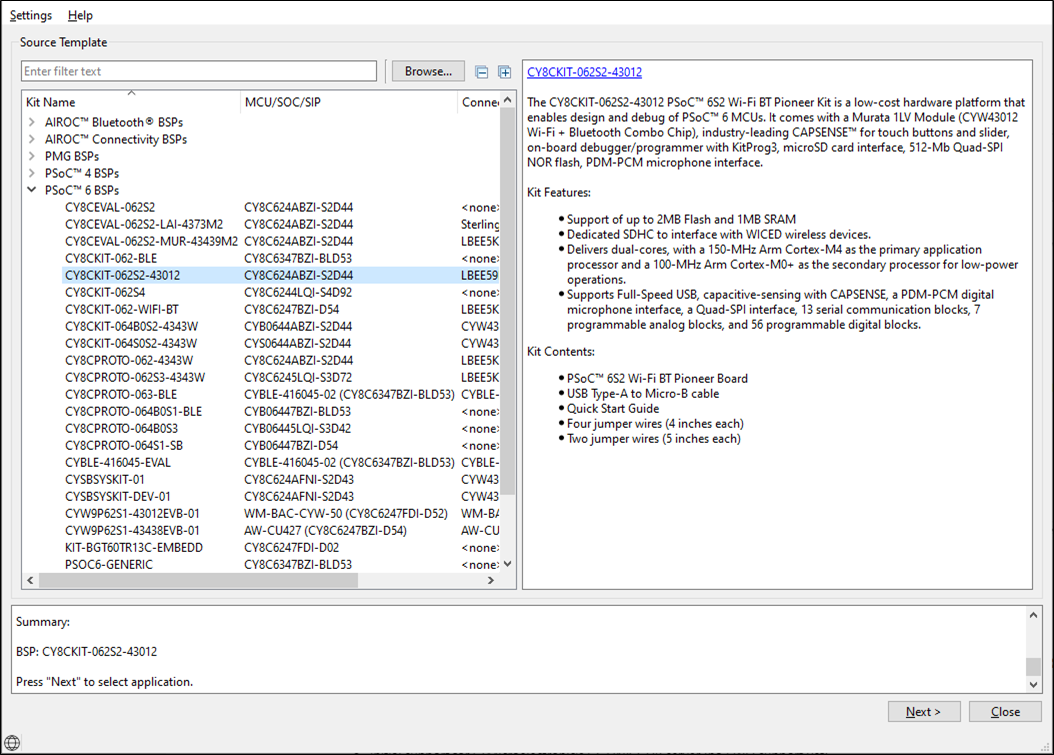

and select an appropriate kit; see the description for it on the right. For this example, select the

CY8CKIT-062S2-43012 kit

. The following image is an example; the list of boards available in this version will reflect the platforms available for development.

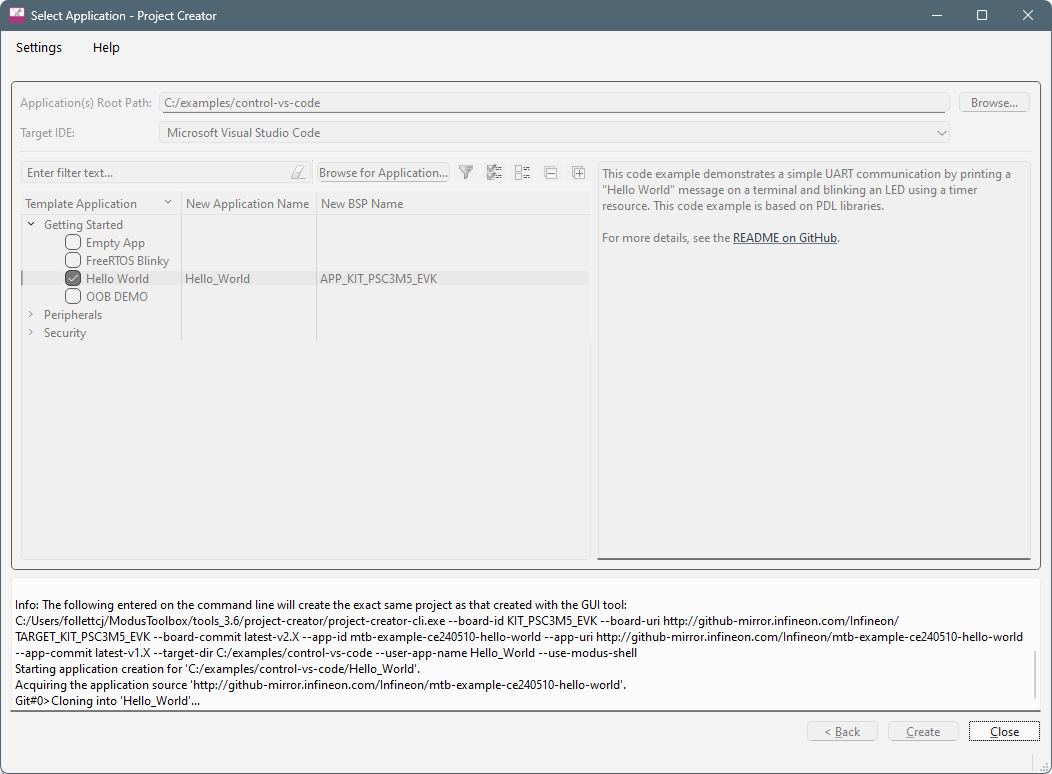

Step 3: Select application​

To select an application:

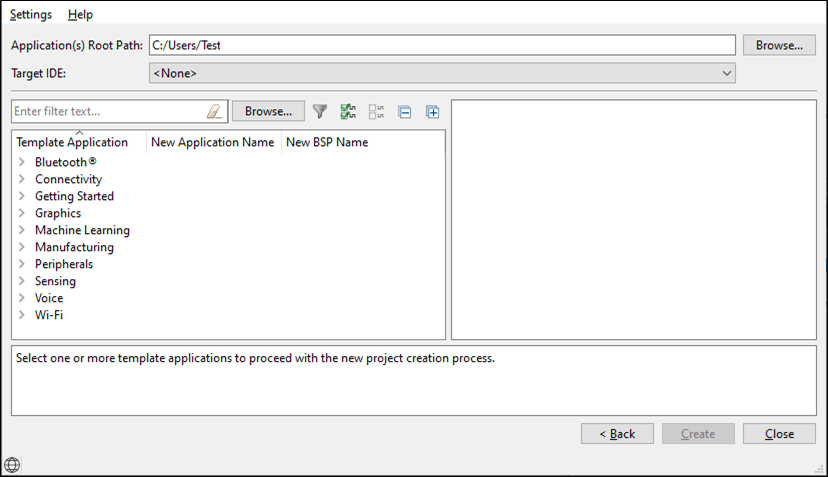

  1. Click

    Next >

    to open the Select Application page.



    This page displays example applications, which demonstrate different features available on the selected BSP. In this case, the CY8CKIT-062S2-43012 provides the PSOC™ 62 MCU and the AIROC™ CYW43012 Wi-Fi & Bluetooth® combo chip. You can create examples for PSOC™ 6 MCU resources such as CAPSENSE™ and QSPI, as well as numerous examples for other capabilities.

  2. Click

    Browse…

    next to

    Application(s) Root Path

    to create or specify a folder where the application will be created.

  3. Pull down the

    Target IDE

    menu and select Microsoft Visual Studio Code.

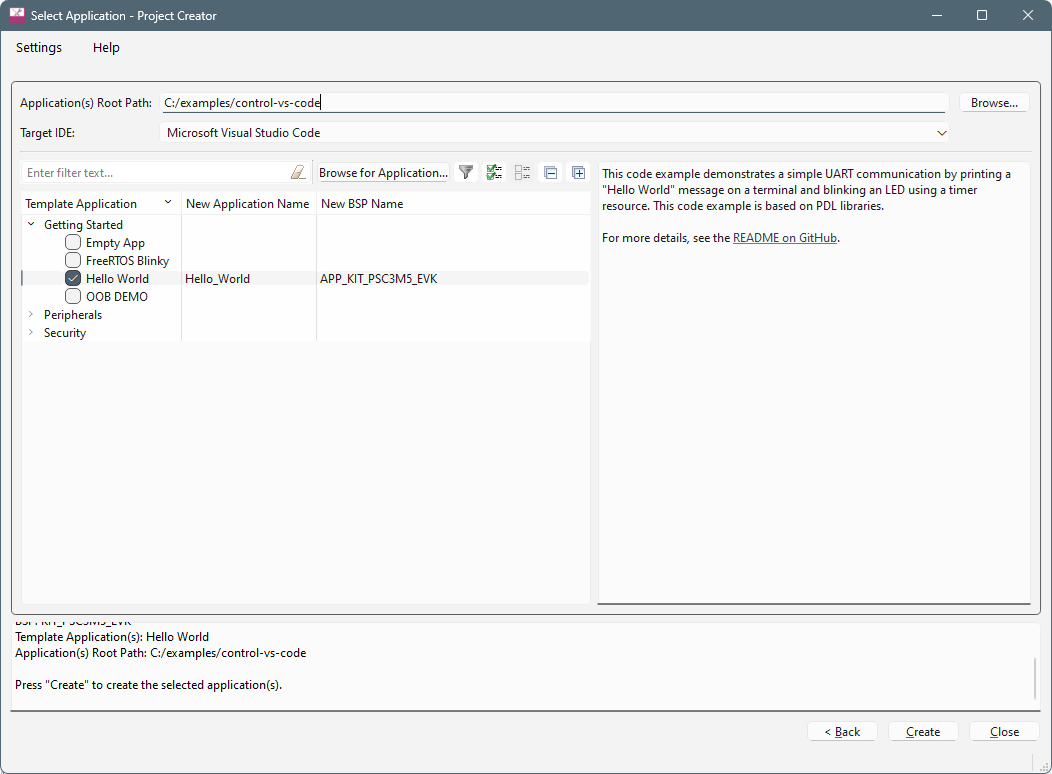

  4. Under the

    Template Application

    column, expand

    Getting Started

    and select

    Hello World

    from the list. This example exercises the PSOC™ 6 MCU to blink an LED.



    Note:

    The actual application names available might vary.

  5. Type a name for your application or leave the default name. Do not use spaces in the application name. Also, do not use common illegal characters, such as:

    * . " ‘ / \ [ ] : ; | = ,

Step 4: Create application​

To create the application:

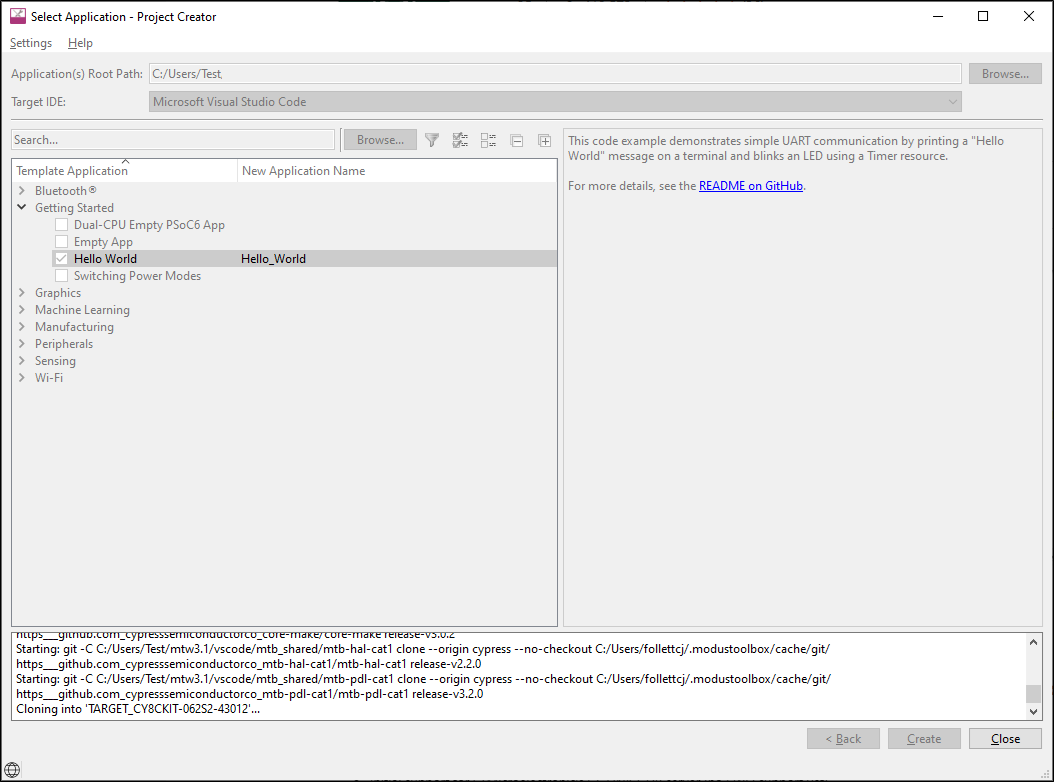

  1. Click

    Create

    .

    The tool displays various messages.

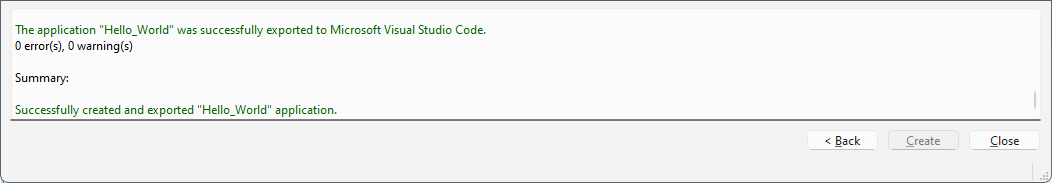

    When the process completes, a message states that the application was created.


    ../figures/image15.png

  2. Click

    Close

    to exit the Project Creator tool.

    Note:

    If you opened the Project Creator tool using the VS Code ModusToolbox Assistant extension, the tool will close automatically upon successful completion.

Export existing application​

If you have a ModusToolbox™ application that was created for another IDE or the command line, you can export that application to be used in VS Code. Open a terminal window in the application directory and run the command

make vscode

.

Open workspace in VS Code​

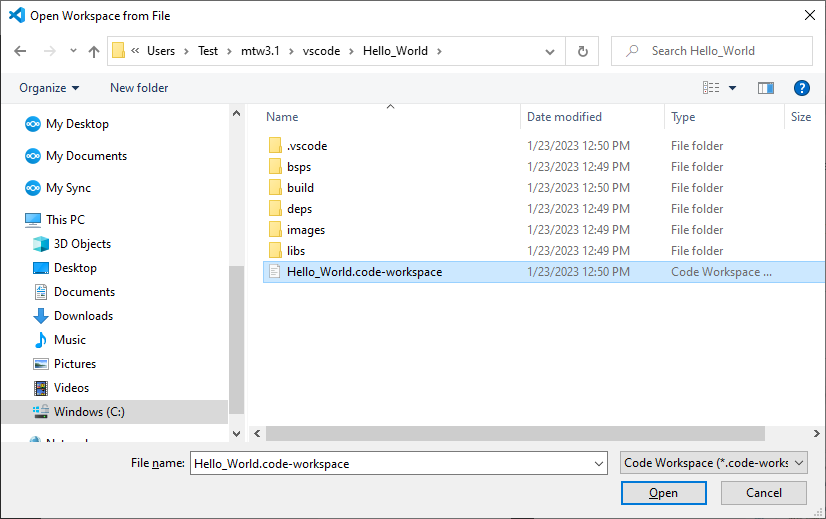

In VS Code, select

File > Open Workspace from File

, navigate to the location of the application that was just created, select the workspace file, and click

Open

.


../figures/image16.png

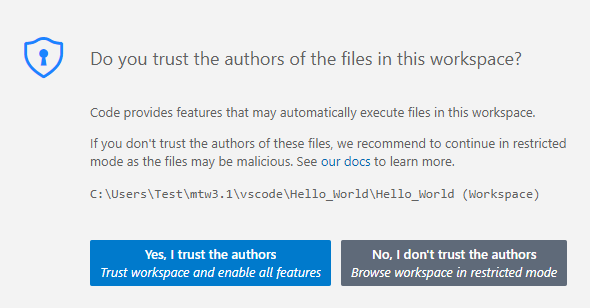

Depending on your settings in VS Code, you may see a message about trusting the authors. If so, click

Yes, I trust the authors

.


../figures/image17.png

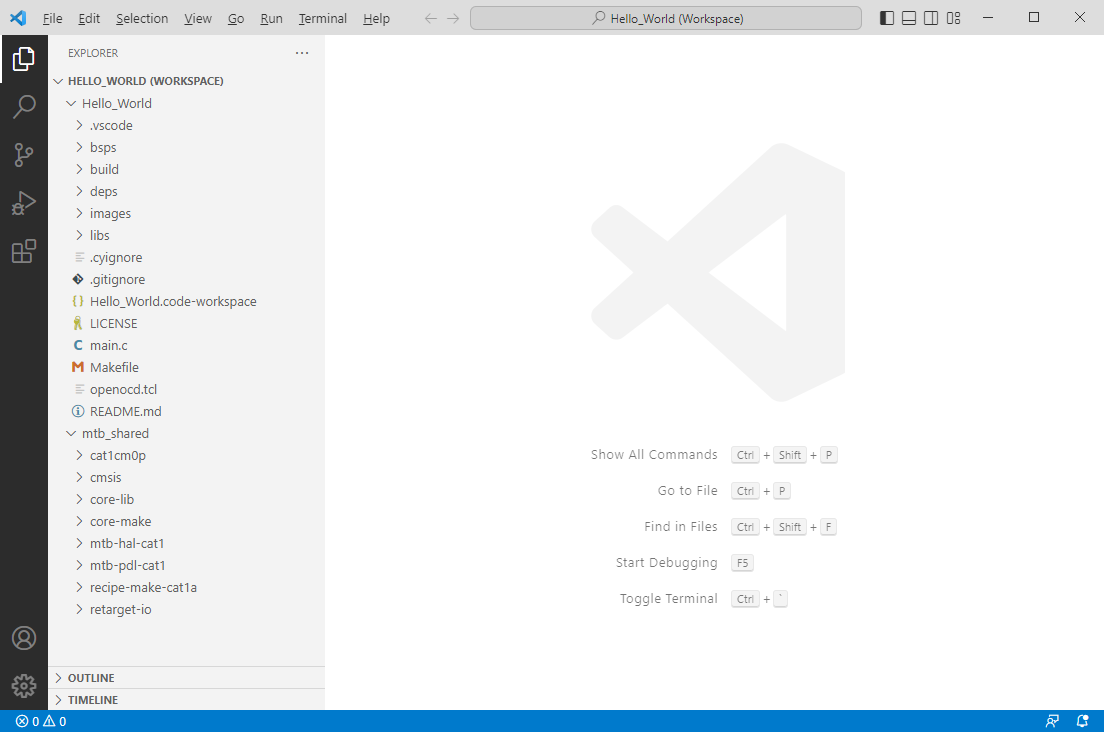

VS Code opens with the Hello_World workspace in the EXPLORER view.


../figures/image18.png
