PSOC™ Control C3 - PSC3P2xD, PSC3M3xD

Arm® Cortex® -M33 32-bit MCU+FPU+DSP, 100 MHz, up to 256 KB Flash/64 KB SRAM, Real-time Control

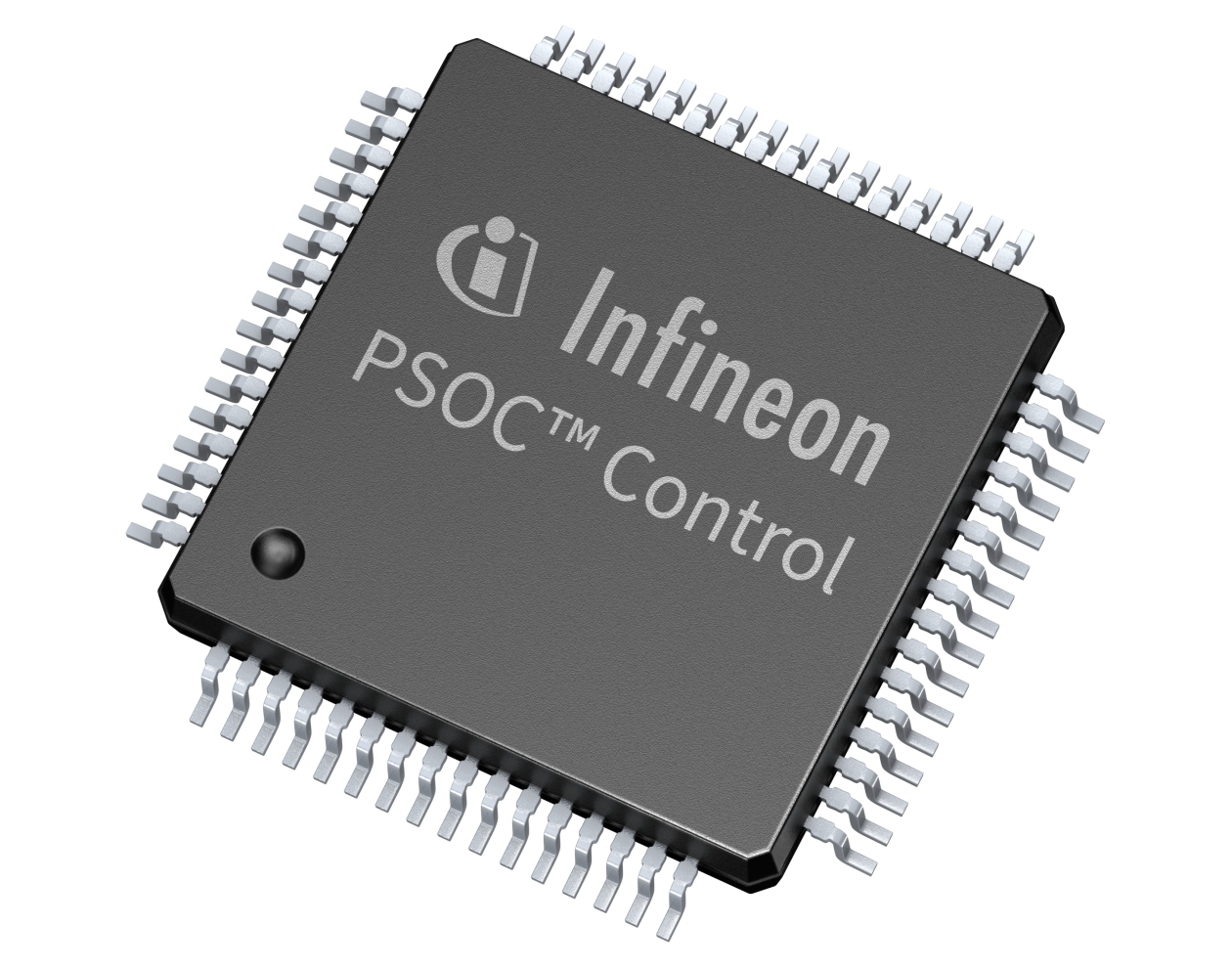

PSOC™ Control package image

Features

• High-performance, low-power 32-bit single-core Arm® Cortex® M33-based microcontroller with digital signal processor (DSP), floating-point unit (FPU), and state-of-the-art security features

• High-performance, programmable analog subsystem (HPPASS):

  • 12-bit, 6-Msps SAR ADC with parallel idle sampling of up to 16 analog channels

  • Five comparators with <10 ns built-in 10-bit DAC and slope generator

• Real-time control peripherals:

  • Coordinate rotation digital computer (CORDIC)

  • 16 x 16-bit and 4 x 32 bit timer/counter pulse-width modulator (TCPWM)

• Enhanced routing flexibility with a combinatorial trigger multiplexing unit

• Communication interfaces: Up to six SCB and two CAN FD (one supporting 8 Mbps)

• 256 KB read-while-write flash with ECC support

• Low-power operation modes down to 300 nA: Sleep, Deep Sleep (three modes) and Hibernate

• Up to 39 GPIOs with programmable drive modes, strengths, and slew rates; up to 22 pins support Smart I/O programmable logic and up to 16 dedicated analog pins

• Security: PSA L2 certified; configurable flash partitioning and protection

• Safety: Class B and SIL 2 compliant safety test libraries are available

• Power supply range: 1.71 V to 3.6 V

• Ambient temperature range: -40°C to 105°C Ta

• Packages: VQFN-48, E-LQFP-48, VQFN-64, E-LQFP-64

Potential applications

• Motor control in power tools, home appliances, industrial drives, light electric vehicles, robotics, and drones

• Digital power control in switched mode power supply (SMPS) and PFC applications for LED lighting, EV chargers, solar inverters, servers, and PC power supplies

• Wide bandgap technologies (e.g., SiC and GaN) based motor control and power conversion applications

Description

The

PSC3P2xD

and

PSC3M3xD

devices are based on the Arm® Cortex®-M33 running up to 100 MHz with DSP and FPU capability. In addition to the CPU subsystem, the devices contain advanced real-time control peripherals, such as high-performance programmable analog subsystem, comparators, advanced timers with high-resolution capability, up to six SCBs and two CAN FDs for communication. The devices support one Active and five low-power modes for managing and reducing the power consumption depending on application requirements.

Introduction

The

PSC3P2xD

and

PSC3M3xD

devices are part of the

PSOC™ Control C3

MCU family designed for real-time control, enhanced sensing, secure, and low-power operations. Some target applications for these microcontrollers are:

• Industrial motor-controllers

• Power-stage converters

• Home appliances

• Automation devices

• Low-power sensors

A detailed block diagram of the MCU is shown in

Figure 1

.

Figure 1.

Functional block diagram

Device identification and revisions

Family ID = 0x118(12‑bit); Si ID range = EE40- EE7F; Major‑minor rev ID = 0x1, 0x1

Detailed features

This device has the following features:

• CPU subsystem

  • Arm® Cortex®-M33 running up to 100 MHz

  • Digital signal processor (DSP), floating-point unit (FPU), memory protection unit (MPU), 16 KB I-cache

  • Two direct memory access (DMA) controllers with 16 channels each

  • Security

    • Platform security architecture level 2 (PSA L2) certified

    • Step-wise authentication of execution images until the control is handed over to the user code

    • Secure execution of code in the execute-only mode for protected routines

    • Image authentication and integrity check

    • TrustZone framework that establishes an isolated device root of trust (RoT) for trust attestation and software management

• Memory

  • On-chip flash with ECC support

    • Up to 256-KB flash with read while write (RWW) capability, 64 KB ROM for boot code, and bootloader functions

    • Built-in device firmware upgrade (DFU) support in boot ROM via serial interface (UART/I2C/SPI)

  • SRAM with ECC support

    • 64 KB full SRAM available in Deep Sleep

      • SRAM data path is protected with a hardware mechanism (ECC) for soft error detection and correction

• Clocking subsystem

  • 8 MHz IMO with Deep Sleep operation offering ±2% accuracy

  • 48 MHz internal high-frequency oscillator (IHO) offering ±1% accuracy

  • 32 kHz internal low frequency oscillator (ILO) offering ±10% accuracy

  • 4 to 35 MHz external crystal oscillator (ECO) support

  • 32.768 kHz external watch crystal oscillator (WCO) usable for real-time clock (RTC)

  • External clock (EXTCLK): Maximum frequency 80 MHz

  • One frequency lock loop (FLL) with 24-100 MHz output range

  • Two digital phase-locked loops, DPLL#0 and DPLL#1, with 25-250 MHz output range

• Low power (1.71 V to 3.6 V) operation

  • Six power modes (Active, Sleep, Deep Sleep, Deep Sleep-RAM, Deep Sleep-OFF, and Hibernate) for fine-grained power management

  • Deep Sleep mode current of 11 µA at 3.3-V external supply using an internal voltage regulator with 64-KB SRAM retention, LPComp, and Deep Sleep SCB

  • Hibernate mode current with RTC and LPComp of up to 1000 nA

• Communication peripherals

  • Serial communication blocks (SCBs)

    • Up to six independent run-time-reconfigurable SCBs; each is software-configurable as I2C, SPI, or UART in master or slave mode

    • One SCB also supports Deep Sleep operation and wake-up from Deep Sleep in I2C slave and SPI slave modes

    • SCB supports single-wire half-duplex mode for UART

  • CAN FD

    • Up to two CAN FD channels with a single instance with operation of up to 8 Mbps

• High-performance, programmable analog subsystem (HPPASS)

  • Analog-to-digital converter (ADC)

    • One 12-bit, 6-Msps SAR ADC

    • Up to 16 dedicated analog pads, connected to up to 16 parallel sample stages

    • Two additional GPIOs can be used as analog inputs

    • Up to 16 sample/hold (S/H) circuits in SAR ADC connected to pins directly or through AMUX

    • One S/H circuit in SAR ADC is internally connected to analog references and a temperature sensor

    • Configurable input gain of 1, 3, 6, and 12 on all 16 S/H circuits

    • Digital comparator at the output to compare the ADC result against programmed boundary values

    • Digital comparator outputs can be connected to timer/counter pulse-width modulator (TCPWM) (low latency between the modules)

  • Analog comparators

    • Five Active comparators without Deep Sleep functionality, each with a 10-bit DAC to generate the comparator reference

    • Each comparator supports an external reference/threshold through pins

    • Active comparator can be used with the built-in DAC in Hysteresis mode

    • Two additional comparators in LPComp are available in Active/Deep Sleep/Hibernate modes

    • Comparator outputs can be brought to pins for control loop applications

    • Comparator outputs can be connected to TCPWM (low latency between the modules)

    • Logical OR of multiple comparator trigger outputs connected as an input trigger to TCPWM via trigger MUX

• Real-time control peripherals

  • Coordinate rotation digital computer (CORDIC)

    • Supports all CORDIC operating modes for solving circular (trigonometric), hyperbolic functions, and integrated independent lookup tables to accelerate calculation

  • Timer/counter pulse-width modulator (TCPWM)

    • Sixteen 16-bit TCPWM channels

    • Four 32-bit TCPWM channels

    • Center-aligned, edge, and pseudorandom modes

    • Comparator-based triggering of kill signals

    • Shadow update of duty, period, dead-time, output signal polarity, and dithering (pseudorandom mode)

    • Multichannel control: In a group of eight TCPWM channels, one channel within a group can trigger another channel

    • Ability to logically combine the outputs of multiple channels through Smart I/O

    • Dedicated output triggers mux in a group to allow flexibility to the PWM channel as a trigger and/or gate signals to the HPPASS

    • Hall sensor interface with autonomous BLDC block commutation support

    • Quadrature encoder interface to decode motor speed and rotor position

• I/O subsystem

  • Programmable GPIO pins

    • Up to 55 functional pins ( 39 digital GPIOs; 2 out of 39 GPIOs can be used for analog inputs + 16 dedicated analog-only inputs)

    • Programmable drive modes, strengths, and slew rates

  • Programmable digital

    • Up to six Smart I/O capable ports ( 22 I/Os, 56 LUTs) enable Boolean operations on I/O signals

• Cryptography

  • Cryptography accelerator

    • Hardware acceleration for symmetric (AES-128) and asymmetric cryptographic algorithms (RSA and elliptic curve cryptography (ECC)) supported by vector unit (VU) and hash functions (SHA-256)

    • True random number generator (TRNG) function

Chip-level functional description

Power

The device offers multiple features for managing and reducing power draw. Multiple power modes include Active, Sleep, Deep Sleep, and Hibernate. Deep Sleep has three variations based on retention of SRAM.

The power control block provides assurance that voltage levels meet the requirements of the respective modes. It can:

• Delay mode entry (for example, at power-on reset (POR)) until voltage levels are as required for proper functioning

• Detect operation below safe power supply levels:

  • Generates interrupts for low-voltage detection (LVD)

  • Generates reset for brownout detection (BOD)

The device operates using a single regulated VDDD supply within the range of 1.71 V to 3.6 V. In addition, there is an optional VBACKUP supply that can be used, which has a range of 1.4 V to 3.6 V. A linear regulator powers the core logic at four voltage levels:

0.9 V, 1.0 V, and 1.1 V

. Voltage level switching is implemented by writing to the power control registers. The voltage for the core logic can be set based on the application's performance and power requirements; (see

Power modes

). With clock gating at peripheral and bus levels, this permits fine-grained optimization of energy usage.

Typically, the backup domain requires an input voltage of 1.4 V to 3.6 V, which can be provided by connecting a backup battery or a super capacitor to the VBACKUP pin. The internal backup switch automatically selects between VDDD and VBACKUP (when VDDD is no longer available) for powering the backup domain peripherals like RTC, WCO, ILO, and Backup registers. Some I/O cells are powered from the VBACKUP supply before the internal backup switch. If the application does not require a dedicated backup source, VBACKUP can be connected to VDDD externally to ensure that the I/O cells powered by VBACKUP are functional.

The device has multiple VDDIO pins that are used to power the I/O cells except the backup domain I/O cells. VDDIO can either be connected to the same supply as VDDD or an independent supply voltage within the valid operating range. This provides more flexibility in terms of choosing the logic level for the port pins powered using different VDDIO supplies. The VDDIO supply can be switched off if the port I/Os are not used. Switching off the VDDIO supply is only allowed in Active or Deep Sleep mode. VDDIO should not be switched off when the device is in Hibernate mode. Refer to the

Pins

section for information about the VBACKUP or VDDIO supply used for powering the port I/O cells.

Power connections

The following power system diagrams show typical connections for the power pins for all the supported packages. In these diagrams, the package pin is shown with the pin name, for example, "VDD;

5

".

There is no dependency on power supply sequencing.

Figure 2.

LQFP-64/QFN-64 package power connection

Figure 3.

LQFP-48/QFN-48 package power connections

Power domains

The device has independent power domains, allowing the domain power to be enabled/disabled depending on the power mode.

A diagram of the power connections and routing is shown in Figure 4:

Figure 4.

Power distribution and domains

Power modes

The device can operate in five power modes. These power modes are intended to minimize the average power consumption in an application.

Power modes supported are:

• Active/Sleep: All peripherals are powered. The CPU is either active and executing the code or can be put in sleep (clock gated). Any interrupt can wake up the CPU within one CPU clock cycle to resume operation. In Active/Sleep mode, the core voltage can be set to any of the four values. This impacts both power consumption and maximum clock frequency for CPU and peripherals. The following power profiles are supported in Active/Sleep mode:

  • ULP (Ultra Low Power): 0.9 V core voltage with 50 MHz CPU frequency

  • MF (Medium Frequency): 1.0 V core voltage with 70 MHz CPU frequency

  • LP (Low Power): 1.1 V core voltage with 100 MHz CPU frequency

• Deep Sleep:

  The CPU is in retention mode. RAM content is also retained. Only Deep Sleep capable peripherals can wake up the system. Once awake, the operation resumes

• Deep Sleep-RAM: The CPU is turned off. 64 KB of SRAM is retained for a warm boot after wake-up. Only Deep Sleep-capable peripherals are operational if enabled and are capable of waking up the system

• Deep Sleep-OFF

  Same as Deep Sleep RAM except RAM is also turned off. The wake-up action is reset or cold boot

• Hibernate:

  All peripherals except LPComp and backup domain peripherals such as RTC is turned off. All clocks except the backup domain clock and all internal regulators are turned off. This results in asynchronous operation of the LPComp. The system is reset when it exits the Hibernate mode

Power mode transitions

The device supports Arm® standard power modes; see the

Power modes

section for details.

Table 1

lists the parameters for supported power modes:

Table 1.

Power mode support

	Active/Sleep	Deep Sleep	Deep Sleep-RAM	Deep Sleep-OFF	Hibernate	Off
Parameters
Wake source1)	Any interrupt	DS peripherals	DS peripherals	DS peripherals	RTC/HIB peripherals	Power on
Wake action	Resume	Resume	Warm boot	Reset/cold boot	Reset	Reset
Wake time	One CPU cycle	<20 µs	Deep Sleep + warm boot	Deep Sleep + cold boot	POR + cold boot < 1 ms
Resources
ECO	On/Off	Off	Off	Off	Off	Off
IHO	On	Off	Off	Off	Off	Off
IMO	On	On/Off	Off	Off	Off	Off
ILO	On/Off	On/Off	On/Off	On/Off	On/Off	Off
WCO	On/Off	On/Off	On/Off	On/Off	On/Off	Off
CPU	On/Sleep	Retention	Off	Off	Off	Off
SRAM	On	On	On/Off	Off	Off	Off

Power block support

Table 2

shows the available operational states for the major blocks in this device. Note that the operational states possible in low-power modes are generally limited in functionality and parametric performance as compared to their capabilities in the Active power mode. Additionally, blocks that do not support low-power modes such as Deep Sleep and Hibernate cannot wake up the CPU from these power modes. See

Power modes

for details.

Table 2.

Block power modes

Block	Power mode
	Active	Sleep	Deep Sleep	Hibernate	Backup
CPUSS
CPU	Y	N	N	N	N
NVIC	Y	Y	N	N	N
WIC	Y	Y	Y	Y	N
FLASH	Y	Y	N	N	N
SRAM	Y	Y	Y	N	N
DMA	Y	Y	N	N	N
Programmable digital
SMART I/O	Y	Y	Y	N	N
Fixed function digital
TCPWM	Y	Y	N	N	N
SCB	Y	Y	Y 2	N	N
CAN FD	Y	Y	N	N	N
Special function
CORDIC	Y	N	N	N	N
Analog
HPPASS (SAR, CSG)	Y	Y	N	N	N
LPComp	Y	Y	Y 3	Y	N
I/O
GPIO	Y	Y	Y	Y 4	N
Backup
RTC	Y	Y	Y	Y	Y
Registers	Y	Y	Y	Y	Y

Security

Both secure and nonsecure debug accesses are supported. In nonsecure access, the debugger cannot access the areas marked as “secure”. In the secure case, the device can be “locked” such that it may not be acquired for test or debug.

Certificate management assures that appropriate accesses are provided for secure debug and RMA transition.

This device is fully compliant with Arm® TrustZone at hardware and software levels. An extra layer of security is implemented with the help of Infineon-proprietary protection units.

PSA L2-certified parts support PSA-compliant cryptographic services, key management, and secure storage services (For PSA L2 parts, see

Ordering information

).

Security features

• Arm® platform security architecture compliant with PSA level 2 precertification, depending on part number (see Ordering information)

• Protected firmware feature support depending on part number (see Ordering information)

• Hardware crypto accelerator with comprehensive support of cryptographic algorithms

• Secure isolation of processing environments via Arm® TrustZone

• Infineon proprietary MPU, MPC, and PPCs for memory and peripheral access control

• Off-the-shelf secure isolation using Trusted Firmware‑M (TF‑M) and mbedTLS crypto acceleration package

Security architecture overview

Cortex® ‑M33:

• Arm® TrustZone enabled core with two processing environments: secure (SPE) and nonsecure (NSPE)

• Infineon proprietary protection units for memory and peripheral protection

• Integrated mbedTLS crypto acceleration package that supports software and hardware cryptography services

• Infineon-provided Trusted firmware‑M (TF‑M) implemented in SPE — its services are leveraged by Cortex® ‑M33 NSPE and SPE

Figure 5.

Security architecture diagram

Block functional description

CPU

• Arm® Cortex®-M33 with digital signal processor (DSP)

• Floating-point unit (FPU)

• The TrustZone framework establishes an isolated device root of trust for trusted attestation and software management

• Memory protection unit (MPU): Supports eight regions each for secure and nonsecure MPUs

• Secure attribution unit (SAU): It defines the security status of up to eight memory regions

• Debug facilities including trace (embedded trace macrocell (ETM), no embedded trace buffer (ETB))

• 16 KB I-cache for flash and ROM access

A separate 4-channel interprocessor communication (IPC) module (two IRQs) offers seamless support for semaphores and mailbox structures within secure and nonsecure execution.

The subsystems include an interrupt controller such as a nested vectored interrupt controller (NVIC). It also consists of a wake-up interrupt controller (WIC), which can wake the processor up from system Deep Sleep mode, allowing the main processor power and clocks to be turned-off when the chip is in system Deep Sleep mode.

The CPU subsystem also includes debug interfaces and supports both SWD and JTAG. The chip also supports boundary scan, which is required for testing on a PCB, and a separate test access port (TAP) controller is provided for controlling boundary scan functions.

DMA

The Cortex®-M33 CPU includes two DMA controllers that can be used to transfer data to and from memory, and peripheral registers. This allows for autonomous transfer of data from peripherals such as ADC to memory, or allows deterministic control of peripherals such as the PWM.

The DMA controllers are bus masters in their respective domains. Each DMA has 16 channels. It has a single transfer engine for all channels that arbitrates for bus master access. The DMA uses the 32‑bit AHB bus that shares the same clock as the CPU.

Cryptography support (CryptoLite)

One instance of the cryptographic acceleration block that implements hardware support for true random number generator (TRNG), SHA-256, AES-128, and vector unit (VU), is provided.

Memory

The device features multiple nonvolatile and volatile memory types. The CPU and other bus masters can access any memory block. The number of wait states depends on the access path.

Flash

The device offer up to 256 KB of user-programmable flash. The flash supports single and dual bank modes. Dual bank mode supports the RWW feature, which allows reading from one sector while programming the other. In addition, the flash module has ECC support.

SFlash

The device has 32-KB supervisory flash (SFlash) memory. SFlash stores the device trim settings, secure key hashes, and FLASH_BOOT firmware. Device trim settings are used to initialize hardware resources for proper operation. Secure key hashes are used to authenticate Infineon and OEM assets and images. SFlash cannot be used to store user data.

ROM

All

PSOC™ Control C3

devices offer 64 KB of ROM. The ROM contains boot and configuration routines and authentication checks. After a reset event, the boot code in the supervisory ROM (SROM) checks the Reset Cause register to determine whether a Hibernate event was the cause of the reset to provide the fastest possible transition to execute the user code. This minimizes the wake-up time from Hibernate mode as opposed to a power on reset (POR) or an external reset (XRES) event.

RAM

The device has

64 KB

SRAM memory, with provision of retaining memory during Deep Sleep power mode. SRAM has ECC support for soft error detection and correction.

eFuse

The device contains 1024 one-time programmable (OTP) eFuse bits. These are reserved for system use such as device life-cycle management, trim, and hash values. eFuse bits cannot be directly programmed by the user.

Each fuse is individually programmed; once programmed (or “blown”), its state cannot be changed. Blowing a fuse transitions it from the default state of ‘0’ to ‘1’. To program an eFuse, VDDIO0 must be at 2.5 V ±10%.

Because blowing an eFuse is an irreversible process, any process requiring eFuse programming is recommended only in mass production under controlled factory conditions by Infineon provided provisioning tools.

Clock system

The

PSOC™ Control C3

clock system is responsible for providing clocks to all subsystems requiring clocks and switching between different clock sources without glitching. In addition, the clock system ensures that no metastable conditions occur.

Furthermore, a clock supervision (CSV) circuit is implemented for each clk_hf domain. The CSV circuit detects a stopped clock or an abnormal frequency of the monitored clock. There are clock counters for both the monitored clock and the reference clock. Parameters for each counter define the frequency of the reference clock and the upper and lower limit for the frequency of the monitored clock.

If the dedicated frequency range comparator detects a stopped clock or a clock outside the specified frequency range, an abnormal state is signaled. Depending on the register settings and how the monitored clock is used on the device, either a reset or an interrupt is generated.

The following clock sources are provided:

• Internal main oscillator (IMO): 8 MHz ±2%, fast wake-up, low jitter

• Internal high-speed oscillator (IHO): 48 MHz ±1%

• Internal low-speed oscillator (ILO): 32 kHz ±10%, also as a wake-up source for the RTC

• External crystal oscillators (ECO and WCO)

  • External crystal oscillator (ECO): 4 MHz - 36 MHz

  • External watch crystal oscillator (WCO): 32.768 kHz

• External clock (EXTCLK): Maximum frequency 80 MHz

• One frequency lock loop (FLL) with 24 -100 MHz output range

• Two digital phase-locked loops, DPLL#0 and DPLL#1, with 25 - 250 MHz output range

Note: FLL input clock should to be at least 2.5 times less than the FLL current controlled oscillator frequency. Therefore, with FLL output divider enabled, IHO can be used as FLL input clock source only when FLL output frequency is ≥ 60 MHz.

Internal main oscillator (IMO)

Internal main oscillator (IMO) operates at a fixed 8 MHz frequency. Its tolerance is ±2%. A high-speed clock can be derived using the IMO plus a DPLL. It has fast wake-up and low jitter.

Internal high-frequency oscillator (IHO)

Internal high-frequency oscillator (IHO) operates at a fixed 48 MHz frequency. Its tolerance is ±1%. A high speed-clock can be derived using the IHO plus DPLL.

Internal low-frequency oscillator (ILO)

The ILO is a low-power oscillator with a typical current of 0.3 µA and frequency of 32 kHz with ±10% accuracy. The ILO can be used as wake-up source for real-time clock (RTC)

External crystal oscillator (ECO)

External crystal oscillator (ECO) can use a crystal with frequency ranging from 4 MHz to 36 MHz for generating a high-precision clock. This option can be used when the precision offered by internal oscillators is not sufficient.

Watch crystal oscillator (WCO)

WCO uses an external 32.768 kHz crystal for applications requiring higher-precision real-time clock (RTC) functionality. WCO clock can be routed directly to the RTC for higher precision and to avoid any glitches due to internal switching of clock sources.

Watchdog timer (WDT)

One watchdog timer (WDT) and one multi-counter watchdog timer (MCWDT) are provided. The WDT is implemented in the clock block running from the ILO or the WCO. This allows the watchdog operation during Deep Sleep and can generate a watchdog reset if not serviced before the timeout. The watchdog reset is recorded in the Reset Cause register.

Real-time clock (RTC)

The device includes a real-time clock (RTC). The RTC has the following features:

• Can operate in both 12-hour format with AM/PM flag and 24-hour format

• Automatic leap year correction

• The alarm feature allows the RTC to generate an interrupt, which may be used to wake up the system from Sleep, Deep Sleep, and Hibernate power modes

Reset

The device can be reset from various sources, including a software reset. Reset events are asynchronous and ensure reversion to a known state. The reset cause (WDT, MCWDT, Faults, Debug, Software, and Clock Supervision) is recorded in a register, which is sticky through reset, and allows the software to determine the cause of the reset. An XRES pin is available for external reset.

High-performance programmable analog subsystem (HPPASS)

12-bit SAR analog-to-digital converter (ADC)

The device has one 12-bit SAR ADC with up to 16 parallel sampling channels. The ADC supports multiple S/H, which enables synchronous sampling on several channels.

All analog channels support individually selectable input gains of 1, 3, 6, and 12. In addition, all channels can be oversampled and averaged in hardware. The SAR ADC supports up to

6-Msps

rate for a repeated conversion of the same channel. The ADC can operate with a voltage range between 1.71 V to 3.6 V (VDDA). The AREF_EXT pin is used to provide the ADC reference voltage. It can be connected to a precision reference voltage generator (1.71 V to VDDA) or connected externally to the AVCC pin.

The idle sampling feature allows ADC triggers to start directly from hold operation. All 16 samplers can be triggered simultaneously for simultaneous idle sampling (same hold instance) and sequential conversion (useful for multimotor, multiphase motor control and digital power applications). ADC has a sequencer with eight groups that can be programmed according to the user application. Each group defines a set of inputs that will be simultaneously sampled when that group is triggered by hardware or firmware. Each group supports the control and conversion of up to 16 samplers, and the sample time can be configured for each group. It supports two-level priority conversion. Each group can be configured to high or low-priority conversion.

The ADC has a set of built-in post processing features for the converted digital data such as averaging (result accumulation), pseudo differential mode, 2x FIR with 16 taps, 8x limit detect, 8x channel gain and offset correction coefficients with support for signed or unsigned result format. These features help in reducing CPU utilization for analog data acquisition and post processing.

The ADC can be connected to an internal temperature sensor, the value of which can be read and digitized. This is useful for calibration and other temperature-dependent functions. For more information, see

Temperature sensor

. The ADC is not available in the Deep Sleep and Hibernate power modes.

Comparator and slope generator (CSG)

The device has five analog comparators that operate in Active mode. The comparator output is synchronized to avoid metastability. The comparator output can be routed to a GPIO or TCPWM (through TriggerMux), for example, as an input to kill the PWM signal if an overvoltage or over current condition is detected.

The five Active mode comparators can use the built-in 10-bit DACs or another analog input to define the programmable threshold for the comparator. The output of the DAC serves as a reference for the comparator. The DAC output is connected to the internal S/H circuit of the ADC through AMUX with other inputs. The ADC can measure the output of the comparator.

The comparator DAC values can be updated by either direct or buffered writes. This can be used for slope generation or LUT waveform generation.

The comparators can also be used in Hysteresis mode. Hysteresis voltage is configurable by the user and the comparator provides a run-time configuration for it.

Temperature sensor

The

PSOC™ Control C3

devices contain a diode-based temperature sensor. It can be disabled to save power. The temperature sensor is connected to the SAR ADC through AMUX as one of the measurement channels. The precision of the temperature sensor output is ±5°C over the full operating temperature range.

Low-power comparator (LPComp)

The device provides two low-power comparators that can operate in all power modes. This allows other analog system resources to be disabled while retaining the ability to monitor external voltage levels during Deep Sleep and Hibernate modes. The comparator outputs are normally synchronized to avoid metastability unless operating in an asynchronous power mode (Hibernate) where the wake-up circuit is activated by a comparator-switch event.

Fixed function digital

Timer/counter pulse-width modulator (TCPWM)

The TCPWM consists of the following:

• A counter with user-programmable period/duty length PWM outputs

• A capture register to record the count value at the time of an event (which may be an I/O event)

• A period register to either stop or auto reload the counter when its count is equal to the period registers

• Compare registers to generate compare value signals that are used as PWM duty cycle outputs

The block provides accurate and complementary outputs with a programmable offset between them to allow its use as dead-band programmable complementary PWM outputs. It also has a kill input to force the outputs to a predetermined state; this can be used in motor drive and power conversion systems, for example, when an overcurrent state is indicated and the PWMs driving the FETs must be shut off immediately with no time for software intervention.

TCPWM has a Motion Interface (MOTIF) block that can be used in Hall sensor, Quadrature encoder or standalone Multichannel mode.

Serial communication block (SCB)

The

PSOC™ Control C3

has up to six SCB modules, which can be software-configured for I2C, UART, or SPI interface as master or slave when in Active mode. One of the SCB modules can operate in Deep Sleep mode with an external clock with the functionality limited to I2C slave or SPI slave. Every protocol can use a 256-byte-deep FIFO per SCB module. All SCB blocks support DMA transfers.

Note: SCB4 and SCB5 not available in 48-pin devices.

Inter-integrated circuit (I2C)

The hardware I2C block implements a full multi-master and multi-slave interface and is capable of multi-master arbitration. This block can operate at speeds of up to 1 Mbps (Fast Mode Plus) and has flexible buffering options to reduce the interrupt overhead and latency for the CPU. It also supports EZI2C, which creates a mailbox address range in the memory of the

PSOC™ Control C3

. This effectively reduces the I2C communication overheads for reading from and writing to an array in the memory. The FIFO significantly reduces the need for clock stretching caused by the CPU not having read the data on time.

Universal asynchronous transmitter receiver (UART)

The full-feature UART can operate at up to 8 Mbps. It supports LIN (automotive single-wire interface), IrDA (Infrared interface), and SmartCard (ISO7816) protocols. In addition, it supports the 9-bit multiprocessor mode, which allows addressing of peripherals connected over common RX and TX lines. Common UART functions such as hardware flow control, parity, break detection, and frame error are supported. The SCB can be configured in half-duplex UART mode for single-wire communication.

Serial peripheral interface (SPI)

The SPI mode supports full Motorola SPI, Texas Instruments synchronous serial port (SSP) (essentially adds a start pulse used to synchronize SPI codecs), and National Semiconductor Microwire (a half-duplex form of SPI). The SPI block also supports an EZ-SPI mode in which data interchange is reduced to reading and writing an array in memory.

Controller area network flexible data-rate (CAN FD)

CAN FD features two channels including timestamp support and a 4-KB message RAM per channel. This block supports data rates of up to 8 Mbps.

Trigger multiplexer (Trigger MUX)

Trigger MUX is used to connect trigger and input/output signals between peripherals as well as GPIO pins. It can be used to connect several TCPWM counter channels to achieve multichannel support. It also provides the extended signal routing functionality such as routing any TCPWM counter PWM outputs to any GPIO pin through peri.tr_io_output[n] alternate function.

The trigger connections between TCPWM and HPPASS are also connected through the Trigger MUX. Any TCPWM counter can be configured to trigger any S/H circuit of the ADC inside HPPASS.

The digital comparator outputs from the ADC and analog comparator outputs are also connected to the TCPWM from the HPPASS through the Trigger MUX. It is possible to route any digital/analog comparator output to any TCPWM group and any counter inside the group.

The connections between the TCPWM and HPPASS are optimized for low latency.

Coordinate rotation digital computer (CORDIC)

CORDIC is used to precisely compute the transforms used in motor speed and position estimation as well as reference plane transforms commonly used in Field-Oriented Control (FOC). It calculates trigonometric functions in hardware to offload the processing from the main CPU. Supported algorithms include sine, cosine, arctan, sinh, cosh, arctanh, phase, sqrt, and park transform.

General-purpose input/output (GPIO) ports

The

PSOC™ Control C3

provides up to

39

GPIO pads with two pad-power-supply domains. Two of the GPIOs are multiplexed with analog inputs, making it possible to have a maximum of 18 analog input connections. The GPIO block has the following features:

• Eight drive modes including strong push-pull, resistive pull-up and pull-down, open-drain and open-source, input-only, and disabled

• Analog signal input capability (I/O buffers disabled; signal passed through switches)

• Input threshold select (CMOS or LVTTL)

• Individual control of input and output disables

• Hold mode for latching the previous state (used for retaining the I/O state in Deep Sleep and Hibernate modes)

• Selectable slew rates for dV/dt-related noise control

The pins are organized in logical entities called "ports". During power-on and reset, the blocks are forced to the disabled state so they do not crowbar any inputs and/or cause excess turn-on current. A multiplexing network known as a "high-speed I/O matrix" (HSIOM) is used to multiplex between various signals that may connect to an I/O pin.

Data Output and Pin State registers store the values to be driven on the pins and the pins' states.

Every I/O pin can generate an interrupt if so enabled, and each I/O port has an interrupt request (IRQ) and interrupt service routine (ISR) vector associated with it.

The I/O ports will retain their state during Hibernate mode. If the operation is restored using Reset, then the pins will go to the High-Z state; if the operation is restored by using the wake-up pin, the pin drivers will retain their previously frozen state until the firmware chooses to change it.

Simultaneous output switching in high-current mode requires attention to line termination and decoupling capacitor size to control switching transient voltages.

Smart I/O (Programmable I/O)

Each smart I/O block contains eight programmable LUT arrays out of which up to six LUT arrays are associated with a particular I/O port that allows integration of board-level glue logic and Boolean functions at the pins. The remaining free LUT arrays can be connected to the I/O LUT array outputs for creating more complex logic functions. It is similar to programmable array logic (PAL) or small programmable logic devices (PLDs). The smart I/O block is interposed between the port pins and the HSIOM (responsible for multiplexing signals from on-chip peripherals to and from the port pins) and the digital signal interconnect (DSI) signals. It is possible to bypass the smart I/O block in order not to impact the propagation delay for critical paths from the DSI to the port pins.

Figure 6.

Smart I/O block diagram

The structure is interposed between the GPIO port and the HSIOM.

Device firmware update (DFU)

The boot ROM supports firmware updates using a serial port. DFU functionality is disabled by default. It needs to be enabled in the OEM policy before use. More details regarding how to enable and use DFU can be found in

AN240106 - Getting started with PSOC™ Control C3 security

.

Table 3.

DFU mode selection

P2.3 pin state	P2.2 pin state	DFU mode
High-Z	High-Z	Disable
High-Z	X	Disable
X	High-Z	Disable
Low	Low	Disable
Low	High	I2C
High	Low	UART
High	High	SPI

X = Don't care

Use pull-up or pull-down resistors of 1 kΩ or less connected to VDDIO_0 or VSS to set these pins to logic high or low. Pins can be left floating for High-Z state. When the device is in DFU mode, the following pins are used for serial communication:

Table 4.

DFU serial communication pins

Pin	I2C	UART	SPI
P8.0			CS
P8.1	SCL	RX	MOSI
P8.2			MISO
P8.3	SDA	TX	CLK

The following parameters are used for the DFU communication protocols:

• I2C: Speed = 400 kHz, Mode = Slave, 7-bit address, address = 0x35

• UART: Baud = 115200, Bits = 8, Stop Bits = 1, RTS/CTS = No, Parity = None

• SPI: Mode = Slave, Motorola 00 (MSB first, CPHA = 0, CPOL = 0), Speed <= 12 Mbps

Note: Boot ROM DFU support is available only in 80-pin and 64-pin devices.

Serial wire JTAG debug port/Embedded trace macrocell

Serial wire JTAG debug port (SWJ-DP)

The

PSOC™ Control C3

MCU embeds the ARM® serial wire JTAG debug port (SWJ-DP) which supports 2-wire Serial Wire Debug (SWD) and 4-wire or 5-wire Joint Test Action Group (JTAG) interface. SWD interface is enabled by default after power on and JTAG interface is in disabled state. JTAG can be enabled in 4-wire or 5-wire mode by updating the OEM policy. For more information on updating the OEM policy, refer to the

AN240106 - Getting started with PSOC™ Control C3 security

.

Embedded trace macrocell (ETM)

Arm® embedded trace macrocell is supported by the

PSOC™ Control C3

. It allows reconstruction of program execution using high speed compressed data transmitted on the ETM pins. ETM interface includes a clock (trace.clock) pin and up to four data (trace.data0 to trace.data3) pins.

Pins

GPIO ports and analog inputs are powered by VDDx pins as follows:

• P0: VBACKUP

• P1, P2, P4, P5, P6, P7: VDDIO0

• P8, P9: VDDIO1

• AN_A, AN_B: AVDD

The number of GPIOs is limited in some packages. The E-LQFP-64/VQNF-64 package has 39 GPIOs and 16 dedicated analog inputs; the E-LQFP-48/VQFN-48 package has 29 GPIOs and 10 dedicated analog inputs. For detailed information on the supported packages, see

Package information

section.

Table 5.

Packages and pin information

Pin	Capability	Packages
		E-LQFP-64/VQFN-64	E-LQFP-48/VQFN-48
VDDD		5	4
VDDA		54	41
VDDIO_0_0		16	12
VDDIO_0_1		32	24
VDDIO_1		64	48
VDDQ		5	4
VCCD		6	5
VSS		GND PAD	GND PAD
VAREF_EXT		53	40
VBACKUP		7	6
AN_A0	AD	41	31
AN_A1	AD	42	32
AN_A2	AD	43	33
AN_A3	AD	44	34
AN_A4	AD	45	35
AN_A5	AD	46	36
AN_A6	AD	47
AN_A7	AD	48
AN_B0	AD	49
AN_B1	AD	50	37
AN_B2	AD	51	38
AN_B3	AD	52	39
AN_B4	AM	55	42
AN_B5	AM	56
AN_B6	AM	57
AN_B7	AM	58
XRES		4	3
P0.0	S	8	7
P0.1	S	9
P1.0	S	10
P1.1	S	11
P1.2	S	12	8
P1.3	S	13	9
P2.0	S	14	10
P2.1	S	15	11
P2.2	S	17	13
P2.3	S	18	14
P4.0		19	15
P4.1		20	16
P4.2		21	17
P4.3		22	18
P4.4		23	19
P4.5		24	20
P4.6		25	21
P4.7		26	22
P5.0	S	27
P5.1	S	28
P5.2	S	29
P5.3	S	30
P6.0	S	31	23
P6.1	S	33	25
P6.2	S	34	26
P6.3	S	35	27
P7.0		36	28
P7.1		37	29
P7.2		38	30
P7.3		39
P7.4		40
P8.0	AM, AC	59	43
P8.1	AM	60	44
P8.2	AM, AC	61	45
P8.3	AM	62	46
P9.0	S	63	47
P9.1	S	1
P9.2	S	2	1
P9.3	S	3	2

Table 6.

Pin capability abbreviations

Abbreviation	Capability
AD	Dedicated analog pin directly connected to sampler
AM	Dedicated analog pin/analog capable GPIO pin connected to sampler through MUX
AC	Analog capable GPIO pin (LPComp input)
S	Smart IO capable GPIO

Note:

1. All GPIO pins are PWM capable. Any TCPWM channel line or line_compl output can be routed to any GPIO pin

2. Number of LUTs is not impacted by the number of Smart IO capable GPIO pins available in lower pin count packages

Figure 7.

Device pinout for E-LQFP-64 package (top view)

Figure 8.

Device pinout for VQFN-64 package (top view)

Figure 9.

Device pinout for E-LQFP-48 package (top view)

Figure 10.

Device pinout for VQFN-48 package (top view)

GPIO alternate functions tables

Table 7.

GPIO alternate functions and HSIOM routes

GPIO	Alternate functions and HSIOM routes
P0.0	wco_out	fixed	smartio0.io0	fixed
	ext_clk	ACT #8	peri.tr_io_input[0]:0	ACT #14
	peri.tr_io_output[0]:0	ACT #15
P0.1	wco_in	fixed	smartio0.io1	fixed
	peri.tr_io_input[1]:0	ACT #14	peri.tr_io_output[1]:0	ACT #15
P1.0	eco_in	fixed	smartio1.io0	fixed
	peri.tr_io_output[58]:1	ACT #1	peri.tr_io_output[70]:1	ACT #2
	scb1.uart.cts	ACT #4	scb1.spi.select0	ACT #6
	peri.tr_io_input[2]:0	ACT #14	peri.tr_io_output[2]:0	ACT #15
P1.1	eco_out	fixed	smartio1.io1	fixed
	peri.tr_io_output[59]:1	ACT #1	peri.tr_io_output[71]:1	ACT #2
	scb1.uart.rts	ACT #4	scb1.spi.clk	ACT #6
	peri.tr_io_input[3]:0	ACT #14	peri.tr_io_output[3]:0	ACT #15
P1.2	smartio1.io2	fixed	peri.tr_io_output[60]:1	ACT #1
	peri.tr_io_output[72]:1	ACT #2	scb1.uart.rx	ACT #4
	scb1.spi.mosi	ACT #6	scb1.i2c.sda	ACT #7
	peri.tr_io_input[4]:0	ACT #14	peri.tr_io_output[4]:0	ACT #15
	swj.swclk/tclk	DS #5
P1.3	smartio1.io3	fixed	peri.tr_io_output[61]:1	ACT #1
	peri.tr_io_output[73]:1	ACT #2	scb1.uart.tx	ACT #4
	scb1.spi.miso	ACT #6	scb1.i2c.scl	ACT #7
	peri.tr_io_input[5]:0	ACT #14	peri.tr_io_output[5]:0	ACT #15
	swj.swdio/tms	DS #5
P2.0	hibernate_wakeup	fixed	smartio2.io0	fixed
	peri.tr_io_output[58]:0	ACT #1	tcpwm0.g2.cnt6+	ACT #2
	scb1.uart.cts	ACT #4	scb1.spi.select0	ACT #6
	peri.tr_io_input[6]:0	ACT #14	peri.tr_io_output[6]:0	ACT #15
	swj.tdi	DS #5
P2.1	smartio2.io1	fixed	peri.tr_io_output[59]:0	ACT #1
	tcpwm0.g2.cnt6-	ACT #2	cal_wave	DS #0
	scb1.uart.rts	ACT #4	scb1.spi.clk	ACT #6
	scb1.i2c.scl	ACT #7	peri.tr_io_input[7]:0	ACT #14
	peri.tr_io_output[7]:0	ACT #15	swj.tdo	DS #5
P2.2	smartio2.io2	fixed	peri.tr_io_output[60]:0	ACT #1
	tcpwm0.g2.cnt7+	ACT #2	scb1.uart.rx	ACT #4
	scb1.spi.mosi	ACT #6	scb1.i2c.sda	ACT #7
	ext_clk	ACT #8	peri.tr_io_input[8]:0	ACT #14
	peri.tr_io_output[8]:0	ACT #15
P2.3	smartio2.io3	fixed	peri.tr_io_output[61]:0	ACT #1
	tcpwm0.g2.cnt7-	ACT #2	scb1.uart.tx	ACT #4
	scb1.spi.miso	ACT #6	peri.tr_io_input[9]:0	ACT #14
	peri.tr_io_output[9]:0	ACT #15
P4.0	peri.tr_io_output[50]:0	ACT #0	tcpwm0.g1.cnt4+	ACT #1
	scb4.uart.cts	ACT #4	scb4.spi.mosi	ACT #6
	peri.tr_io_input[14]:0	ACT #14	peri.tr_io_output[14]:0	ACT #15
P4.1	peri.tr_io_output[51]:0	ACT #0	tcpwm0.g1.cnt4-	ACT #1
	scb4.uart.rts	ACT #4	scb4.spi.miso	ACT #6
	scb4.i2c.sda	ACT #7	peri.tr_io_input[15]:0	ACT #14
	peri.tr_io_output[15]:0	ACT #15
P4.2	peri.tr_io_output[52]:0	ACT #0	tcpwm0.g1.cnt5+	ACT #1
	scb4.uart.rx	ACT #4	scb4.spi.clk	ACT #6
	scb4.i2c.scl	ACT #7	peri.tr_io_input[16]:0	ACT #14
	peri.tr_io_output[16]:0	ACT #15
P4.3	peri.tr_io_output[53]:0	ACT #0	tcpwm0.g1.cnt5-	ACT #1
	scb4.uart.tx	ACT #4	scb4.spi.select0	ACT #6
	peri.tr_io_input[17]:0	ACT #14	peri.tr_io_output[17]:0	ACT #15
P4.4	peri.tr_io_output[54]:0	ACT #0	tcpwm0.g1.cnt6+	ACT #1
	peri.tr_io_input[18]:0	ACT #14	peri.tr_io_output[18]:0	ACT #15
P4.5	peri.tr_io_output[55]:0	ACT #0	tcpwm0.g1.cnt6-	ACT #1
	peri.tr_io_input[19]:0	ACT #14	peri.tr_io_output[19]:0	ACT #15
P4.6	peri.tr_io_output[56]:0	ACT #0	tcpwm0.g1.cnt7+	ACT #1
	peri.tr_io_input[20]:0	ACT #14	peri.tr_io_output[20]:0	ACT #15
P4.7	peri.tr_io_output[57]:0	ACT #0	tcpwm0.g1.cnt7-	ACT #1
	peri.tr_io_input[21]:0	ACT #14	peri.tr_io_output[21]:0	ACT #15
P5.0	smartio5.io0	fixed	peri.tr_io_output[62]:1	ACT #1
	scb3.uart.cts	ACT #4	scb3.spi.mosi	ACT #6
	scb3.i2c.sda	ACT #7	peri.tr_io_input[22]:0	ACT #14
	peri.tr_io_output[22]:0	ACT #15
P5.1	smartio5.io1	fixed	peri.tr_io_output[63]:1	ACT #1
	scb3.uart.rts	ACT #4	scb3.spi.miso	ACT #6
	scb3.i2c.scl	ACT #7	peri.tr_io_input[23]:0	ACT #14
	peri.tr_io_output[23]:0	ACT #15
P5.2	smartio5.io2	fixed	peri.tr_io_output[64]:1	ACT #1
	can1.rx	ACT #3	scb3.uart.rx	ACT #4
	scb3.spi.clk	ACT #6	peri.tr_io_input[24]:0	ACT #14
	peri.tr_io_output[24]:0	ACT #15
P5.3	smartio5.io3	fixed	peri.tr_io_output[65]:1	ACT #1
	can1.tx	ACT #3	scb3.uart.tx	ACT #4
	scb3.spi.select0	ACT #6	peri.tr_io_input[25]:0	ACT #14
	peri.tr_io_output[25]:0	ACT #15
P6.0	smartio6.io0	fixed	tcpwm0.g1.cnt4+	ACT #1
	peri.tr_io_output[66]:0	ACT #2	scb3.uart.cts	ACT #4
	scb3.spi.mosi	ACT #6	scb3.i2c.sda	ACT #7
	peri.tr_io_input[26]:0	ACT #14	peri.tr_io_output[26]:0	ACT #15
P6.1	smartio6.io1	fixed	tcpwm0.g1.cnt4-	ACT #1
	peri.tr_io_output[67]:0	ACT #2	scb3.uart.rts	ACT #4
	scb3.spi.miso	ACT #6	scb3.i2c.scl	ACT #7
	peri.tr_io_input[27]:0	ACT #14	peri.tr_io_output[27]:0	ACT #15
P6.2	smartio6.io2	fixed	tcpwm0.g1.cnt5+	ACT #1
	peri.tr_io_output[68]:0	ACT #2	can1.rx	ACT #3
	scb3.uart.rx	ACT #4	scb3.spi.clk	ACT #6
	peri.tr_io_input[28]:0	ACT #14	peri.tr_io_output[28]:0	ACT #15
P6.3	smartio6.io3	fixed	tcpwm0.g1.cnt5-	ACT #1
	peri.tr_io_output[69]:0	ACT #2	can1.tx	ACT #3
	scb3.uart.tx	ACT #4	scb3.spi.select0	ACT #6
	cpuss.fault[0]:1	ACT #9	peri.tr_io_input[29]:0	ACT #14
	peri.tr_io_output[29]:0	ACT #15
P7.0	peri.tr_io_output[50]:1	ACT #0	tcpwm0.g1.cnt6+	ACT #1
	peri.tr_io_output[70]:0	ACT #2	scb2.uart.cts	ACT #4
	scb2.spi.clk	ACT #5	scb2.i2c.scl	ACT #7
	trace.data0	ACT #9	hppass.gpio_out0	ACT #12
	peri.tr_io_input[30]:0	ACT #14	peri.tr_io_output[30]:0	ACT #15
P7.1	peri.tr_io_output[51]:1	ACT #0	tcpwm0.g1.cnt6-	ACT #1
	peri.tr_io_output[71]:0	ACT #2	scb2.uart.tx	ACT #4
	scb2.spi.mosi	ACT #5	scb2.i2c.sda	ACT #7
	trace.data1	ACT #9	hppass.gpio_out1	ACT #12
	peri.tr_io_input[31]:0	ACT #14	peri.tr_io_output[31]:0	ACT #15
P7.2	peri.tr_io_output[52]:1	ACT #0	tcpwm0.g1.cnt7+	ACT #1
	peri.tr_io_output[72]:0	ACT #2	scb2.uart.rx	ACT #4
	scb2.spi.miso	ACT #5	trace.data2	ACT #9
	hppass.gpio_out2	ACT #12	peri.tr_io_input[32]:0	ACT #14
	peri.tr_io_output[32]:0	ACT #15
P7.3	peri.tr_io_output[53]:1	ACT #0	tcpwm0.g1.cnt7-	ACT #1
	peri.tr_io_output[73]:0	ACT #2	scb2.uart.rts	ACT #4
	scb2.spi.select0	ACT #5	trace.data3	ACT #9
	hppass.gpio_out3	ACT #12	peri.tr_io_input[33]:0	ACT #14
	peri.tr_io_output[33]:0	ACT #15
P7.4	peri.tr_io_output[54]:1	ACT #0	scb2.spi.select1	ACT #5
	trace.clock	ACT #9	hppass.gpio_out4	ACT #12
	peri.tr_io_input[34]:0	ACT #14	peri.tr_io_output[34]:0	ACT #15
P8.0	lpcomp0.in+	fixed	hppass.gpio_00_aio	fixed
	peri.tr_io_output[62]:2	ACT #1	tcpwm0.g2.cnt4+	ACT #2
	scb5.uart.cts	ACT #4	scb5.spi.select0	ACT #5
	trace.data0	ACT #9	hppass.gpio_out0	ACT #12
	peri.tr_io_input[38]:0	ACT #14	peri.tr_io_output[38]:0	ACT #15
	swj.trstn	DS #5
P8.1	lpcomp0.in-	fixed	peri.tr_io_output[63]:2	ACT #1
	tcpwm0.g2.cnt4-	ACT #2	scb5.uart.rx	ACT #4
	scb5.spi.mosi	ACT #5	scb5.i2c.scl	ACT #7
	trace.data1	ACT #9	hppass.gpio_out1	ACT #12
	peri.tr_io_input[39]:0	ACT #14	peri.tr_io_output[39]:0	ACT #15
P8.2	lpcomp1.in+	fixed	hppass.gpio_01_aio	fixed
	peri.tr_io_output[64]:2	ACT #1	tcpwm0.g2.cnt5+	ACT #2
	can0.rx	ACT #3	scb5.uart.rts	ACT #4
	scb5.spi.miso	ACT #5	trace.data2	ACT #9
	hppass.gpio_out2	ACT #12	peri.tr_io_input[40]:0	ACT #14
	peri.tr_io_output[40]:0	ACT #15
P8.3	lpcomp1.in-	fixed	peri.tr_io_output[65]:2	ACT #1
	tcpwm0.g2.cnt5-	ACT #2	can0.tx	ACT #3
	scb5.uart.tx	ACT #4	scb5.spi.clk	ACT #5
	scb5.i2c.sda	ACT #7	trace.data3	ACT #9
	hppass.gpio_out3	ACT #12	peri.tr_io_input[41]:0	ACT #14
	peri.tr_io_output[41]:0	ACT #15
P9.0	hibernate_wakeup	fixed	smartio9.io0	fixed
	tcpwm0.g2.cnt6+	ACT #2	scb0.spi.clk	DS #1
	scb0.uart.cts	DS #2	scb0.i2c.scl	DS #3
	peri.tr_io_input[44]:0	ACT #14	peri.tr_io_output[44]:0	ACT #15
P9.1	smartio9.io1	fixed	tcpwm0.g2.cnt6-	ACT #2
	scb0.spi.select0	DS #1	scb0.uart.rts	DS #2
	peri.tr_io_input[45]:0	ACT #14	peri.tr_io_output[45]:0	ACT #15
P9.2	smartio9.io2	fixed	tcpwm0.g2.cnt7+	ACT #2
	can0.rx	ACT #3	scb0.spi.mosi	DS #1
	scb0.uart.rx	DS #2	scb0.i2c.sda	DS #3
	trace.clock	ACT #9	hppass.gpio_out4	ACT #12
	peri.tr_io_input[46]:0	ACT #14	peri.tr_io_output[46]:0	ACT #15
P9.3	smartio9.io3	fixed	tcpwm0.g2.cnt7-	ACT #2
	can0.tx	ACT #3	scb0.spi.miso	DS #1
	scb0.uart.tx	DS #2	cpuss.clk_fm_pump	ACT #8
	cpuss.fault[0]:0	ACT #9	peri.tr_io_input[47]:0	ACT #14
	peri.tr_io_output[47]:0	ACT #15

Table 8.

GPIO alternate functions

Function	GPIOs	Function	GPIOs	Function	GPIOs
cal_wave	P2.1	can0.rx	P8.2, P9.2	can0.tx	P8.3, P9.3
can1.rx	P5.2, P6.2	can1.tx	P5.3, P6.3	cpuss.clk_fm_pump	P9.3
cpuss.fault[0]:0	P9.3	cpuss.fault[0]:1	P6.3	eco_in	P1.0
eco_out	P1.1	ext_clk	P0.0, P2.2	hibernate_wakeup	P2.0, P9.0
hppass.gpio_00_aio	P8.0	hppass.gpio_01_aio	P8.2	hppass.gpio_out0	P7.0, P8.0
hppass.gpio_out1	P7.1, P8.1	hppass.gpio_out2	P7.2, P8.2	hppass.gpio_out3	P7.3, P8.3
hppass.gpio_out4	P7.4, P9.2	lpcomp0.in+	P8.0	lpcomp0.in-	P8.1
lpcomp1.in+	P8.2	lpcomp1.in-	P8.3	peri.tr_io_input[0]:0	P0.0
peri.tr_io_input[14]:0	P4.0	peri.tr_io_input[15]:0	P4.1	peri.tr_io_input[16]:0	P4.2
peri.tr_io_input[17]:0	P4.3	peri.tr_io_input[18]:0	P4.4	peri.tr_io_input[19]:0	P4.5
peri.tr_io_input[1]:0	P0.1	peri.tr_io_input[20]:0	P4.6	peri.tr_io_input[21]:0	P4.7
peri.tr_io_input[22]:0	P5.0	peri.tr_io_input[23]:0	P5.1	peri.tr_io_input[24]:0	P5.2
peri.tr_io_input[25]:0	P5.3	peri.tr_io_input[26]:0	P6.0	peri.tr_io_input[27]:0	P6.1
peri.tr_io_input[28]:0	P6.2	peri.tr_io_input[29]:0	P6.3	peri.tr_io_input[2]:0	P1.0
peri.tr_io_input[30]:0	P7.0	peri.tr_io_input[31]:0	P7.1	peri.tr_io_input[32]:0	P7.2
peri.tr_io_input[33]:0	P7.3	peri.tr_io_input[34]:0	P7.4	peri.tr_io_input[38]:0	P8.0
peri.tr_io_input[39]:0	P8.1	peri.tr_io_input[3]:0	P1.1	peri.tr_io_input[40]:0	P8.2
peri.tr_io_input[41]:0	P8.3	peri.tr_io_input[44]:0	P9.0	peri.tr_io_input[45]:0	P9.1
peri.tr_io_input[46]:0	P9.2	peri.tr_io_input[47]:0	P9.3	peri.tr_io_input[4]:0	P1.2
peri.tr_io_input[5]:0	P1.3	peri.tr_io_input[6]:0	P2.0	peri.tr_io_input[7]:0	P2.1
peri.tr_io_input[8]:0	P2.2	peri.tr_io_input[9]:0	P2.3	peri.tr_io_output[0]:0	P0.0
peri.tr_io_output[14]:0	P4.0	peri.tr_io_output[15]:0	P4.1	peri.tr_io_output[16]:0	P4.2
peri.tr_io_output[17]:0	P4.3	peri.tr_io_output[18]:0	P4.4	peri.tr_io_output[19]:0	P4.5
peri.tr_io_output[1]:0	P0.1	peri.tr_io_output[20]:0	P4.6	peri.tr_io_output[21]:0	P4.7
peri.tr_io_output[22]:0	P5.0	peri.tr_io_output[23]:0	P5.1	peri.tr_io_output[24]:0	P5.2
peri.tr_io_output[25]:0	P5.3	peri.tr_io_output[26]:0	P6.0	peri.tr_io_output[27]:0	P6.1
peri.tr_io_output[28]:0	P6.2	peri.tr_io_output[29]:0	P6.3	peri.tr_io_output[2]:0	P1.0
peri.tr_io_output[30]:0	P7.0	peri.tr_io_output[31]:0	P7.1	peri.tr_io_output[32]:0	P7.2
peri.tr_io_output[33]:0	P7.3	peri.tr_io_output[34]:0	P7.4	peri.tr_io_output[38]:0	P8.0
peri.tr_io_output[39]:0	P8.1	peri.tr_io_output[3]:0	P1.1	peri.tr_io_output[40]:0	P8.2
peri.tr_io_output[41]:0	P8.3	peri.tr_io_output[44]:0	P9.0	peri.tr_io_output[45]:0	P9.1
peri.tr_io_output[46]:0	P9.2	peri.tr_io_output[47]:0	P9.3	peri.tr_io_output[4]:0	P1.2
peri.tr_io_output[50]:0	P4.0	peri.tr_io_output[50]:1	P7.0	peri.tr_io_output[51]:0	P4.1
peri.tr_io_output[51]:1	P7.1	peri.tr_io_output[52]:0	P4.2	peri.tr_io_output[52]:1	P7.2
peri.tr_io_output[53]:0	P4.3	peri.tr_io_output[53]:1	P7.3	peri.tr_io_output[54]:0	P4.4
peri.tr_io_output[54]:1	P7.4	peri.tr_io_output[55]:0	P4.5	peri.tr_io_output[56]:0	P4.6
peri.tr_io_output[57]:0	P4.7	peri.tr_io_output[58]:0	P2.0	peri.tr_io_output[58]:1	P1.0
peri.tr_io_output[59]:0	P2.1	peri.tr_io_output[59]:1	P1.1	peri.tr_io_output[5]:0	P1.3
peri.tr_io_output[60]:0	P2.2	peri.tr_io_output[60]:1	P1.2	peri.tr_io_output[61]:0	P2.3
peri.tr_io_output[61]:1	P1.3	peri.tr_io_output[62]:1	P5.0	peri.tr_io_output[62]:2	P8.0
peri.tr_io_output[63]:1	P5.1	peri.tr_io_output[63]:2	P8.1	peri.tr_io_output[64]:1	P5.2
peri.tr_io_output[64]:2	P8.2	peri.tr_io_output[65]:1	P5.3	peri.tr_io_output[65]:2	P8.3
peri.tr_io_output[66]:0	P6.0	peri.tr_io_output[67]:0	P6.1	peri.tr_io_output[68]:0	P6.2
peri.tr_io_output[69]:0	P6.3	peri.tr_io_output[6]:0	P2.0	peri.tr_io_output[70]:0	P7.0
peri.tr_io_output[70]:1	P1.0	peri.tr_io_output[71]:0	P7.1	peri.tr_io_output[71]:1	P1.1
peri.tr_io_output[72]:0	P7.2	peri.tr_io_output[72]:1	P1.2	peri.tr_io_output[73]:0	P7.3
peri.tr_io_output[73]:1	P1.3	peri.tr_io_output[7]:0	P2.1	peri.tr_io_output[8]:0	P2.2
peri.tr_io_output[9]:0	P2.3	scb0.i2c.scl	P9.0	scb0.i2c.sda	P9.2
scb0.spi.clk	P9.0	scb0.spi.miso	P9.3	scb0.spi.mosi	P9.2
scb0.spi.select0	P9.1	scb0.uart.cts	P9.0	scb0.uart.rts	P9.1
scb0.uart.rx	P9.2	scb0.uart.tx	P9.3	scb1.i2c.scl	P1.3, P2.1
scb1.i2c.sda	P1.2, P2.2	scb1.spi.clk	P1.1, P2.1	scb1.spi.miso	P1.3, P2.3
scb1.spi.mosi	P1.2, P2.2	scb1.spi.select0	P1.0, P2.0	scb1.uart.cts	P1.0, P2.0
scb1.uart.rts	P1.1, P2.1	scb1.uart.rx	P1.2, P2.2	scb1.uart.tx	P1.3, P2.3
scb2.i2c.scl	P7.0	scb2.i2c.sda	P7.1	scb2.spi.clk	P7.0
scb2.spi.miso	P7.2	scb2.spi.mosi	P7.1	scb2.spi.select0	P7.3
scb2.spi.select1	P7.4	scb2.uart.cts	P7.0	scb2.uart.rts	P7.3
scb2.uart.rx	P7.2	scb2.uart.tx	P7.1	scb3.i2c.scl	P5.1, P6.1
scb3.i2c.sda	P5.0, P6.0	scb3.spi.clk	P5.2, P6.2	scb3.spi.miso	P5.1, P6.1
scb3.spi.mosi	P5.0, P6.0	scb3.spi.select0	P5.3, P6.3	scb3.uart.cts	P5.0, P6.0
scb3.uart.rts	P5.1, P6.1	scb3.uart.rx	P5.2, P6.2	scb3.uart.tx	P5.3, P6.3
scb4.i2c.scl	P4.2	scb4.i2c.sda	P4.1	scb4.spi.clk	P4.2
scb4.spi.miso	P4.1	scb4.spi.mosi	P4.0	scb4.spi.select0	P4.3
scb4.uart.cts	P4.0	scb4.uart.rts	P4.1	scb4.uart.rx	P4.2
scb4.uart.tx	P4.3	scb5.i2c.scl	P8.1	scb5.i2c.sda	P8.3
scb5.spi.clk	P8.3	scb5.spi.miso	P8.2	scb5.spi.mosi	P8.1
scb5.spi.select0	P8.0	scb5.uart.cts	P8.0	scb5.uart.rts	P8.2
scb5.uart.rx	P8.1	scb5.uart.tx	P8.3	smartio0.io0	P0.0
smartio0.io1	P0.1	smartio1.io0	P1.0	smartio1.io1	P1.1
smartio1.io2	P1.2	smartio1.io3	P1.3	smartio2.io0	P2.0
smartio2.io1	P2.1	smartio2.io2	P2.2	smartio2.io3	P2.3
smartio5.io0	P5.0	smartio5.io1	P5.1	smartio5.io2	P5.2
smartio5.io3	P5.3	smartio6.io0	P6.0	smartio6.io1	P6.1
smartio6.io2	P6.2	smartio6.io3	P6.3	smartio9.io0	P9.0
smartio9.io1	P9.1	smartio9.io2	P9.2	smartio9.io3	P9.3
swj.swclk/tclk	P1.2	swj.swdio/tms	P1.3	swj.tdi	P2.0
swj.tdo	P2.1	swj.trstn	P8.0	tcpwm0.g1.cnt4+	P4.0, P6.0
tcpwm0.g1.cnt4-	P4.1, P6.1	tcpwm0.g1.cnt5+	P4.2, P6.2	tcpwm0.g1.cnt5-	P4.3, P6.3
tcpwm0.g1.cnt6+	P4.4, P7.0	tcpwm0.g1.cnt6-	P4.5, P7.1	tcpwm0.g1.cnt7+	P4.6, P7.2
tcpwm0.g1.cnt7-	P4.7, P7.3	tcpwm0.g2.cnt4+	P8.0	tcpwm0.g2.cnt4-	P8.1
tcpwm0.g2.cnt5+	P8.2	tcpwm0.g2.cnt5-	P8.3	tcpwm0.g2.cnt6+	P2.0, P9.0
tcpwm0.g2.cnt6-	P2.1, P9.1	tcpwm0.g2.cnt7+	P2.2, P9.2	tcpwm0.g2.cnt7-	P2.3, P9.3
trace.clock	P7.4, P9.2	trace.data0	P7.0, P8.0	trace.data1	P7.1, P8.1
trace.data2	P7.2, P8.2	trace.data3	P7.3, P8.3	wco_in	P0.1
wco_out	P0.0

The peri.tr_io_input[n] and peri.tr_io_output[n] provide one more level of trigger and signal routing option between the peripherals and the GPIO pins using the high-speed I/O matrix (HSIOM). The peri.tr_io_input[n] allows a GPIO pin to be used as peripheral trigger input source (external trigger). Similarly, the peri.tr_io_output[n] can be used to route peripheral triggers and some signals like TCPWM line_out and line_compl_out to a GPIO pin. For more information refer to the Trigger MUX connection tables in section 10.3 of the PSOC™ Control C3 architecture reference manual.

Note: SCB4 and SCB5 are not available in 48-pin devices

Electrical specifications

Absolute maximum ratings

Table 9.

Absolute maximum ratings

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
SID1	Analog or Digital Supply relative to Vss (Vssd=Vssa)	VDD_ABS	-0.5		4	V	Absolute Maximum
SID2_E	Direct digital core voltage input relative to Vssd	VCCD_ABS	-0.5		1.1	V	Absolute Maximum
SID3	GPIO voltage ; VDDD or VDDA	VGPIO_ABS	-0.5		VDD+0.5	V	Absolute Maximum
SID4	Current per GPIO	IGPIO_ABS	-25		25	mA	Absolute Maximum
SID5	GPIO injection current per pin	IGPIO_injection	-0.5		0.5	mA	Absolute Maximum
SID3A	Electrostatic discharge Human Body Model	ESD_HBM	2000			V	Absolute Maximum
SID4A	Electrostatic discharge Charged Device Model	ESD_CDM	500			V	Absolute Maximum
SID5A	Pin current for latchup free operation	LU	-100		100	mA	Absolute Maximum
SIDWA8	Maximum undershoot voltage for I/O	Vundershoot			-0.5	V	Duration not to exceed 25% of the duty cycle
SIDWA9	Maximum overshoot voltage for I/O	Vovershoot			VDDIO + 0.5	V	Duration not to exceed 25% of the duty cycle
SIDWA10	Maximum junction temperature	Tj			125	°C

Device level specifications

Power supplies

Table 10.

Power supplies

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
DC Specifications
SID6	Internal Regulator	VDDD	1.71		3.6	V
SID7B	GPIO Supply for Ports 1, 2, 3, 4, 5, 6, 7	VDDIO_0	1.71		3.6	V
SID7EP	E-Fuse Programming time	EFUSETIME			5.5	μs	Switch on time of 0.5us included
SID7C	GPIO Supply for Ports 8 and 9	VDDIO_1	1.71		3.6	V
SID7A	Analog power supply for ADC and Comparator	VDDA	1.71		3.6	V
SID6B	Backup Power; normally shorted to VDDD (supply PORT 0)	VBACKUP	1.71		3.6	V	Min. is 1.4 V in Backup mode
SID8A	Output voltage (for core logic bypass)	VCCD (LP)		1.1		V	High-speed mode
SID8B	Output voltage (for core logic bypass)	VCCD (MF)		1			ULP mode. Valid for -20 to 125°C.
SID8C	Output voltage (for core logic bypass)	VCCD (ULP)		0.9			ULP mode. Valid for -20 to 125°C.
SID10	External Regulator voltage (VCCD) bypass	CEFC	3.76	4.7	5.6	µF	X5R ceramic or better. Value for 0.8 to 1.1 V.
SID11	Power supply decoupling capacitor	CEXC		10		µF	X5R ceramic or better
Deep Sleep Mode
SIDDS1	With internal LDO enabled and no SRAM retention	IDD33		6	8	µA	Max value is at 85°C (not including analog leakage on VDDA and VAREF_EXT)
SIDDS1_A	With internal LDO enabled and 64K SRAM retention	IDD33A		7	11	µA	Max value is at 85°C (not including analog leakage on VDDA and VAREF_EXT)
SIDDS2	Leakage on analog supply and analog reference in deep sleep mode	IDDA		0.1	1.5	µA	Max values at 85°C
Hibernate Mode
SIDHIB1	VDDD = 1.8 V	IDD34		300		nA	No clocks running (not including analog leakage on VDDA and VAREF_EXT)
SIDHIB2	VDDD = 3.3 V	IDD34A		500		nA	No clocks running (not including analog leakage on VDDA and VAREF_EXT)
SIDHIB3	VDDD = 1.8 V	IDD35		800		nA	WCO is running, lpcomp active (not including analog leakage on VDDA and VAREF_EXT)
SIDHIB4	VDDD = 3.3 V	IDD35A		1000		nA	WCO is running, lpcomp active (not including analog leakage on VDDA and VAREF_EXT)
SIDHIB5	Leakage on analog supply and analog reference in hibernate mode	IDDA		100		nA	Typical silicon and typical temperature

CPU currents and transition times

Table 11.

CPU currents and transition times

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Cortex® M33. Active Mode
SIDC3_E	Execute from Cache;CM33 Active 100 MHz. PLL. Dhrystone. LP Mode	IDD5		15	30	mA	VDDD = 3.3 V, Max at 125°C
SIDC3A_E	Execute from Cache;CM33 Active 100 MHz. PLL. Dhrystone. LP Mode	IDD5A		15	30	mA	VDDD = 1.8 V, Max at 125°C
SIDC4	Execute from Cache;CM33 Active 70 MHz. PLL. Dhrystone. MF Mode	IDD6		12	27	mA	VDDD = 3.3 V, Max at 125°C
SIDC4A	Execute from Cache;CM33 Active 70 MHz. PLL. Dhrystone. MF Mode	IDD6A		12	27	mA	VDDD = 1.8 V, Max at 125°C
SIDC5	Execute from Cache;CM33 Active 50 MHz. PLL. Dhrystone. ULP Mode	IDD7		7	18	mA	VDDD = 3.3 V, Max at 125°C
SIDC5A	Execute from Cache;CM33 Active 50 MHz. PLL. Dhrystone. ULP Mode	IDD7A		7	18	mA	VDDD = 1.8 V, Max at 125°C
Cortex® M33 Sleep Mode
SIDS2E	CM33 Sleep 100 MHz. PLL. LP Mode	IDD12		7	11	mA	VDDD = 3.3 V, Max at 105°C
SIDS2A_E	CM33 Sleep 100 MHz. PLL.. LP Mode	IDD12A		7.0	11	mA	VDDD = 1.8 V, Max at 105°C
SIDS3	CM33 Sleep 70 MHz. PLL. MF Mode	IDD13		4.5	10	mA	VDDD = 3.3 V, Max at 105°C
SIDS3A	CM33 Sleep 70 MHz. PLL. MF Mode	IDD13A		4.5	10	mA	VDDD = 1.8 V, Max at 105°C
SIDS4	CM33 Sleep 50 MHz. PLL. ULP Mode	IDD14		4	9	mA	VDDD = 3.3 V, Max at 105°C
SIDS4A	CM33 Sleep 50 MHz. PLL. ULP Mode	IDD14A		4	9	mA	VDDD = 1.8 V, Max at 105°C
Boot Time
SIDBT1	Boot time after reset	BTIME			3000000	cycles	Refer to CPU clock cycles
Power Mode Transition Times
SID13A	Deep Sleep to Active transition time.	TDS_ACT			45	µs	DS to Active with 1.1 V operation
SID13B	Deep Sleep to Active LP transition time	TDS_ACTLP			26	µs	DS to Active LP with 1.0 V operation
SID13C	Deep Sleep-RAM to Active transition time	TDSR_ACT			800	µs	DS to Active with 1.1 V operation
SID13D	Deep Sleep-RAM to Active LP transition time	TDSR_ACTULP			800	µs	DS-RAM to Active LP with 1.0 V operation
SID14	Hibernate to Active transition time	THIB_ACT		2000		µS	Including PLL lock time

XRES

Table 12.

XRES

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
XRES AC Specifications
SID15	POR or XRES release to Active transition time	TXRES_ACT		2		mS	With BOOT_OD_CLOCK=180MHz, LISTEN_WINDOW=9 and BOOT_SIMPLE_APP configuration
SID16	XRES Pulse width	TXRES_PW	5			µS
XRES DC Specifications
SID17	IDD when XRES asserted	TXRES_IDD		180		nA	VDDD = 1.8 V
SID17	IDD when XRES asserted	TXRES_IDD_1		330		nA	VDDD = 3.3 V
SID77	Input Voltage high threshold	VIH	0.7*VDD			V	CMOS Input
SID78	Input Voltage low threshold	VIL			0.3*VDD	V	CMOS Input
SID80	Input Capacitance	CIN		3		pF	XRES resistor removed
SID81	Input voltage hysteresis	VHYSXRES		100		mV
SID82	Current through protection diode to VDD/Vss	IDIODE			100	µA

GPIO

Table 13.

GPIO

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
GPIO DC Specifications
SID57	Input Voltage high threshold	VIH	0.7*VDD			V	CMOS Input
SID58	Input Voltage low threshold	VIL			0.3*VDD	V	CMOS Input
SID243	LVTTL input, VDD > = 2.7 V	VIH	2.0			V
SID244	LVTTL input, VDD > = 2.7 V	VIL			0.8	V
SID59	Output Voltage high level	VOH	VDD-0.5			V	Ioh = 6 mA
SID62A	Output Voltage low level	VOL			0.4	V	Iol = 6 mA
SID63	Pull-up resistor	RPULLUP	3.5	5.6	8.5	kΩ
SID64	Pull-down resistor	RPULLDOWN	3.5	5.6	8.5	kΩ
SID65	Input leakage current(absolute value)	IIL			2	nA	25°C, VDD = 3.0 V
SID66	Input Capacitance	CIN			5	pF
SID67	Input hysteresis LVTTL VDD > 2.7 V	VHYSTTL	100	0		mV
SID68	Input hysteresis CMOS	VHYSCMOS	0.05*VDD			mV
SID69	Current through protection diode to VDD/VSS	IDIODE			100	µA
SID69A	Maximum Total Source or Sink Chip Current	ITOT_GPIO			200	mA
GPIO AC Specifications
SID70	Rise time in Fast Strong Mode. 10% to 90% of VDD	TRISEF			2.5	ns	Cload = 15 pF, 8 mA drive strength
SID71	Fall time in Fast Strong Mode. 10% to 90% of VDD.	TFALLF			2.5	ns	Cload = 15 pF, 8 mA drive strength
SID72	Rise time in Slow Strong Mode. 10% to 90% of VDD	TRISES_1			14.4	ns	Cload = 15 pF, 8 mA drive strength, VDD < = 2.7 V
SID72A	Rise time in Slow Strong Mode. 10% to 90% of VDD	TRISES_2			7.2	ns	Cload = 15 pF, 8 mA drive strength, 2.7 V < VDD < = 3.6
SID73	Fall time in Slow Strong Mode. 10% to 90% of VDD	TFALLS_1			14.4	ns	Cload = 15 pF, 8 mA drive strength, VDD < = 2.7 V
SID73A	Fall time in Slow Strong Mode. 10% to 90% of VDD	TFALLS_2			7.2	ns	Cload = 15 pF, 8 mA drive strength, 2.7 V < VDD < = 3.6
SID73G	Fall time (30% to 70% of VDD) in Slow Strong mode	TFALL_I2C	20*Vddio/5.5		250	ns	Cload = 10 pF to 400 pF, 8mA drive strength
SID74	GPIO Fout. Fast Strong mode.	FGPIOUT1			80	MHz	90/10%, 15 pF load, 60/40 duty cycle
SID75	GPIO Fout; Slow Strong mode.	FGPIOUT2			16.7	MHz	90/10%, 15 pF load, 60/40 duty cycle
SID76	GPIO Fout; Fast Strong mode.	FGPIOUT3			7	MHz	90/10%, 25 pF load, 60/40 duty cycle
SID245	GPIO Fout;Slow Strong mode.	FGPIOUT4			3.5	MHz	90/10%, 25 pF load, 60/40 duty cycle
SID246	GPIO input operating frequency;1.71 V < = VDD < = 3.6 V	FGPIOIN			100	MHz	90/10% Vio

Analog peripherals

Table 14.

Analog subsystem

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Analog Peripherals
SIDAS1	Leakage on single analog input pin	AIN_LEAK		0.32	12	nA	Maximum leakage at 125°C
SIDAS2	Input Capactiance of CSG	AIN_CAP_CSG			1	pF	Valid for VDDA > = 2.7 V
SIDAS2A	Input Capactiance of ADC	AIN_CAP_ADC			3	pF	Valid for VDDA > = 2.7 V
SIDAS3	Total series resistance on channel reaching CSG	AIN_RES_CSGS			500	Ω	Valid for VDDA > = 2.7 V
SIDAS3A	Total parallel resistance on channel reaching CSG	AIN_RES_CSGP			400	MΩ	Valid for VDDA > = 2.7 V
SIDAS4	Total resistance of analog channel directly connected to S/H	AIN_RES_ADC			750	Ω	Valid for VDDA > = 2.7 V
SIDAS4A	Total resistance of analog channel connected to S/H through AMUX	AIN_RES_ADC			2600	Ω	Valid for VDDA > = 2.7 V

LP comparator

Table 15.

LPComp

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
LPComparator DC Specifications
SID84	Input offset voltage for COMP1. Normal power mode.	VOFFSET1	-10		10	mV
SID85A	Input offset voltage. Low-power mode.	VOFFSET2	-25	+/-12	25	mV
SID85B	Input offset voltage. Ultra low-power mode.	VOFFSET3	-25	+/-12	25	mV
SID86	Hysteresis when enabled in Normal mode	VHYST1			60	mV
SID86A	Hysteresis when enabled in Low-power mode	VHYST2			80	mV
SID87	Input common mode voltage in Normal mode	VICM1	0		VDDIO1-0.1	V
SID247	Input common mode voltage in Low power mode	VICM2	0		VDDIO1-0.1	V
SID247A	Input common mode voltage in Ultra low power mode	VICM3	0		VDDIO1-0.1	V
SID88	Common mode rejection ratio in Normal power mode	CMRR	50			dB
SID89	Block Current, Normal mode	ICMP1			150	µA
SID248	Block Current, Low power mode	ICMP2			10	µA
SID259	Block Current in Ultra low-power mode	ICMP3		0.3	0.85	µA
SID90	DC Input impedance of comparator	ZCMP	35			MΩ
LPComparator AC Specifications
SID91	Response time, Normal mode, 100 mV overdrive	TRESP1			100	ns
SID258	Response time, Low power mode, 100 mV overdrive	TRESP2			1000	ns
SID92	Response time, Ultra-low power mode, 100 mV overdrive	TRESP3			20	µs
SID92E	Time from Enabling to operation	T_CMP_EN1			10	µs	Normal and Low-power modes. Guranteed by design
SID92F	Time from Enabling to operation	T_CMP_EN2			50	µs	Ultra low-power mode. Guranteed by design

HPPASS

Table 16.

HPPASS

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
CSG DC Specifications
SIDCSG	Reference voltage for DAC	DAC_REF		VDDA		V	Supply is used as reference for the DAC
SIDCSG.0	Input referred residual offset for comparator	VOFFSET	-3		3	mV
SIDCSG.1	Input common mode voltage	VCMR	0.2		VDDA-0.2	V
SIDCSG.2	Operating current on VDDA at 120 MHz	IVDDA			700	uA	Includes comparator, DAC on VDDA and all internal blocks. Only one instance of CSG
SIDCSG.2A	Operating current(Single instance) on VCCD at 120 MHz	IVCCD			50	uA	Substraction is done to measure the consumption of one CSG slice
SIDCSG.3	minimum overdrive voltage at 10 MHz	OD10M	12			mV
SIDCSG.3B	minimum overdrive voltage at 80 MHz	OD80M	50			mV
SIDCSG.4	DAC INL	INL	-1		2	LSB	Referred to 10-bit DAC with full scale LSB at 3.3 V
SIDCSG.5	DAC DNL	DNL	-1		1	LSB	Referred to 10-bit DAC with full scale LSB at 3.3 V
CSG AC Specifications
SIDCSG.7	Comparatror Input referred comparator noise	INPNOISE			400	uV
SIDCSG.8	Dac settling within +-1 LSB for > = 256 LSB change	DACSET			33	ns	Up to 1023 LSB code change
SIDCSG.8A	Dac settling within +-1 LSB for < = 255 LSB change	DACSETA			25	ns	LSB code change of 64 and above( Less than 64 and upto 4 LSB code change is guranteed by design)
SIDCSG.9	DAC Observability Error by the ADC (CSG accuracy and operation not affected)	DAC_OBSERR			16	LSB	LSB refers to the 10-bit DAC. Maximum error condition when |VIN-VDAC| = VDDA
					8	LSB	LSB refers to the 10-bit DAC. Maximum error condition when |VIN-VDAC| = VDDA/2
					4		LSB refers to the 10-bit DAC. Maximum error condition when |VIN-VDAC| = VDDA/4
Temperature Sensor Specifications
SID93	Temperature sensor accuracy	TSENSACC	-5	±1	5	°C	-40 to +125°C
Internal Reference Specifications
SID93R		VREFBG	1188	1.2	1212	V
12-bit SAR ADC DC Specifications
SIDADC	External Reference	VAREF_EXT		VDDA		V	For meeting the parameters of the ADC, it is recommended to connect reference to VAREF
SIDADC.0	SAR ADC Resolution	RES			12	bits
SIDADC.1	Number of Sample and Hold stages - single ended	SH_S			16
SIDADC.2	Gain Error without calibration	GAINERR_NOCAL	-5		5	%	LSB referred to VAREF = 3.3 V
SIDADC.3	Gain error at gain =1 after calibration	GAINERR_1	-0.1		0.1	%	LSB referred to VAREF = 3.3 V
SIDADC.3A	Gain error at gain =3 after calibration	GAINERR_3	-0.3		0.3	%	LSB referred to VAREF = 3.3 V
SIDADC.3B	Gain error at gain =6 after calibration	GAINERR_6	-0.6		0.6	%	LSB referred to VAREF = 3.3 V
SIDADC.3C	Gain error at gain =12 after calibration	GAINERR_12	-1.2		1.2	%	LSB referred to VAREF = 3.3 V
SIDADC.4	Offset Error without calibration	OFFSETERR_NOCAL	-10		10	mV
SIDADC.4A	Offset Error after calibration	OFFSETERR	-1.5		1.5	mV
SIDADC.5A	Total unadjusted error for gain =1	TUE_G1	-4.5		4.5	LSB	Gain =1, LSB referred to VAREF = 3.3 V
SIDADC.5B	Total unadjusted error for gain =3	TUE_G3	-4.5		4.5	LSB	Gain = 3, LSB referred to VAREF = 3.3 V
SIDADC.5C	Total unadjusted error for gain =6	TUE_G6	-4.5		4.5	LSB	Gain = 6, LSB referred to VAREF = 3.3 V
SIDADC.5D	Total unadjusted error for gain =12	TUE_G12	-4.5		4.5	LSB	Gain =12, LSB referred to VAREF = 3.3 V
SIDADC.6	Integral Non Linearity.	A_INL	-2		2	LSB	VAREF = 3.3 V
SIDADC.7	Differential Non Linearity.	A_DNL	-1		2	LSB	VAREF = 3.3 V
SIDADC.8	Current consumption	A_ISAR_1			13	mA	Current consumption on analog supply VDDA, VDDA = 3.3 V
SIDADC.9	Input voltage range	A_VINS	Vss		VDDA	V	When VDDA > VAREF_EXT, ADC result will saturate when VIN = VAREF_EXT
12-bit SAR ADC AC Specifications
SIDADC.9A	Analog Input voltage transient tolerated	A_VINSTRAN			VDDA + 1.5	V	Input current ≤ 3 mA. Valid for max VDDA = 3.3 V. Slew rate for VIN from VDDA to VDDA+1.5 ≥ 7 us.
SIDADC.10_E	ADC frequency	fADC	80		120	MHz	Operating voltage mode, LP = 1.1 V, max when VDDA > =2.7 V, min when VDDA < 2.7 V
SIDADC.12	RMS noise	A_RMS			1.5	LSB	1 sigma value
SIDADC.13	Interchannel crosstalk with <=6 samplers	CROSSTALK_5	-4		4	LSB	Inter Channel Crosstalk for VAREF = 3.3 V with < = 6 samplers ending sampling simultaneously. After crosstalk compensation by software routine.
SIDADC.14_E	Sample rate	A_SAMP_1			6	Msps	VDDA 2.7 - 3.6 (this includes minimum sampling time and conversion time) . fADC max = 120 MHz
SIDADC.15_E	Sample rate	A_SAMP_2			3	Msps	VDDA 1.7 - 2.7 (this includes minimum sampling time and conversion time). fADC max = 120 MHz
SIDADC.16	Signal-to-noise and Distortion ratio (SINAD).	A_SINAD	65			dB	Fin = 10 kHz, Gain =1, VAREF = 3.3 V
SIDADC.17	Start Up time after stable supply	T_STARTUP			1300	cycles	ADC clock frequency define the start up time
SIDADC.18	Maximum calibratiom time	T_CAL			2160000	Cycles	ADC clock frequency define the Calibration time. Calibration is required only after power up. After Start up calibration values will be loaded into the ADC calibration registers. Use can decide to skip the power up calibration. Calibration values are not retained when the MCU goes from Active to Deep Sleep and Hibernate mode.
SIDADC.19	Minimum sampling time for analog input through analog pad direct connection to S/H	T_SAMPLE	4			cycles	Referred to fADC
SIDADC.19B	Minimum sampling time for analog input through analog pad connected to S/H via AROUTE (AMUX)	T_SAMPLE_AROUTE	20			cycles	Referred to fADC
SIDADC.19C	Minimum sampling time for analog input through GPIO or ADFT connected to S/H via AROUTE (AMUX)	T_SAMPLE_GPIO	40			cycles	Referred to fADC

Digital peripherals

TCPWM specifications

Table 17.

TCPWM specifications

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
TCPWM Specifications
SID.TCPWM.2B	Block current consumption at 100 MHz	ITCPWM4			1600	µA	PWM_DT mode and HRPWM mode enabled with 50% duty cycle
SID.TCPWM.2C_E	Block current consumption at 120 MHz	ITCPWM4			2000	µA	PWM_DT mode and HRPWM mode enabled with 50% duty cycle
SID.TCPWM.3_E	Operating frequency	TCPWMFREQ			120	MHz	Fc max = 120 MHz
SID.TCPWM.4	Input Trigger Pulse Width for all Trigger Events	TPWMENEXT	2/Fc			ns	Trigger Events can be Stop, Start, Reload, Count, Capture, or Kill depending on which mode of operation is selected.
SID.TCPWM.5	Output Trigger Pulse widths	TPWMEXT	1.5/Fc			ns	Minimum possible width of Overflow, Underflow, and CC (Counter equals Compare value) trigger outputs
SID.TCPWM.5A	Resolution of Counter	TCRES	1/Fc			ns	Minimum time between successive counts at VDDD = 3.3 V
SID.TCPWM.5B	PWM Resolution	PWMRES	1/Fc			ns	Minimum pulse width of PWM Output at VDDD = 3.3 V

SCB

Table 18.

SCB

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Fixed I2C DC Specifications
SID149	Block current consumption at 100 KHz	II2C1			30	µA
SID150	Block current consumption at 400 KHz	II2C2			80	µA
SID151	Block current consumption at 1 Mbps	II2C3			180	µA
SID152	I2C enabled in Deep Sleep mode	II2C4			1.7	µA	At 60°C
Fixed I2C AC Specifications
SID153	Bit Rate	FI2C1			1	Mbps
Fixed UART DC Specifications
SID160	Block current consumption at 100 Kbits/sec	IUART1			30	µA
SID161	Block current consumption at 1000 Kbits/sec	IUART2			180	µA
Fixed UART AC Specifications
SID162A	Bit Rate	FUART1			3	Mbps	ULP Mode
SID162B	Bit Rate	FUART2			8	Mbps	LP Mode
Fixed SPI DC Specifications
SID163	Block current consumption at 1Mbits/sec	ISPI1			220	µA
SID164	Block current consumption at 4 Mbits/sec	ISPI2			340	µA
SID165	Block current consumption at 8 Mbits/sec	ISPI3			360	µA
SID165A	Block current consumption at 25 Mbits/sec	ISP14			800	µA
Fixed SPI AC Specifications for LP Mode (1.1V) unless noted otherwise
SID166_E	SPI Operating frequency Master and Externally Clocked Slave	FSPI_EXT			25	MHz	For LP mode
SID166U	SPI Operating frequency Master and Externally Clocked Slave	FSPI_EXT_UL			6.25	MHz	For ULP mode
SID166B_E	SPI Operating frequency Master in LP mode	FSPI			FSCB/4	MHz	LP mode, FSCB = 100 MHz
SID166BU	SPI Operating frequency Master in ULP mode	FSPI_UL			FSCB/4	MHz	ULP mode, FSCB = 25 MHz
SID166C_E	SPI Slave Internally Clocked	FSPI_IC			100	MHz	LP mode
SID166CUL	SPI Slave Internally Clocked	FSPI_IC_UL			25	MHz	ULP mode
Fixed SPI Master mode AC Specifications for LP Mode (1.1 V) unless noted otherwise
SID167_E	MOSI Valid after SClock driving edge	TDMO			12	ns	LP mode
SID167UL	MOSI Valid after SClock driving edge	TDMO_UL			40	ns	ULP mode
SID168_E	MISO Valid before SClock capturing edge	TDSI	20			ns	LP Full clock, late MISO sampling
SID168_ULP	MISO Valid before SClock capturing edge	TDSI_ULP	105			ns	ULP, Full clock, late MISO sampling
SID169_E	MOSI data hold time	THMO	0			ns	Refer to Slave capturing edge in LP mode
SID169_UL	MOSI data hold time	THMO_UL	0			ns	Refer to Slave capturing edge in ULP and MF mode
SID169A	SSEL Valid to first SCK Valid edge	TSSELMSCK1	20			ns	Refer to Master clock edge for all modes and SPI and HS SPI
SID169B	SSEL Hold after last SCK Valid edge	TSSELMCK2	20			ns	Refer to Master clock edge for all modes and SPI and HS SPI
Fixed SPI Slave mode AC Specifications for LP Mode (1.1V) unless noted otherwise
SID170_E	MOSI Valid before Sclock Capturing edge	TDMI	5			ns	LP mode
SID170_UL	MOSI Valid before Sclock Capturing edge	TDMI_UL	24			ns	ULP mode
SID170A_E	MOSI Hhold from SCLK	TSIH_EXT	2.5			ns	LP mode
SID170A_UL	MOSI Hhold from SCLK	TSIH_EXT_UL	5			ns	ULP and MF mode
SID171A_E	MISO Valid after Sclock driving edge in Ext. Clk. mode	TDSO_EXT			20	ns	LP mode
SID171A_UL	MISO Valid after Sclock driving edge in Ext. Clk. mode	TDSO_EXT_UL			35	ns	ULP mode
SID171	MISO Valid after Sclock driving edge in Internally Clk. Mode	TDSO			TDSO_EXT + 3*Tscb	ns	Tscb is Serial Comm Block clock period.
SID171B	MISO Valid after Sclock driving edge in Internally Clk. Mode with Median filter enabled.	TDSO_M			TDSO_EXT + 4*Tscb	ns	Tscb is Serial Comm Block clock period.
SID172	MOSI and MISO data hold time	THSO	5			ns
SID172A	SSEL Valid to first SCK Valid edge	TSSELSCK1	4*Tscb			ns
SID172B	SSEL Hold after Last SCK Valid edge	TSSELSCK2	4*Tscb			ns
SID172C_E	MISO valid after SSEL falling edge	TVSS_EXT			20	ns	For LP mode
SID172C_ULP	MISO valid after SSEL falling edge	TVSS_EXT_ULP			35	ns	For ULP and MF mode

Memory

Table 19.

Memory

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Flash DC Specifications
SID173	Erase and Program voltage	VPE	1.71		3.6	V	Erase and program not supported at ULP levels (0.9 V)
SID173A	Erase and Program current	IPE			6	mA	Guranteed by design
Flash AC Specifications
SID174	Row(Block) write time (erase & program)	TROWWRITE			16	ms	Row (Block) = 512 Bytes
SID175	Row erase time	TROWERASE			11	ms
SID176	Row program time after erase	TROWPROGRAM			5	ms
SID178	Bulk erase time (256K Bytes)	TBULKERASE			11	ms
SID179	Sector erase time (128K bytes)	TSECTORERASE			11	ms	256 Rows per sector
SID178S	Sub-Sector erase time	TSSERIAE			11	ms	8 Rows per sub-sector
SID179S	Sub-Sector write time; 1 erase plus 8 program times	TSSWRITE			51	ms
SID180S	Sector write time; 1 erase plus 256 program times	TSWRITE			1.3	seconds
SID180	Total Device Program time	TDEVPROG			2.6	seconds
SID181	Flash Endurance	FEND	100K			cycles
SID182	Flash Retention. Ta < = 25°C, 100K P/E cycles	FRET1	10			years
SID182A	Flash Retention. Ta < = 85°C, 10K P/E cycles	FRET2	10			years
SID182B	Flash Retention. Ta < = 55°C, 20K P/E cycles	FRET3	20			years
SID256_E	Number of Wait states at 100 MHz	TWS100			8		LP Mode (1.1 V)

System Resource

Power-on reset (POR)

Table 20.

POR

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Power-On-Reset with Brown-out DC Specifications
SID190	BOD trip voltage in Active and Sleep modes. VDDD.	VFALLPPOR	1.54			V	BOD Reset guaranteed for levels below 1.54 V
SID192	BOD trip voltage in Deep Sleep. VDDD	VFALLDPSLP	1.54			V
SID192A	Maximum power supply ramp rate (any supply)	VDDRAMP			100	mV/uSec	Active Mode
POR with Brown-out AC Specification
SID194A	Maximum power supply ramp rate (any supply) in Deep Sleep	VDDRAMP_DS			10	mV/uSec	BOD operation guaranteed

Voltage monitors

Table 21.

Voltage monitors

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
Voltage Monitors DC Specifications
SID196		VHVDI2	1.52	1.64	1.75	V
SID197		VHVDI3	1.71	1.79	1.86	V
SID198		VHVDI4	1.90	1.99	2.07	V
SID199		VHVDI5	2.00	2.09	2.17	V
SID200		VHVDI6	2.10	2.19	2.27	V
SID201		VHVDI7	2.19	2.29	2.38	V
SID202	VHVDI8	VHVDI8	2.29	2.39	2.48	V
SID203		VHVDI9	2.39	2.49	2.58	V
SID204		VHVDI10	2.48	2.59	2.69	V
SID205		VHVDI11	2.58	2.69	2.79	V
SID206		VHVDI12	2.68	2.79	2.89	V
SID207		VHVDI13	2.77	2.89	3.00	V
SID208		VHVDI14	2.87	2.99	3.10	V
SID209		VHVDI15	2.97	3.09	3.20	V
SID211	Block current	LVI_IDD		5	15	uA
SWD and Trace Interface
SID214LP	1.71V < = VDDD < = 3.6 V	F_SWDCLK2			20	MHz	LP Mode; VCCD = 1.1 V
SID214L	1.71V < = VDDD < = 3.6 V	F_SWDCLK2L			12	MHz	ULP and MF Mode. VCCD = 0.9 V and 1.0 V
SID215	T = 1/f SWDCLK	T_SWDI_SETUP	0.25*T			ns
SID216	T = 1/f SWDCLK	T_SWDI_HOLD	0.25*T			ns
SID217	T = 1/f SWDCLK	T_SWDO_VALID			0.5*T	ns
SID217A	T = 1/f SWDCLK	T_SWDO_HOLD	1			ns
SID216T	With Trace Data setup/hold times of 3/2 ns respectively	F_TRCLK_LP3			50	MHz	MF Mode. VCCD = 1.0 V with load capcaitance = 15 pF
SID217T	With Trace Data setup/hold times of 3/2 ns respectively	F_TRCLK_ULP			25	MHz	ULP Mode. VCCD = 0.9 V with load capcaitance = 15 pF

Single Wire Debug (SWD) and Trace Interface

Table 22.

SWD and Trace Interface

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
SID214LP	1.7V <= VDDD <= 3.6V	F_SWDCLK2			20	MHz	LP Mode; VCCD = 1.1 V
SID214L	1.7V <= VDDD <= 3.6V	F_SWDCLK2L			12	MHz	ULP and MF Mode. VCCD = 0.9V and 1.0 V
SID215	T = 1/f SWDCLK	T_SWDI_SETUP	0.25*T			ns
SID216	T = 1/f SWDCLK	T_SWDI_HOLD	0.25*T			ns
SID217	T = 1/f SWDCLK	T_SWDO_VALID			0.5*T	ns
SID217A	T = 1/f SWDCLK	T_SWDO_HOLD	1			ns
SID215T	With Trace Data setup/hold times of 2/1 ns respectively	F_TRCLK_LP2			75	MHz	LP Mode. VCCD = 1.1 V
SID216T	With Trace Data setup/hold times of 2/1 ns respectively	F_TRCLK_LP2			50	MHz	MF Mode. VCCD = 1.0 V
SID217T	With Trace Data setup/hold times of 2/1 ns respectively	F_TRCLK_ULP			25	MHz	ULP Mode. VCCD = 0.9 V

Internal oscillator crystal oscillator and external clock specifications

Table 23.

Internal Oscillator Crystal Oscillator and External Clock Specifications

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
IMO DC Specifications
SID218	IMO Operating current at 8 MHz	IIMO1		9	15	µA	Guaranteed by Design
IMO AC Specifications
SID223	Frequency variation centered on 8 MHz	FIMOTOL1			±2	%
SID227	Cycle-to-Cycle and Period jitter	TJITR		250		ps
IHO DC Specifications
SID218A	IHO Operating current at 48 MHz	IIHO1		80	100	µA	Guaranteed by Design
IHO AC Specifications
SID223A	Frequency variation centered on 48 MHz	FIHOTOL1			±1	%
SID227A	Cycle-to-Cycle and Period jitter	TJITR		60		ps
ILO DC Specifications
SID231	ILO Operating current at 32 KHz	IILO2		0.3	0.7	µA	Guaranteed by Design
ILO AC Specifications
SID234	ILO Start-up time	TSTARTILO1			7	uS	Startup time to 95% of final frequency
SID236	ILO Duty cycle	TLIODUTY	45	50	55	%
SID237	32 KHz trimmed frequency	FILOTRIM1	28.8	32	35.2	KHz	+/-10% variation
Frequency Locked Loop (FLL) Specifications
SID451	Output frequency range. VCCD = 1.2V/1.1V	FLL_OUT_DIV2_1	24		100	MHz	Output range of FLL divided-by-2 output
SID451A	Output frequency range. VCCD = 0.9V	FLL_OUT_DIV2_2	24.00		50.00	MHz	Output range of FLL divided-by-2 output
SID452	Divided-by-2 output; High or Low	FLL_DUTY_DIV2	47.00		53.00	%	Guaranteed by Design
SID454	Time from stable input clock to 1% of final value on deep sleep wakeup	FLL_WAKEUP			7.50	uS	With IMO input, for < 10°C change in temperature while in Deep Sleep and Fout ≥ 50 Mhz
SID455	Period jitter (1 sigma) at 100 MHz	FLL_JITTER	50		35	pS	Min. Value is at 48 MHz. Guranteed by Design
SID456	CCO + Logic current	FLL_CURRENT			2	uA/MHz
MHz ECO DC Specification
SID316	Block operating current with Cload up to 18 pF.	Idd_MHz		800	2200	µA	Max at 33 MHz. Typ at 16 MHz.
MHz ECO AC Specification
SID317	Crystal frequency range	F_MHz	4		36	MHz
External Clock Specification
SID_EXT_E	External Clock Max input frequency	FEXT			80	MHz	in LP mode, duty cycle between 45% and 55% and max rise/fall time of 20% period
SID_EXT1	External Clock Max input frequency in MF mode	FEXT_MF			50	MHz	in MF mode, duty cycle between 45% and 55% and max rise/fall time of 20% period
SID_EXT2	External Clock Max input frequency in ULP mode	FEXT_ULP			40	MHz	in ULP mode, duty cycle between 45% and 55% and max rise/fall time of 20% period
kHz WCO DC Specification
SID318	Block operating current with 32 kHz crystal	Idd_kHz		0.38	1	µA
SID321E	Equivalent Series Resistance	ESR32K		80		kΩ
SID322E	Drive Level	PD32K			1	µW
kHz WCO AC Specification
SID319	32 KHz trimmed frequency	F_kHz		32768		KHz
SID320K	Startup time	Ton_kHz			1000	ms
SID320E	Frequency tolerance	FTOL32K		50	250	ppm	May be calibrated to sub-10 ppm levels
DPLL Specifications
SIDPLL.0	Time to achieve PLL Lock at 4 MHz reference	PLL_LOCK_4M			20	µS
SIDPLL.1	Time to achieve PLL Lock at 8 MHz reference	PLL_LOCK_8M			20	µS
SIDPLL.2	Output frequency from PLL Block	PLL_OUT		160	240	MHz
SIDPLL.3	PLL Current	PLL_IDD		800	1200	uA	For PLL_OUT = 240 MHz
SIDPLL.4	Period jitter	PLL_PJTR_100	-200		200	pS	for PLL_OUT = 100 MHz
SIDPLL.4C	Period jitter	PLL_PJTR_120	-180		180	pS	for PLL_OUT = 120 MHz
SIDPLL.7	Duty Cycle	PLL_DC	45		55	%	for PLL_OUT = Fdco/N , N > 1 and integer

Smart I/O

Table 24.

Smart I/O

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
SID420	Smart I/O Bypass delay	SMIO_BYP			2	nS	For LP mode
SID421	Smart I/O LUT prop delay	SMIO_LUT		6		nS	For LP Mode with VDDD = 3.3 V

JTAG boundary scan specifications

Table 25.

JTAG boundary scan specifications

Spec ID	Parameter	Symbol	Values			Unit	Note or test condition
			Min.	Typ.	Max.
JTAG: Parameters for 1.1 V (LP) mode operations
SID460	TCK low Mmnimum	TCKLOW	34			nS
SID461	TCK high	TCKHIGH	10			nS
SID461A	Clock Period , 30 pF Load	TCK_PERIOD		62		nS
SID462	TDO clock-to-out (max) from falling TCK	TCK_TDO			22	nS
SID463	TDO clock-to-out (max) from falling TCK	TSU_TCK	12			nS
SID464	TDI, TMS Hold time after rising TCK.	TCK_THD	10			nS
SID465	TCK to TDO Data Valid (high-Z to active).	TCK_TDOV	22			nS
SID466	TCK to TDO Data Valid (active to high-Z).	TCK_TDOZ	22			nS
SID467	JTAG TDO Hold Time	JTAG_TDO_HOLD			5	nS
SID467A	JTAG Input Transition Time	JTAG_INPUT_TRANSITION_TIME			5	nS
JTAG: Parameters for 1.0 V (MF) and 0.9 V (ULP) mode operations
SID483	TCK low Mmnimum	TCKLOW	60			nS
SID484	TCK high	TCKHIGH	20			nS
SID485	Clock Period , 30 pF Load	TCK_PERIOD		80		nS
SID486	TDO clock-to-out (max) from falling TCK	TCK_TDO			40	nS
SID487	TDI, TMS Setup time before rising TCK.	TSU_TCK	20			nS
SID488	TDI, TMS Hold time after rising TCK.	TCK_THD	20			nS
SID489	TCK to TDO Data Valid (high-Z to active).	TCK_TDOV	50			nS	For MF mode , 40 shall be used.
SID490	TCK to TDO Data Valid (active to high-Z).	TCK_TDOZ	40			nS
SID491	JTAG TDO Hold Time	JTAG_TDO_HOLD			5	nS
SID492	JTAG Input Transition Time	JTAG_INPUT_TRANSITION_TIME			5	nS
JTAG Boundary Scan Parameters for 1.1 V (LP) mode operation:
SID468	TCK low	TCKLOW	52			nS
SID469	TCK high	TCKHIGH	10			nS
SID469A	CLK_JTAG_PERIOD, 30pF Load	TCKPERIOD		62		nS
SID470	TCK falling edge to output valid	TCK_TDO			40	nS
SID471	Input valid to TCK rising edge	TSU_TCK	12			nS
SID472	Input hold time to TCK rising edge	TCK_THD	10			nS
SID473	TCK falling edge to output valid (high-Z to active).	TCK_TDOV	40			nS
SID474	TCK falling edge to output valid (active to high-Z ).	TCK_TDOZ	40			nS
SID474A	JTAG_BSCAN_TDO_HOLD	TCK_TDOH			5	nS
JTAG Boundary Scan Parameters for 1.0 (MF) and 0.9 V (ULP) mode operation:
SID475	TCK low	TCKLOW	102			nS
SID476	TCK high	TCKHIGH	20			nS
SID476A	CLK_JTAG_PERIOD, 30pF Load	TCKPERIOD		122		nS
SID478	TCK falling edge to output valid	TCK_TDO			80	nS
SID479	Input valid to TCK rising edge	TSU_TCK	22			nS
SID480	Input hold time to TCK rising edge	TCK_THD	20			nS
SID481	TCK falling edge to output valid (high-Z to active).	TCK_TDOV	80			nS
SID482	TCK falling edge to output valid (active to high-Z ).	TCK_TDOZ	80			nS

Ordering information

Ordering information

lists the PSC3P2x, PSC3M3x device part numbers and features. All devices include Arm® Cortex®-M33 with 100 MHz CPU speed, 64 KB SRAM, 2 ch CAN FD, 4 ch 32-bit timer, 16 ch 16-bit timer, 5x comparators, Smart I/O, and CryptoLite.

Table 26.

Ordering information

Product	Flash	ADC	CORDIC accelerator	MOTIF	SCB(UART, SPI, I2C)	CANFD	Pin
PSC3P2EDLGQ1	128 KB	6 Msps, 12 ch	No		4		VQFN-48
PSC3P2FDS2LGQ1	256 KB	6 Msps, 12 ch	No		47		VQFN-48
PSC3P2EDABQ1	128 KB	6 Msps, 12 ch	No		47		E-LQFP-48
PSC3P2FDS2ABQ1	256 KB 8	6 Msps, 12 ch	No		47		E-LQFP-48
PSC3P2EDLHQ1	128 KB	6 Msps, 18 ch	No		6		VQFN-64
PSC3P2FDS2LHQ1	256 KB8	6 Msps, 18 ch	No		6		VQFN-64
PSC3P2EDACQ1	128 KB	6 Msps, 18 ch	No		6		E-LQFP-64
PSC3P2FDS2ACQ1	256 KB8	6 Msps, 18 ch	No		6		E-LQFP-64
PSC3M3EDLGQ1	128 KB	6 Msps, 12 ch	Yes	Hall/Encoder	47	2 ch	VQFN-48
PSC3M3FDS2LGQ1	256 KB8	6 Msps, 12 ch	Yes	Hall/Encoder	47	2 ch	VQFN-48
PSC3M3EDABQ1	128 KB	6 Msps, 12 ch	Yes	Hall/Encoder	47	2 ch	E-LQFP-48
PSC3M3FDS2ABQ1	256 KB8	6 Msps, 12 ch	Yes	Hall/Encoder	47	2 ch	E-LQFP-48
PSC3M3EDLHQ1	128 KB	6 Msps, 18 ch	Yes	Hall/Encoder	6	2 ch	VQFN-64
PSC3M3FDS2LHQ1	256 KB8	6 Msps, 18 ch	Yes	Hall/Encoder	6	2 ch	VQFN-64
PSC3M3EDACQ1	128 KB	6 Msps, 18 ch	Yes	Hall/Encoder	6	2 ch	E-LQFP-64
PSC3M3FDS2ACQ1	256 KB8	6 Msps, 18 ch	Yes	Hall/Encoder	6	2 ch	E-LQFP-64

Part number nomenclature

PSOC™ Control C3 MPN decoder:

PS C3 A B CC DD E FF G H II J K

Field	Description	Values	Meaning
PS	Brand	PS	Brand
C3	Family	C3	Family
A	Series	P	Power control
		M	Motor control
B	Sub-series	Entry Line	1-3
		Main Line	4-6
		Performance Line	7-9
CC	Memory (Flash/SRAM)	A	8 KB
		B	16 KB
		C	32 KB
		D	64 KB
		E	128 KB
		F	256 KB
		G	512KB
		H	768 KB
		J	1 MB
		K	2 MB
		L	3 MB
		M	4 MB
		N	6 MB
		O	7 MB
		P	8 MB
DD	Security	S2	PSA L2(PSA certification level)
E	Special attributes	D	Dual Core
		P	Programmable Power Control Sub-System
FF	Package	AB	EQFP-48 (0.5 mm)
		AC	EQFP-64 (0.5 mm)
		AF	EQFP-80 (0.5 mm)
		AH	QFP-100 (0.5 mm)
		AI	QFP-128 (0.5 mm)
		AE	QFP-144 (0.5 mm)
		LB	VQFN-24 (0.5 mm)
		LC	VQFN-32 (0.5 mm)
		LE	VQFN-40 (0.4 mm)
		LF	VQFN-48 (0.35 mm)
		LG	VQFN-48 (0.4 mm)
		LH	VQFN-64 (0.4 mm)
G	Temperature	C	Consumer (0°C to +70°C)
		I	Industrial (–40°C to +85°C)
		Q	Extended range (–40°C to +105°C)
H	Maximum Core Frequency	1	100 - 199 MHz
		2	200 - 299 MHz
II	Sample (Optional)	ES	Engineering Sample
J	Revision		Base
		A	Die revision
K	Packing (Optional)	T	Tape & Reel
			Tray

Package information

The PSC3P2xD and PSC3M3xD devices are offered in VQFN-48, E-LQFP-48, VQFN-64, and E-LQFP-64 packages..

For pinout details, see

Pins

.

Table 27.

Package dimensions

Spec ID#	Package	Description	Package Dwg #
PKG_1	E-LQFP-64	E-LQFP-64, 10.0 mm x 10.0 mm x 1.6 mm height with 0.5 mm pitch, 4.0 x 4.0 mm EPAD	002-38595 Rev. *A
PKG_2	VQFN-64	VQFN-64, 8.0 mm x 8.0 mm x 0.9 mm height with 0.4 mm pitch, 4.2 x 4.2 mm EPAD (Sawn type)	002-40328 Rev **
PKG_3	E-LQFP-48	E-LQFP-48, 7.0 mm x 7.0 mm x 1.6 mm height with 0.5 mm pitch, 3.3 x 3.3 mm EPAD	002-40327 Rev **
PKG_4	VQFN-48	VQFN-48, 6.0 mm x 6.0 mm x 0.9 mm height with 0.4 mm pitch, 4.5 x 4.5 mm EPAD (Sawn type)	002-38593 Rev. **

Table 28.

Package characteristics

Parameter	Description	Conditions	Min	Typ	Max	Units
TA	Operating ambient temperature		-40	25	105	°C
TJ	Operating junction temperature, all packages		-40		125	°C
TJA	Package θJA(E-LQFP-64)			31		°C/watt
TJC	Package θJC(E-LQFP-64)			6		°C/watt
TJA	Package θJA(VQFN-64)			30		°C/watt
TJC	Package θJC(VQFN-64)			4		°C/watt
TJA	Package θJA(E-LQFP-48)			31		°C/watt
TJC	Package θJC(E-LQFP-48)			5		°C/watt
TJA	Package θJA(VQFN-48)			31		°C/watt
TJC	Package θJC(VQFN-48)			3		°C/watt

Thermal calculations

The maximum junction temperature of the chip can be calculated using the following equation:

T

J

max = T

A

max + (P

D

max × T

JA

)

where:

• T

  J

  max is the maximum junction temperature in °C

• T

  A

  max is the maximum ambient temperature in °C

• P

  D

  max is the maximum power dissipation in the chip in watts

• T

  JA

  is the package junction to ambient thermal resistance

Therefore, for the VQFN-48 package operating at an ambient temperature of 100°C, the maximum power dissipation allowed in the package is given by:

P

D

max = (T

J

• T

A

) / T

JA

= (125 - 100) / 22 = 1.136 W

Table 29.

Solder reflow peak temperature

Package	Maximum peak temperature	Maximum time at peak temperature
All packages	260°C	30 seconds

Table 30.

Package moisture sensitivity level (MSL), IPC/JEDEC J-STD-2

Package	MSL
All packages	MSL3

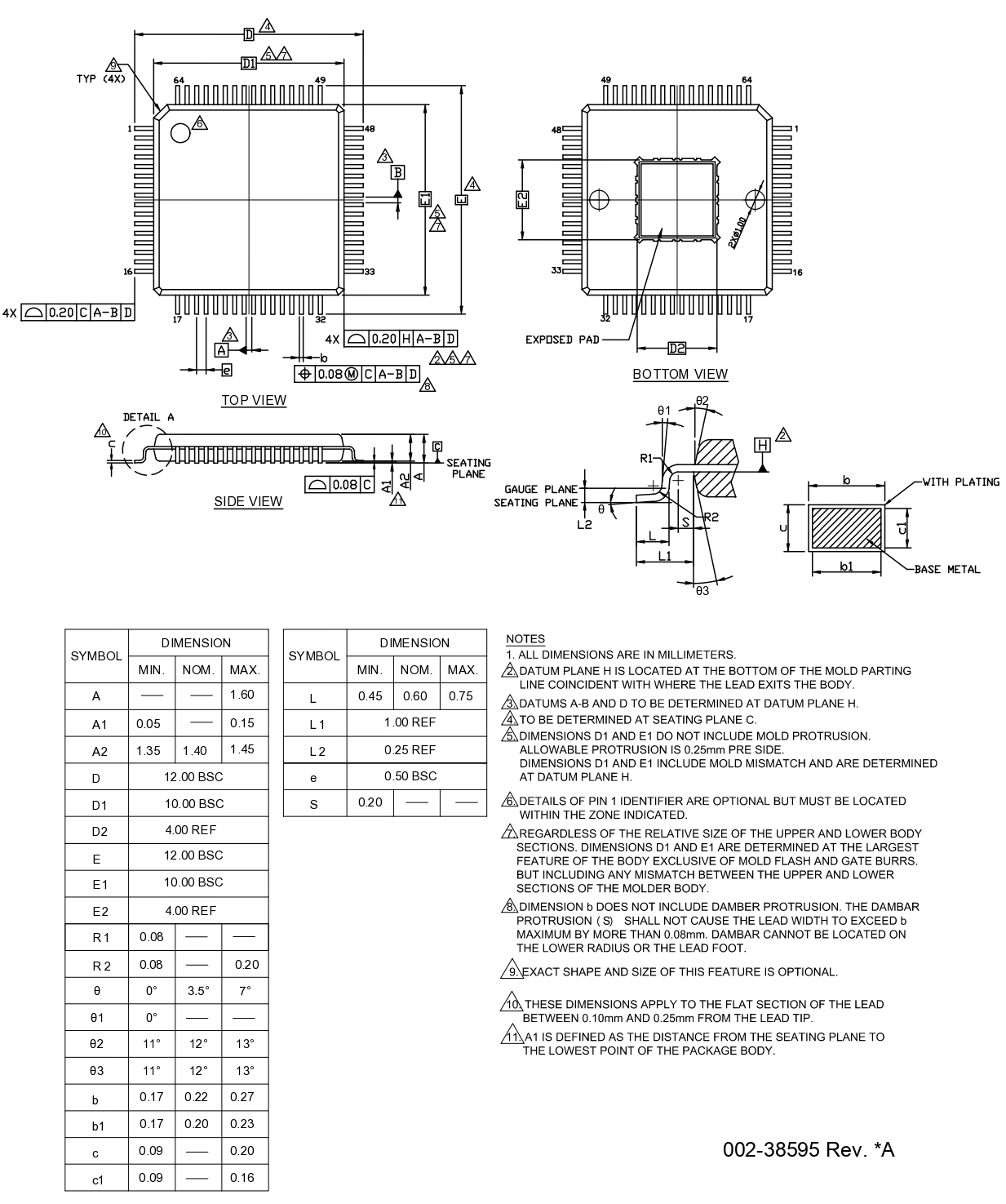

Figure 11.

E-LQFP-64, 10x10x1.4 mm

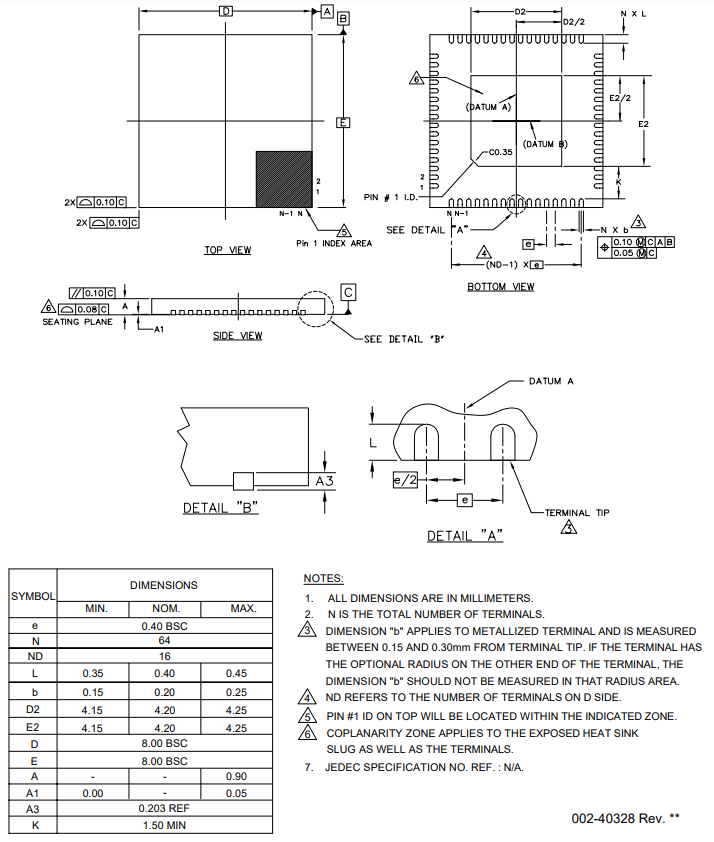

Figure 12.

VQFN-64, 8x8x0.9 mm

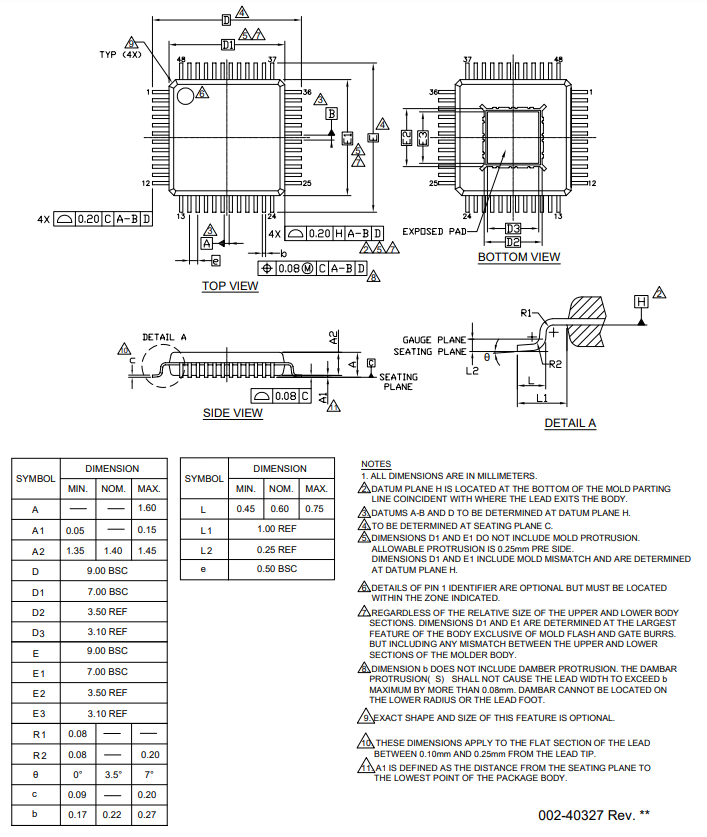

Figure 13.

E-LQFP-48, 7x7x1.6 mm

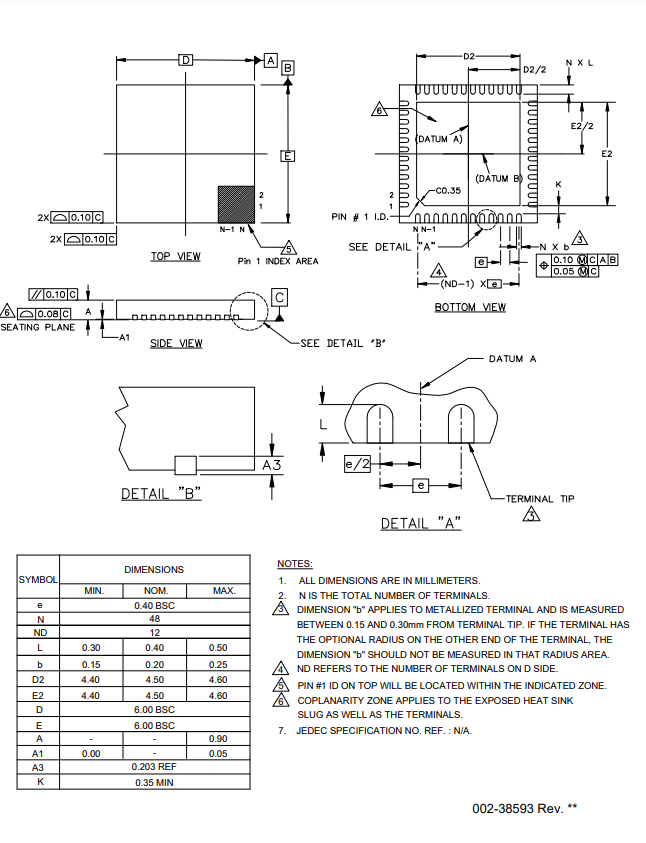

Figure 14.

VQFN-48, 6x6x0.85 mm

Errata

This section describes the errata for the

PSOC™ Control C3

MCU product line. Details include errata trigger conditions, scope of impact, available workarounds, and silicon revision applicability. For more details, contact

Infineon support

.

Part numbers affected

Table 31.

Part numbers affected

Part number	Device characteristics
All	PSOC™ Control C3 MCU product line

PSOC™ Control C3 qualification status

Production silicon

PSOC™ Control C3 errata summary

The following table defines the errata applicability of available product line devices.

Note: Click on any item entry to view its description.

Items	PSOC™ Control C3	Silicon revision	Fix status
[1]. FLL may not start properly after waking up from Deep Sleep in ULP and MF power profiles	All	1	Fix planned
[2]. Device is permanently non-responsive if Flash row 0 contains uncorrectable ECC errors	All	1	Fix planned
[3]. Deep Sleep wake-up operation is not reliable at VDDD < 2.3 V	All	1	Fix not planned
[4]. MCU cannot wake up from Deep Sleep-RAM or Deep Sleep-OFF mode using low-power comparator (LPCOMP) interrupt	All	1	Fix not planned
[5]. SCB: In I2C slave mode, the TXFIFO underflow interrupt is false triggered under certain conditions	All	1	Fix not planned
[6]. SCB: SPI master data output is incorrect for TI mode, MSB first, TX_WDTH=4	All	1	Fix not planned
[7]. MCWDT_LOWER_LIMIT.WDT_LOWER_LIMIT0 is only supported for the first two 16-bit counters	All	1	Fix not planned
[8]. Counter direction change in timer mode after stop then start	All	1	Fix not planned
[9]. TCPWM KILL_STATUS bit is asserted falsely when the counter is not running	All	1	Fix not planned

FLL may not start properly after waking up from Deep Sleep in ULP and MF power profiles
Problem definition	FLL may not start properly after waking up from Deep Sleep in ULP (VCCD = 0.9 V) and MF (VCCD = 1.0 V) power profiles.
Parameters affected	FLL output frequency.
Trigger condition	Deep Sleep wake up in ULP and MF power profiles with FLL enabled.
Scope of impact	FLL operation in ULP and MF modes after wake up from Deep Sleep.
Workaround	Set the SRSS.PWR_TRIM_WAKE_CTL register to 1 after selecting ULP or MF power profiles.
Fix status	Fix planned.

Device is permanently non-responsive if Flash row 0 contains uncorrectable ECC errors
Problem definition	Device is permanently non-responsive if Flash row 0 contains uncorrectable ECC errors.
Parameters affected	Device cannot be used.
Trigger conditions	The Flash can be written using several different addresses. For example, address 0x2200 0000 and 0x3200 0000 map to the same physical row (row 0). If the device is programmed with hex files that contain data at 0x2200 0000 and 0x3200 0000, this may cause an ECC error that is not recoverable Executing multiple Flash write operations without erase may cause Flash row 0 corruption Device reset/power loss during Flash row 0 programming
Scope of impact	Device becomes permanently non-responsive
Workaround	When working with Secure and Non-Secure applications, ensure that the combined hex file does not have data overlap at the Flash row 0 location Always perform an erase operation before programming the Flash row 0 Ensure that the device power supply is stable and XRES is not asserted by user during Flash row 0 programming
Fix status	Fix planned.

Deep Sleep wake-up operation is not reliable at VDDD < 2.3 V
Problem definition	For VDDD < 2.3 V, Deep Sleep wake-up operation may lead to a system reset.
Parameters affected	MCU wake up from Deep Sleep or Deep Sleep-RAM modes.
Trigger condition	When device VDDD < 2.3 V, device is in Deep Sleep and a wake-up interrupt is triggered.
Scope of impact	Device is reset.
Workaround	Use VDDD ≥ 2.3 V when using Deep Sleep and Deep Sleep-RAM modes.
Fix status	Fix not planned.

MCU cannot wake up from Deep Sleep-RAM or Deep Sleep-OFF mode using low-power comparator (LPComp) interrupt
Problem definition	If LPComp interrupt is configured as wake up source for Deep Sleep-RAM or Deep Sleep-OFF mode, MCU cannot wake up when LPComp interrupt is asserted.
Parameters affected	MCU wake up from Deep Sleep-RAM or Deep Sleep-OFF modes.
Trigger condition	LPComp interrupt event for wake up from Deep Sleep-RAM or Deep Sleep-OFF modes.
Scope of impact	LPComp peripheral cannot be used as a wakeup source for Deep Sleep-RAM or Deep Sleep-OFF modes.
Workaround	Use Deep Sleep mode instead of Deep Sleep-RAM or Deep Sleep-OFF.
Fix status	Fix not planned.

SCB: In I2C slave mode, the TXFIFO underflow interrupt is false triggered under certain conditions
Problem definition	SCB: In I2C slave mode, the TXFIFO underflow interrupt is falsely triggered if an external master sends an ACK for the final byte read operation before the STOP or RESTART condition.
Parameters affected	TXFIFO underflow interrupt during I2C slave transmit operation.
Trigger condition	Triggered when an external I2C master sends an ACK for the final byte read transaction before STOP or RESTART.
Scope of impact	SCB in I2C slave mode during normal read operation.
Workaround	External I2C master needs to send a NACK for the last read operation before STOP or RESTART.
Fix status	Fix not planned.

SCB: SPI master data output is incorrect for TI mode, MSB first, TX_WDTH=4
Problem definition	If SCB is configured as SPI master TI mode, transmit FIFO is configured with 8 bits per FIFO data element (MEM_WIDTH=0), and transmit data frame is configured for 5 bits (TX_CTRL width=4), TX_CTRL.MSB_FIRST=1, the data output is incorrect.
Parameters affected	SPI data output is incorrect.
Trigger condition	SCB is configured as SPI master TI mode with an 8-bit transmit FIFO data element and TX_WDTH=4.
Scope of impact	Impacted in one specific configuration detailed above.
Workaround	None.
Fix status	Fix not planned.

MCWDT_LOWER_LIMIT.WDT_LOWER_LIMIT0 is only supported for the first two 16-bit counters
Problem definition	MCWDT_LOWER_LIMIT.WDT_LOWER_LIMIT0 is only supported for the first two 16-bit counters. It is disabled when the third 32-bit counter is cascaded (MCWDT_CONFIG.WDT_CASCADE1_2 == 1).
Parameters affected	Cascading of MCWDT counters beyond the first two 16-bit counters.
Trigger condition	When MCWDT_CONFIG.WDT_CASCADE1_2 == 1.
Scope of impact	MCWDT_LOWER_LIMIT.WDT_LOWER_LIMIT0 is only supported for the first two 16-bit counters.
Workaround	None.
Fix status	Fix not planned.

Counter direction change in timer mode after stop then start
Problem definition	In timer mode, value of TCPWM0_GRPx_CNTx_CTRL.UP_DOWN_MODE may change when the counter is stopped.
Parameters affected	Counter direction in timer mode.
Trigger condition	After counter is stopped and then started again in timer mode, direction may change.
Scope of impact	TCPWM in timer mode.
Workaround	When the counter is stopped, update the TCPWM0_GRPx_CNTx_CTRL.UP_DOWN_MODE value as per intended direction before restarting the counter.
Fix status	Fix not planned.

TCPWM KILL_STATUS bit is asserted falsely when the counter is not running
Problem definition	The KILL_STATUS bit is asserted falsely when the counter is not running.
Parameters affected	Only the KILL_STATUS flag bit visibility in software. PWM outputs are not impacted.
Trigger condition	Triggered when kill is enabled and the counter is not running due to: Run mode set to one shot (TCPWM0_GRPx_CNTx_CTRL.ONE_SHOT = 1) Counter is enabled (TCPWM0_GRPx_CNTx_CTRL.ENABLED = 1) but has not yet started running after being enabled
Scope of impact	Only when the counter is not running.
Workaround	Ignore the KILL_STATUS in the software when the counter is not running (TCPWM0_GRPx_CNTx_STATUS.RUNNING = 0).
Fix status	Fix not planned.

Acronyms

Table 32.

Acronyms used in this document

Acronym	Description
ADC	analog-to-digital converter
AES	advanced encryption standard
AMUX	analog multiplexer
BLDC	brushless direct current
BOD	brown-out detect
CAN	controller area network
CORDIC	coordinate rotation digital computer
CSV	clock supervision
DAC	digital to analog converter
DFU	device firmware upgrade
DSI	digital signal interconnect
DSP	digital signal processor
DMA	direct memory access
ECC	error correcting code
ECO	external crystal oscillators
ETB	embedded trace buffer
ETM	embedded trace macrocell
FET	field effect transistor
FIFO	first in, first out
FOC	field-oriented control
FPU	floating point unit
GPIO	general-purpose input/output
HPPASS	high-performance programmable analog subsystem
HSIOM	high-speed I/O matrix
I-cache	instruction-cache
I2C	inter-integrated circuit
IHO	internal high-speed oscillator
ILO	low-speed oscillator
IMO	internal main oscillator
IPC	inter-processor communication
IRQ	interrupt request
ISR	interrupt service routine
LPComp	low-power comparator
LUT	lookup table
LVD	low-voltage detection
LVTTL	low-voltage transistor-transistor logic
MCWDT	multi-counter watchdog timer
MPU	memory protection unit
NVIC	nested vectored interrupt controller
PAL	programmable array logic
PLD	programmable logic device
PLL	phase-locked loops
POR	power-on reset
ROM	read-only memory
RSA	rivest-shamir-adleman, a public-key cryptography algorithm
RTC	real-time clock
RWW	read-while-write
S/H	sample/hold
SAR	successive approximation register
SAU	secure attribution unit
SCB	serial communication blocks
SHA	secure hash algorithm
SPI	serial peripheral interface
SRAM	static random access memory
SRSS	system resources subsystem
TCPWM	timer/counter pulse-width modulator
TRNG	true random number generator
UART	universal asynchronous transmitter receiver
WCO	watch crystal oscillator
WIC	wakeup interrupt controller
XRES	external reset input pin

Document conventions

Units of measure

Table 33.

Units of measure

Symbol	Unit of measure
°C	degree Celsius
KB	1024 bytes
kHz	kilohertz
Mbps	megabits per second
Msps	million samples per second
MHz	megahertz
ns	nanosecond
%	percent
V	volt

Revision history

Document version	Date of release	Description of changes
**	2024-02-09	Initial release
*A	2024-05-29	Updated package images on first page Updated Figure 1 Updated Detailed features section Added the Device firmware update (DFU) section Updated the Pins section Updated the Electrical specifications section Updated the Package information section Updated the Errata section
*B	2024-12-20	Updated image and features on first page Updated Figure 1 Updated the Detailed features section Updated the Chip-level functional description section Updated the Clock system section Updated the 12-bit SAR analog-to-digital converter (ADC) section Updated the Serial communication block (SCB) section Updated the Trigger multiplexer (Trigger MUX) section Updated the Device firmware update (DFU) section Added the Serial wire JTAG debug port/Embedded trace macrocell section Updated the Pins section Updated the GPIO alternate functions tables section Updated the Electrical specifications section Updated the Ordering information section Updated the Package information section Updated the Errata section Publish to web
*C	2025-04-15	Updated features on first page Updated the Power section Updated the Device firmware update (DFU) section Updated the Serial wire JTAG debug port/Embedded trace macrocell section Updated the Pins section Updated the GPIO alternate functions tables section Updated the Electrical specifications section Updated the Package information section Updated the Document conventions section

Trademarks

PSOC™, formerly known as PSoC™, is a trademark of Infineon Technologies. Any references to PSoC™ in this document or others shall be deemed to refer to PSOC™.
