AN230370 Precision analog channel subsystem in PSoC 4 HV PA family

About this document

Scope and purpose

This application note introduces you to the precision analog channel subsystem (PACSS) of PSoC™ 4 HV precision analog (PA) family MCUs. This application note also guides you to develop hardware and firmware design for battery monitoring application.

Intended audience

This document is intended for hardware and firmware design engineers.

Introduction

This application note provides an overview of the precision analog channel subsystem (PACSS) with the CY8C41xxLCE-HV4xx series from the PSoC™ 4 high-voltage (HV) precision analog (PA) family. PSoC™ 4 HV PA is a fully integrated programmable embedded system for battery monitoring and management. The system features an Arm® Cortex® M0+ processor and programmable and reconfigurable analog and digital blocks. To get a better understanding of the PACSS functionality and terminology used in this application note, it is a good idea to read "Section 21. Precision analog channel subsystem" of the

architecture reference manual (RM)

Precision analog channel subsystem overview

The PSoC™ 4 HV PA precision analog channel subsystem (PACSS) is a high-performance data acquisition subsystem consisting of two physical analog channels and four physical digital channels. The PACSS contains of the following blocks:

Analog delta-sigma modulator (DSM) system
- Two analog channels
- Channel multiplexer
Digital data system
- Four digital channels (with/without FIR filter)
- Data storage
Automatic gain control
- Gain multiplexer
I/O components
- Input multiplexer
- Two high-voltage (HV) input dividers
- On-die temperature sensor
- External temperature sensor

Figure 1

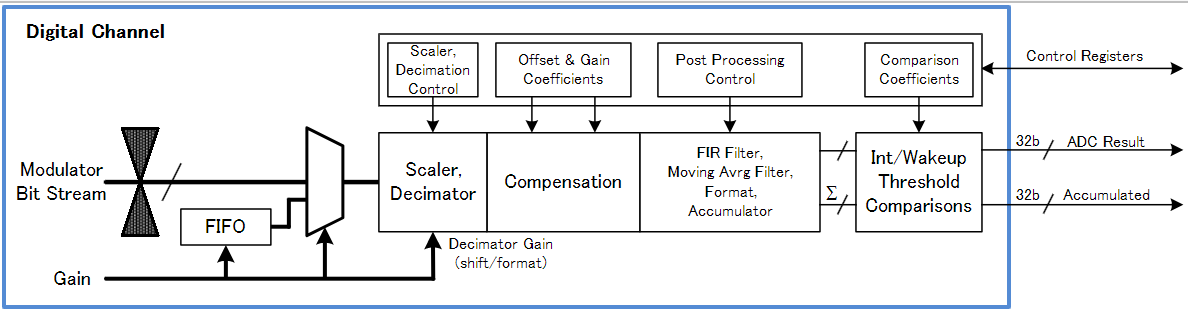

shows the detailed block diagram of the PACSS measurement and acquisition system.

The analog DSM system is composed of the input multiplexer, programmable gain amplifier (PGA), anti-alias filter (AAF), diagnostic multiplexer, buffer, and a delta-sigma modulator. The digital data system is comprised of the scaler, decimator, FIR-type digital filter, accumulator, comparator, and offset and gain calibrations.

Also included in this subsystem are the auto gain correction (AGC) circuit and a temperature sensor with diagnostic capability. Each digital channel can quickly switch between input sources to create a "virtual" ADC that shares one of the analog channels, by using the digital data system. This “virtual” ADC channel can be used for diagnostic purposes.

The sequencer is used to generate control signals for performing all the functions of the channel.

Figure 1.
PACSS measurement and acquisition system

Schematic and layout example

Figure 2

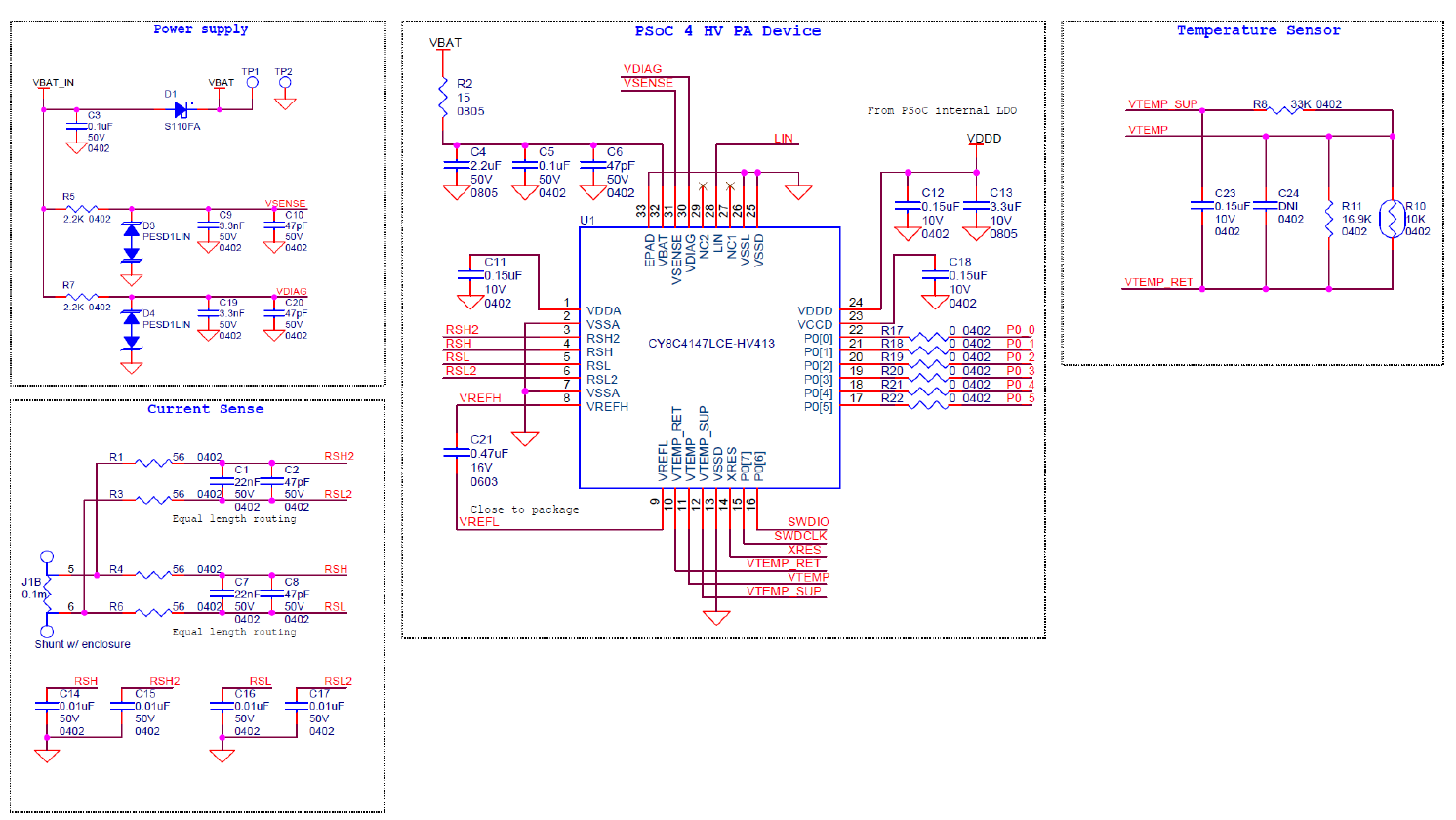

shows general schematic of external circuit for the PACSS system of the PSoC™ 4 HV PA MCU. See

AN230265 - Hardware design guide

for more information of power block.

Figure 2.
General schematic of external circuit for PACSS system

Current sensor line

Schematic example

The current sensor line uses the RSH/RSL and RSH2/RSL2 terminals of the PSoC™ 4 HV PA MCU (See

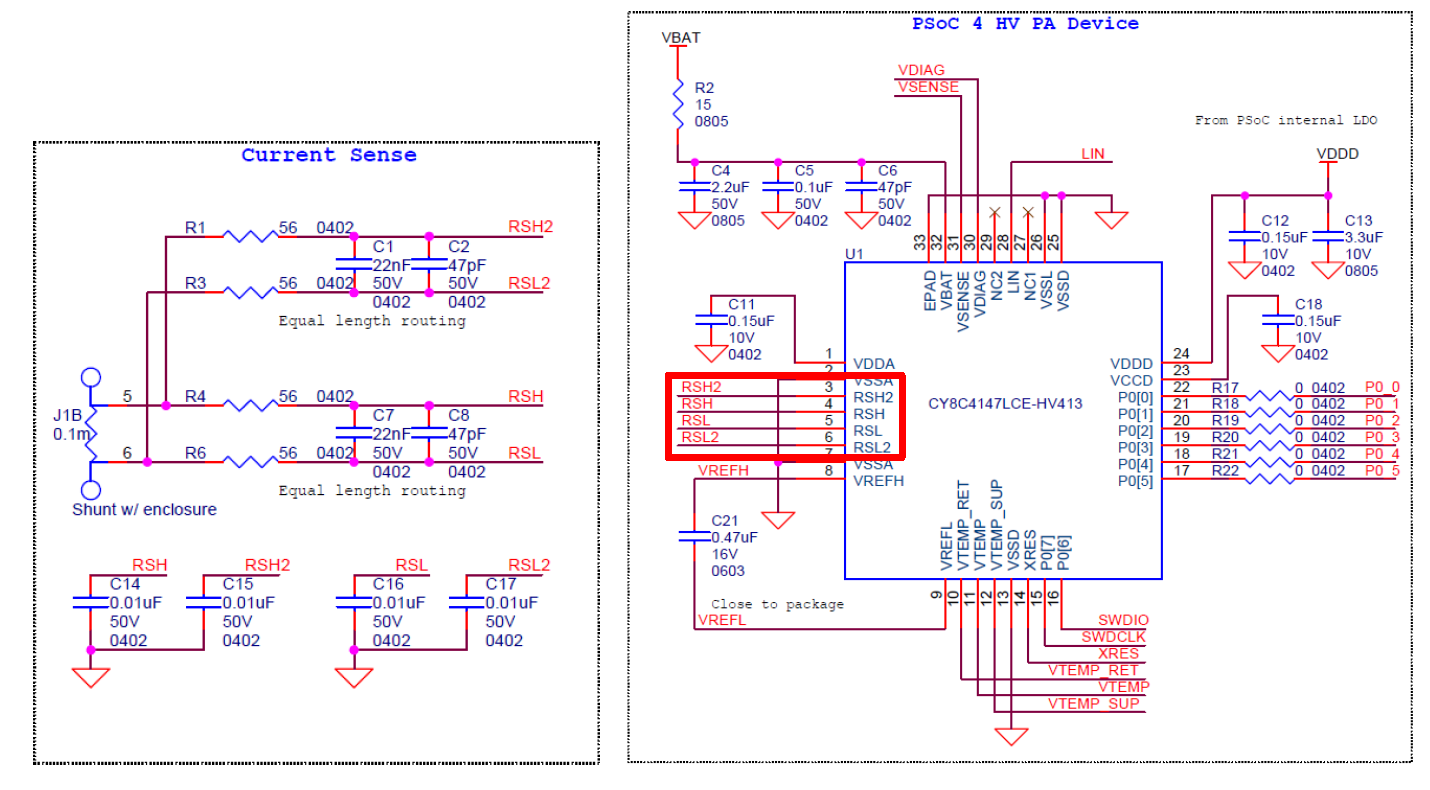

Figure 3

). The RSH/RSL terminals are for the main line, and the RSH2/RSL2 terminals are for diagnostics. In the circuit example below, the sense output of one shunt resistor is routed to both RSH/RSL and RSH2/RSL2 terminals.

The external resistor and capacitor are optional low-pass filter components to attenuate any external noise for your application.

Table 1

shows an example of external components.

Figure 3.
Schematic example of current sensor line

Table 1.
Current sensor external component example
Symbol	Overview	Parameter
Symbol	Overview	Value 1	Value 2	Remark
R1, R3, R4, R6	Resistor for external noise filter	56 Ω ± 1%	> 1/10 W
C1, C7	Capacitor for external noise filter	22 nF X7R	> 50 V
C2, C8	Capacitor for external noise filter	47 pF C0G	> 50 V
C14, C15, C16, C17	Capacitor for external noise filter	0.01 μF X7R	> 50 V

Note:

Max resistor value for current path (R1/R3/R4/R6): 500ohm.

Layout example

Figure 4

shows an example of current sensor line layout. Note that RSH2/RSL2 components are placed on bottom layer which are same position as RSH/RSL. This figure only shows top layer.

Follow these guidelines for the design of the current sensor line circuit on the PSoC™ 4 HV PA MCU:

Match the length of each pair of RSHx and RSLx traces by routing on top or bottom layers of the PCB
Keep the width of RSHx/RSLx traces as the same as the IC Pad width
Do not use through-hole vias on the RSH/RSL trace if possible
Connect shunt resistor tracks from the inner edges of its solder pad to the IC as a differential pair
Keep the distance between RSHx and RSLx traces as the same as the IC terminal pitch if possible
Guard the entire pattern with GND
Place the GND layer under the sensor lines

Voltage sensor line

Schematic example

The voltage sense line uses the VSENSE and VDIAG terminals of the PSoC™ 4 HV PA MCU (See

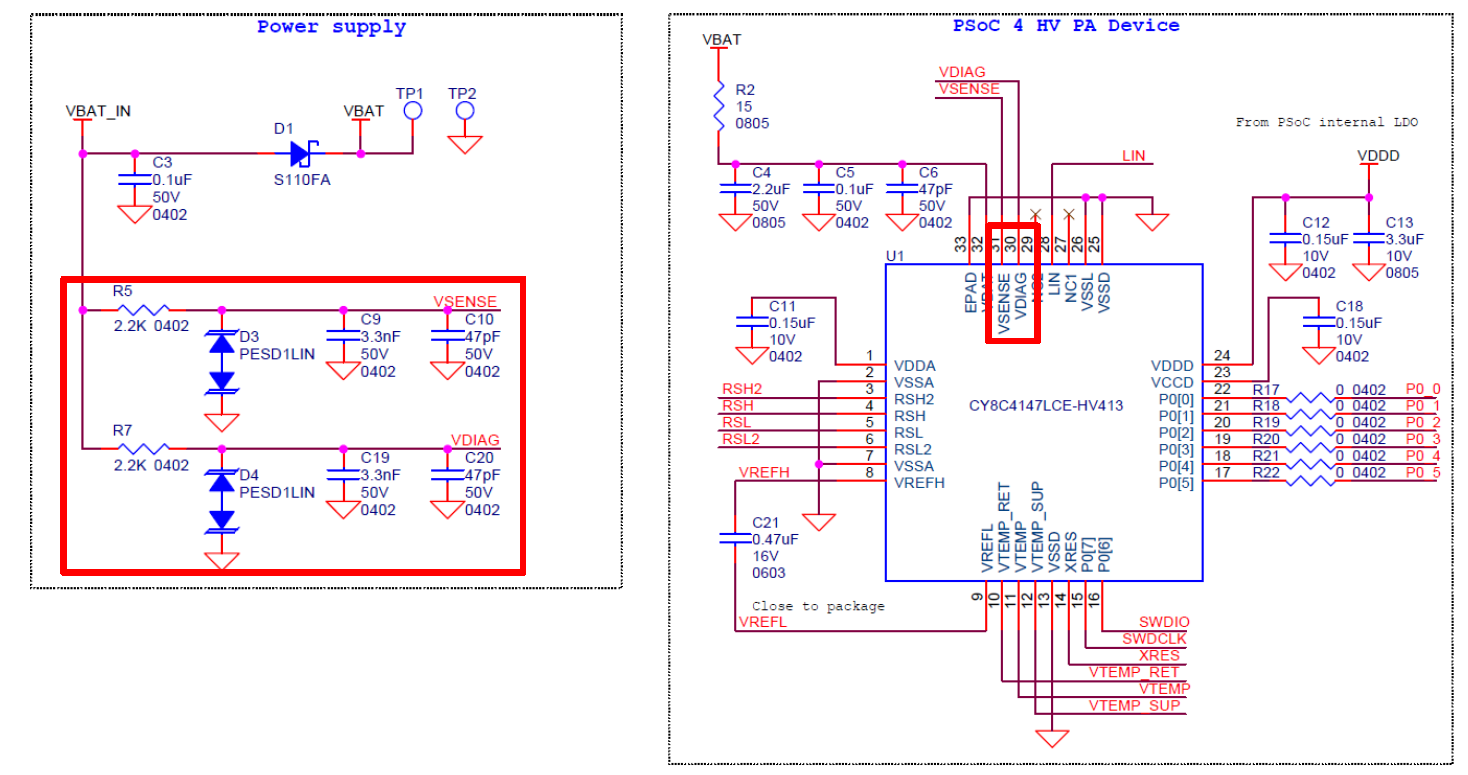

Figure 5

). The VSENSE terminal is for the main line, while the VDIAG terminal is for diagnostic. In the circuit example below, the battery voltage input (VBAT) is divided into two and input to each terminal.

VSENSE and VDIAG inputs are normally connected directly to the battery with a series 2.2-kΩ resistor to measure the battery voltage; the capacitors are for low-pass filtering. The external transient voltage suppressors (TVS) diodes are to protect ESD noise. The TVS diodes are optional components.

Table 2

shows an example of external components.

Figure 5.
Schematic example of voltage sensor line

Table 2.
Voltage sensor external component example
Symbol	Overview	Parameter
Symbol	Overview	Value 1	Value 2	Remark
R5, R7	Resistor for external noise filter	2.2 kΩ ± 1%	> 1/10 W
D3, D4	Transient voltage suppressor (TVS)	Bidirectional	Clamping voltage 44 V	Optional
C9, C19	Capacitor for external noise filter	3.3 nF X7R	> 50 V
C10, C20	Capacitor for external noise filter	47 pF C0G	> 50 V

Note:

Resistor values for voltage path (R5/R7): any deviation from nominal 2.2 kilohm needs to be associated with a reduction in accuracy.

Layout example

Figure 6

shows an example of the voltage sensor line layout.

Follow these guidelines for the design of voltage sensor line circuit on the PSoC™ 4 HV PA MCU:

Length match the VSENSE and VDIAG traces as close as possible
Wire the VSENSE and VDIAG sensor lines from each VBAT point
Keep the trace width in the range of "0.127 mm" to the "IC terminal width"
Guard the entire pattern with GND
Place the GND layer under the sensor line

Temperature sensor line

Schematic example

The temperature sensor line uses the VTEMP_SUP, VTEMP, and VTEMP_RET terminals of the PSoC™ 4 HV PA MCU (See

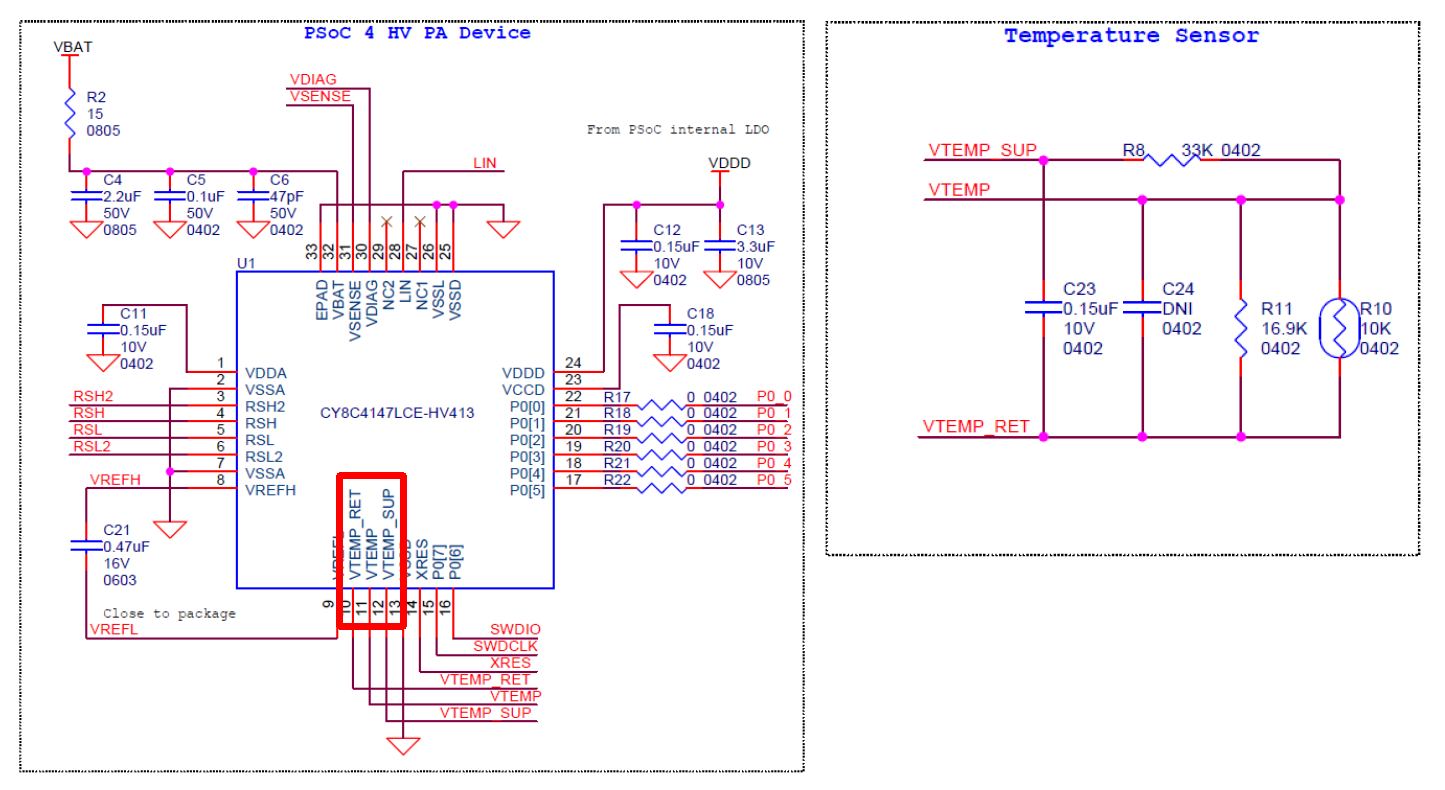

Figure 7

). VTEMP_SUP terminal is the power supply for the external temperature sensor, VTEMP is the temperature voltage input from the external sensor, and VTEMP_RET is the ground signal. In the circuit example below, the capacitors are added for decoupling the temperature sensor line.

The external voltage divider is selected to optimize temperature accuracy and will typically be comprised of a 33-kΩ and 16.9-kΩ fixed resistors (R) and a 10-kΩ nominal NTC thermistor RT (nominal NTC resistance is typically specified at 25°C).

Table 3

shows an example of external components.

Figure 7.
Schematic example of temperature sensor line

Table 3.
Temperature sensor external component example
Symbol	Overview	Parameter
Symbol	Overview	Value 1	Value 2	Remark
R8	Resistor for voltage divider	33 kΩ ± 1%	> 1/10 W
R10	Thermistor	10 kΩ ± 1%	> 1/8 W
R11	Resistor for voltage divider	16.9 kΩ ± 1%	> 1/10 W
C23	Capacitor for external noise filter	0.15 μF X7R	> 10 V

Layout example

Figure 8

shows an example of temperature sensor line layout.

Follow these guidelines for the design of temperature sensor line circuit on the PSoC™ 4 HV PA MCU:

Place the thermistor (R10) as close to hot spot as possible
Keep the VTEMP_SUP, VTEMP, and VTEMP_RET at the same length as possible
Place the filter capacitor (C24) near the VTEMP and VTEMP_RET terminal
Keep the trace width in the range of "0.127 mm" to "IC terminal width"
Guard the entire pattern with GND
Place the GND layer under the sensor line

Battery minus and chassis GND connection

The PSoC™ 4 HV PA MCU can connect a battery minus and chassis GND to each current sensor line (RSH/RSL) and silicon GND (VSSA).

Figure 9

shows the general application block diagram for the intelligent battery system.

This example connects RSH and VSSA to chassis GND and connects RSL to battery minus. In this case, PACSS output will be #1 results in

Table 4

. The output data includes the consumed current of the PSoC™ 4 HV PA board as shown in green (when VSSA connects chassis GND). The polarity will be positive when discharging the battery and negative in charging the battery (When RSH is connected to chassis GND).

User can select the suitable GND connection for your application from

Table 4

Figure 9.
General application block diagram for intelligent battery system

Table 4.
GND connection vs PACSS results
	GND connection	Block diagram	PACSS output
	GND connection	Block diagram	Polarity	Data
1	RSL - Battery minus RSH - Chassis GND VSSA - Chassis GND		Discharge: Plus Charge: Minus	Includes the consumed current of the PSoC™ 4 HV PA board
2	VSSA - Battery minus RSL - Battery minus RSH - Chassis GND		Discharge: Plus Charge: Minus	Does not include the consumed current of the PSoC™ 4 HV PA board
3	VSSA - Battery minus RSH - Battery minus RSL - Chassis GND		Discharge: Minus Charge: Plus	Does not include the consumed current of the PSoC™ 4 HV PA board
4	RSH - Battery minus RSL - Chassis GND VSSA - Chassis GND		Discharge: Minus Charge: Plus	Includes the consumed current of PSoC™ 4 HV PA board

PACSS firmware configuration

Infineon provides the sample driver library (SDL) including startup code as sample firmware. The SDL provides a simple interface to access various peripherals and is used for system validation, hardware bring-up, benchmarks, feasibility studies, and demos. The SDL cannot be used for production purposes because it is not qualified with any automotive standards. The SDL integrates device header files, startup code, and peripheral drivers. The SDL contains a set of firmware drivers that provide APIs for accessing device-specific resources. See

AN230264 - Getting started with PSoC™ 4 HV PA family

for detailed SDL information.

The following sections explain the details of the application programming interface (API) and code examples for PACSS.

Attention:

PACSS firmware configuration is created based on SDL version 3.0.0.

Peripheral drivers

Peripheral drivers are a set of firmware drivers that provide APIs for accessing the hardware. These APIs perform initialization and control activities of each peripheral.

Table 5

lists and describes the interface to each PACSS function. The peripheral drivers of PACSS are located in SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\drivers\adc\rev_b

Note:

The PACSS has many registers to configure it.

Table 5

is simplifying to only expose controls the customer should be using. See

"low_level"

and

"config"

folders in above path for more detailed functions.

See

API details

for more information.

Table 5.
PACSS functions
Function	Description
`cy_adc.c`
`Cy_Adc_StartConversion()`	Trigger a conversion on the enabled primary channels
`Cy_Adc_StartSecondaryConversion()`	Trigger a secondary conversion on the enabled secondary channels
`Cy_Adc_GetResult()`	Read the value in the result register of the specified channel
`Cy_Adc_GetAccumulatorResult()`	Read the value in the accumulated result register of the specified channel
`Cy_Adc_ResetAccumulator()`	Reset the accumulator to zero
`Cy_Adc_SetAccumulatorThreshold()`	Set the accumulator Threshold
`Cy_Adc_SetGroundReference()`	Set the ground connection for the high-voltage divider
`Cy_Adc_EnableSequencer()`	Enable the ADC sequencer and AREF
`Cy_Adc_DisableSequencer()`	Disable the ADC sequencer
`Cy_Adc_EnableReference()`	Configure and enable the high-precision band gap reference (HPBGR)
`Cy_Adc_DisableReference()`	Disable the high-precision band gap reference (HPBGR)
`Cy_Adc_GetInterrupt()`	Get the specified digital channel's interrupt status
`Cy_Adc_GetInterruptMasked()`	Get the DCHAN interrupt status masked by the enabled interrupts
`Cy_Adc_SetInterruptMask()`	Enable the specified interrupt type for the specified channel
`Cy_Adc_ClearInterrupt()`	Clear the specified interrupt
`Cy_Adc_GetInterruptCause()`	Get the interrupt cause
`Cy_Adc_SetGainCorrection()`	Set the gain correction factor for the specified DCHAN
`Cy_Adc_SetOffsetCorrection()`	Set the offset correction factor for the specified DCHAN
`Cy_Adc_SetAGCGainCorrection()`	Set the gain correction factor for the specified AGC gain level
`Cy_Adc_SetAgcOffsetCorrection()`	Set the offset correction factor for the specified AGC gain level
`Cy_Adc_SetVrefLow()`	Set the selection of the low reference of the DCHAN
`Cy_Adc_SetVrefHigh()`	Set the selection of the high reference of the DCHAN
`cy_adc_init_achan.c`
`Cy_Adc_EnableAchan()`	Enable the analog channel
`Cy_Adc_DisableAchan()`	Disable the analog channel
`Cy_Adc_InitAchan()`	Configure the analog channel
`ConfigureBuffer()`	Configure the analog channel buffer
`ConfigurePga()`	Configure the analog channel programmable gain array
`ConfigureReference()`	Configure the analog channel reference
`ConfigureModulator()`	Configure the analog channel modulator
`ConfigureTrigger()`	Configure the analog channel primary/secondary trigger
`cy_adc_init_agc.c`
`Cy_Adc_EnableAgc()`	Enable automatic gain correction (AGC)
`Cy_Adc_DisableAgc()`	Disable automatic gain correction (AGC)
`Cy_Adc_InitAgc()`	Configure automatic gain correction (AGC)
`ConfigureGainLevel()`	Configure the gain level in memory, given the input configuration
`cy_adc_init_channel_chopping.c`
`Cy_Adc_InitAchanChannelChopping()`	Configure the selected analog channel to perform channel chopping.
`cy_adc_init_dchan.c`
`Cy_Adc_EnableDchan()`	Enable the digital channel
`Cy_Adc_DisableDchan()`	Disable the digital channel
`Cy_Adc_InitDchan()`	Configure the digital channel
`Cy_Adc_ConfigureGainLevel()`	Configure the digital channel gain level settings
`ConfigureFIRFilter()`	Configure the digital channel FIR filter coefficients
`Cy_Adc_ConfigureAafMode()`	Configure the anti-alias filter
`cy_adc_init_temperature.c`
`Cy_Adc_EnableTemperature()`	Enable the temperature sensor
`Cy_Adc_DisableTemperature()`	Disable the temperature sensor
`Cy_Adc_InitTemperature()`	Configure the temperature sensor

Code example

Dual convert design (current/voltage)

This example uses "current" channel (ACHAN0) that continuously measures the voltage across the RSH/RSL shunt resistor, and a second channel (ACHAN1) measures the voltage across the HV voltage divider with 16x attenuation. The current and voltage channel use the FIR filter. The results display in millivolts over the UART connection. The code example is located in SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\examples\adc\dual

Each block configuration:

ACHAN 0/DCHAN0 configuration - current sensor
- Continuous sampling mode
- Primary channel
- Stage 1 decimation filter: Sync 3, DR = 64
- Stage 2 decimation filter: Sync 1, DR2 = 6
- Sampling shunt resistor across RSL and RSH
- Zero channel select delay (since this DCHAN has a dedicated ACHAN)
- 15-tap FIR filter
- Accumulate four samples
ACHAN 1/DCHAN1 configuration - voltage sensor
- Continuous sampling mode
- Primary channel
- Stage 1 decimation filter: Sync 3, DR = 64
- Stage 2 decimation filter: Sync 2, DR2 = 6
- Sampling the high-voltage divider between VSENSE and GND
- Zero channel select delay (since this DCHAN has a dedicated ACHAN)
- 15-tap FIR filter
- Unity gain

Figure 10

shows the PACSS sequencer timing for dual convert design.

Note:

The ADC is sampling much faster than the UART output so not all sampled results will be transmitted. This applies to all of the examples.

Figure 11

shows the flow chart for dual convert design, and

Code Listing 1

shows the code example of main function.

Note:

User should compare the code example with the flowchart, and learn how to use the PACSS functions. You cannot copy/paste the code and expect it to work. This applies to all code examples provided in this document.

Figure 11.
Flowchart of dual convert design

Code Listing 1 Main function of dual convert design

int main(void)
{
   cy_en_adc_error_t   error                       = CY_ADC_ERROR;
   int32_t             currentChannelResult        = 0;
   int32_t             voltageChannelResult        = 0;
   float32_t           millivoltsAcrossShunt       = 0.0;
   float32_t           batteryVoltage              = 0.0;

   SystemInit();

   /* Enable DCHAN0 Interrrupt */
   Cy_SysInt_EnableIRQ(CY_PACSS_ADC_DCHAN0_IRQN);
   Cy_SysInt_SetVector(CY_PACSS_ADC_DCHAN0_IRQN, Adc_Dchan0_IntrISR);
   Cy_SysInt_ClearPendingIRQ(CY_PACSS_ADC_DCHAN0_IRQN);
   Cy_Adc_SetInterruptMask(PACSS_DCHAN0, CY_ADC_DCHAN_INTERRUPT_DATA_VAL);

   /* Enable DCHAN1 Interrrupt */
   Cy_SysInt_EnableIRQ(CY_PACSS_ADC_DCHAN1_IRQN);
   Cy_SysInt_SetVector(CY_PACSS_ADC_DCHAN1_IRQN, Adc_Dchan1_IntrISR);
   Cy_SysInt_ClearPendingIRQ(CY_PACSS_ADC_DCHAN1_IRQN);
   Cy_Adc_SetInterruptMask(PACSS_DCHAN1, CY_ADC_DCHAN_INTERRUPT_DATA_VAL);

   /* Enable global interrupts. */
   __enable_irq();

   Example_UartInit();

   /* Divide 24 MHz HF clock to get 3 MHz PACSS Clock */
   Cy_SysClk_PeriphAssignDivider(CY_PACSS_ADC_PCLK, CY_SYSCLK_DIV_16_BIT,
                                   PACSS_DSM_CLK_PERI_DIVIDER_NUM);
   Cy_SysClk_PeriphSetDivider(CY_SYSCLK_DIV_16_BIT,
                               PACSS_DSM_CLK_PERI_DIVIDER_NUM,
                               CY_ADC_PERIPHERAL_CLOCK_DIVIDE_3 MHz);

   /* Enable peripheral divider */
   Cy_SysClk_PeriphEnableDivider(CY_SYSCLK_DIV_16_BIT,
                                   PACSS_DSM_CLK_PERI_DIVIDER_NUM);

   /* Set the pump clock source to the IMO */
   Cy_SysClk_SetSourcePumpClk(CY_SYSCLK_PUMP_SEL_IMO);

   /* Enable the HV Divider on VSENSE */
   Cy_Hvss_Rvid_EnableVS0();

   /***************************************************************************
    * Configure the PACSS
    **************************************************************************/
   Cy_Adc_EnableSequencer(PACSS_MMIO);
   Cy_Adc_EnableReference(PACSS_MMIO);

   /* Sequencer must be enabled 1000us before enabling any analog channels to
      allow the reference currents to settle */
   Cy_SysLib_DelayUs(CY_ADC_REFERENCE_DELAY_US);

   /* ACHAN0 / DCHAN0 config */
   error = Cy_Adc_InitAchan(PACSS_ACHAN0, &cy_stc_adc_achan0_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   error = Cy_Adc_InitAchanChannelChopping(PACSS_ACHAN0,
           &cy_stc_current_channel_chopping_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   Cy_Adc_EnableAchan(PACSS_ACHAN0);
   error = Cy_Adc_InitDchan(PACSS_DCHAN0, &cy_stc_adc_dchan0_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   Cy_Adc_EnableDchan(PACSS_DCHAN0);

   /* ACHAN1 / DCHAN1 config */
   error = Cy_Adc_InitAchan(PACSS_ACHAN1, &cy_stc_adc_achan1_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   error = Cy_Adc_InitAchanChannelChopping(PACSS_ACHAN1,
      &cy_stc_voltage_channel_chopping_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   Cy_Adc_EnableAchan(PACSS_ACHAN1);
   error = Cy_Adc_InitDchan(PACSS_DCHAN1, &cy_stc_adc_dchan1_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   Cy_Adc_EnableDchan(PACSS_DCHAN1);

   /* Analog channel must be enabled for 3us before starting conversions */
   Cy_SysLib_DelayUs(CY_ADC_ACHAN_DELAY_US);

   /* AGC */
   Cy_Adc_InitAgc(PACSS_MMIO, &cy_stc_adc_agc_config);
   Cy_Adc_EnableAgc(PACSS_MMIO);

   /* Calibrate the ADC channels */
   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN0);
   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN1);
   Adc_Calibrate();

   /* Start the conversion process */
   Cy_Adc_StartConversion(PACSS_MMIO);

   /* Opening UART Comment */
   Example_UartPrintf("\r\nADC Dual Example\r\n");

   /* Settle the FIR filters */
   uint32_t voltageFilterSettle = 0;
   uint32_t currentFilterSettle = 0;
   while ((voltageFilterSettle < CY_ADC_FIR_NUM_TAPS) || (currentFilterSettle <
          CY_ADC_FIR_NUM_TAPS))
   {
       if(g_voltageDataValid)
       {
           g_voltageDataValid = false;
           voltageFilterSettle++;
       }
       if(g_currentDataValid)
       {
           g_currentDataValid = false;
           currentFilterSettle++;
       }
   }

   while (1)
   {
       if(g_currentDataValid)
       {
           g_currentDataValid = false;

           Cy_Adc_GetResult(PACSS_DCHAN0, &currentChannelResult);
           millivoltsAcrossShunt = Cy_Adc_CountsToMillivolts(currentChannelResult,
               CY_ADC_CURRENT_CHANNEL, CY_ADC_SAMPLE_RATE_8KSPS, CY_ADC_HBPGR_VOLTAGE);

           Example_UartPrintf("Current (mV): %.2f\r\n", millivoltsAcrossShunt);
       }

       if(g_voltageDataValid)
       {
           g_voltageDataValid = false;

           Cy_Adc_GetResult(PACSS_DCHAN1, &voltageChannelResult);
           batteryVoltage = Cy_Adc_CountsToVolts(voltageChannelResult,
                   CY_ADC_VOLTAGE_CHANNEL,
                   CY_ADC_SAMPLE_RATE_8KSPS,
                   CY_ADC_HBPGR_VOLTAGE);

           batteryVoltage = batteryVoltage * HVDIV_ATTENUATION;
           Example_UartPrintf("Voltage (V): %.2f\r\n", batteryVoltage);
       }
   }
}

Triple convert design (current/voltage/temperature)

This example uses same configuration of current and voltage channels from the 'dual' example. Additionally, a third channel measures the external temperature at a 20-millisecond interval triggered by a PWM. The temperature measurement is a secondary measurement and it shares ACHAN1 with the battery voltage (VSENSE) measurement. The results display in millivolts over the UART connection. The code example is located in SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\examples\adc\triple

Each block configuration:

ACHAN 0/DCHAN0 configuration - current sensor
- Same as dual convert design
ACHAN 1/DCHAN1 configuration - voltage sensor
- Same as dual convert design
ACHAN 1/DCHAN2 configuration - external temperature sensor
- Single shot sampling mode
- Secondary channel
- Stage 1 decimation filter: Sync 3, DR = 64
- Stage 2 decimation filter: Sync 2, DR2 = 1
- Sampling the external temperature sensor (VTEMP and VTEMP_RET)
- 17 clock channel select delay to allow ADC to settle between input switching
- VREFH of VDDA/3 and VREFL to VTEMP_RET to keep the measurement ratio-metric since the source for the thermistor circuit is VDDA
- Unity gain

Figure 12

shows the PACSS sequencer timing for triple convert design.

Figure 13

shows the flow chart for triple convert design, and

Code Listing 2

shows the code example of main function.

Figure 13.
Flowchart of triple convert design

Code Listing 2 Main function of triple convert design

int main(void)
{
   cy_en_adc_error_t   error                       = CY_ADC_ERROR;
   int32_t             currentChannelResult        = 0;
   int32_t             voltageChannelResult        = 1;
   int32_t             temperatureChannelResult    = 1;
   float32_t           millivoltsAcrossShunt       = 0.0;
   float32_t           millivoltsTempSensor        = 0.0;
   float32_t           batteryVoltage              = 0.0;

   ~~~~~~ omitted (same as dual) ~~~~~~

   /* Enable DCHAN2 Interrrupt */
   Cy_SysInt_EnableIRQ(CY_PACSS_ADC_DCHAN2_IRQN);
   Cy_SysInt_SetVector(CY_PACSS_ADC_DCHAN2_IRQN, Adc_Dchan2_IntrISR);
   Cy_SysInt_ClearPendingIRQ(CY_PACSS_ADC_DCHAN2_IRQN);
   Cy_Adc_SetInterruptMask(PACSS_DCHAN2, CY_ADC_DCHAN_INTERRUPT_DATA_VAL);

   __enable_irq(); /* Enable global interrupts. */

   /* Initialize GPIOs for measuring temperature */
   External_TempSensorInit();

   ~~~~~~ omitted (same as dual) ~~~~~~

   /*--------------------------------*/
   /* Clock Configuration for TCPWM */
   /*--------------------------------*/

   /* Assign a programmable divider for TCPWM_CNT0 */
   Cy_SysClk_PeriphAssignDivider(PCLK_TCPWM_CLOCKSx_COUNTER,
                                 (cy_en_divider_types_t)CY_SYSCLK_DIV_16_BIT,
                                 TCPWM_CNT_CLK_PERI_DIVIDER_NUM);
   Cy_SysClk_PeriphSetDivider((cy_en_divider_types_t)CY_SYSCLK_DIV_16_BIT,
                              TCPWM_CNT_CLK_PERI_DIVIDER_NUM, TCPWM_CLOCK_16DIV);
   Cy_SysClk_PeriphEnableDivider((cy_en_divider_types_t)CY_SYSCLK_DIV_16_BIT,
                                 TCPWM_CNT_CLK_PERI_DIVIDER_NUM);

   /* Set the pump clock source to the IMO */
   Cy_SysClk_SetSourcePumpClk(CY_SYSCLK_PUMP_SEL_IMO);

   // Enable the HV Divider on VSENSE
   Cy_Hvss_Rvid_EnableVS0();

   /* Assign PWM compare match to ADC Trigger 0 */
   Cy_TrigMux_Connect(TRIG2_IN_TCPWM_TR_COMPARE_MATCH0, TRIG2_OUT_PACSS_TR_START0);

   /***************************************************************************
    * Configure the PACSS
    **************************************************************************/

   ~~~~~~ omitted (same as dual) ~~~~~~

   // Temperature Sensor
   Cy_Adc_EnableTemperature(PACSS_MMIO);

   ~~~~~~ omitted (same as dual) ~~~~~~

   error = Cy_Adc_InitDchan(PACSS_DCHAN2, &cy_stc_adc_dchan2_config);
   CY_ASSERT(CY_ADC_ERROR_NONE == error);
   Cy_Adc_EnableDchan(PACSS_DCHAN2);

   ~~~~~~ omitted (same as dual) ~~~~~~

   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN2);

   ~~~~~~ omitted (same as dual) ~~~~~~

   /* Initialize TCPWM_CNTx_COUNTER in PWM Mode & Enable */
   Cy_Tcpwm_DisableCounter(TCPWM_CNTx_COUNTER);
   Cy_Tcpwm_Pwm_Init(TCPWM_CNTx_COUNTER, &cy_stc_pwm_config);
   Cy_Tcpwm_EnableCounter(TCPWM_CNTx_COUNTER);
   Cy_Tcpwm_EnableCounterCommand(TCPWM_CNTx_COUNTER, CY_TCPWM_CMD_COUNTER_START);

   ~~~~~~ omitted (same as dual) ~~~~~~

   while (1)
   {

   ~~~~~~ omitted (same as dual) ~~~~~~

       if (g_temperatureDataValid)
       {
           g_temperatureDataValid = false;

           Cy_Adc_GetResult(PACSS_DCHAN2, &temperatureChannelResult);
           millivoltsTempSensor = Cy_Adc_CountsToMillivolts(
                   temperatureChannelResult,
                   CY_ADC_DIAGNOSTIC_CHANNEL,
                   CY_ADC_SAMPLE_RATE_48KSPS,
                   CY_ADC_VDDA_BY_3_VOLTAGE);

           Example_UartPrintf("Diagnostic, Temp Sensor Voltage (mV): %.2f\r\n", millivoltsTempSensor);
       }
   }
}

Multi convert design (current/voltage/multi data)

This example uses the same configuration of current and voltage channels from the 'dual' and 'triple' examples except that the primary channels run at 2 ksps instead of 8 ksps. Also, instead of just measuring temperature, the third channel cycles through the following measurements:

External temperature
Internal die temperature: Resistor (measure twice)
Internal die temperature: Bipolar transistor (measure twice)
VDIAG vs ground
RSH2/RSL2
Shunt disconnection detect (measure twice)
SRSS bandgap reference vs Ground
High-precision bandgap reference (HPBGR) vs Ground

Note:

Die temperature measurement and shunt disconnection detection both require two ADC results.

All results display over the UART connection. The code example is located in SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\examples\adc\rev_b\multi

Each block configuration:

ACHAN 0/DCHAN0 configuration - current sensor
- Same as dual convert design except DR and DR2 values
- Stage 1 decimation filter: Sync 3, DR = 128
- Stage 2 decimation filter: Sync 2, DR2 = 12
ACHAN 1/DCHAN1 configuration - Voltage Sensor
- Same as dual convert design except DR and DR2 values
- Stage 1 decimation filter: Sync 3, DR = 128
- Stage 2 decimation filter: Sync 2, DR2 = 12
ACHAN 1/DCHAN2 configuration - Multiple diagnostic inputs
- Single shot sampling mode
- Secondary channel
- Stage 1 decimation filter: Sync 3, DR = 64
- Stage 2 decimation filter: Sync 2, DR2 = 1
- Sampling the multiple diagnostic inputs
- 17 clock channel select delay to allow ADC to settle between input switching

Figure 14

shows the PACSS sequencer timing for multi convert design.

Figure 15

shows the flow chart for multi convert design, and

Code Listing 3

shows the code example of main function.

Figure 15.
Flowchart of multi convert design

Code Listing 3 Main function of multi convert design

int main(void)
{
   cy_en_adc_error_t       error                       = CY_ADC_ERROR;
   int32_t                 currentChannelResult        = 0;
   int32_t                 voltageChannelResult        = 1;
   int32_t                 diagnosticChannelResult     = 1;
   float32_t               millivoltsAcrossShunt       = 0.0;
   float32_t               batteryvoltage              = 0.0;
   int32_t                 diagnosticState             = 0;
   int32_t                 totalDiagnostic             = 0;
   adc_diagnostic_config_t diagnosticConfigs[]    = {
           DIAGNOSTIC_CHANNEL_CONFIG_EXTERNAL_TEMP,
           DIAGNOSTIC_CHANNEL_CONFIG_RESISTOR_ONE,
           DIAGNOSTIC_CHANNEL_CONFIG_RESISTOR_UNIT,
           DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_ONE,
           DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_UNIT,
           DIAGNOSTIC_CHANNEL_CONFIG_VDIAG,
           DIAGNOSTIC_CHANNEL_CONFIG_RSH2,
           DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_PULLUP,
           DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_SHUNT,
           DIAGNOSTIC_CHANNEL_CONFIG_SRSS_REF,
           DIAGNOSTIC_CHANNEL_CONFIG_HPBGR_REF
   };

   g_previousTemperature          = CY_ADC_ROOM_TEMPERATURE_FIXED;
   g_nextTemperature              = CY_ADC_ROOM_TEMPERATURE_FIXED;

   totalDiagnostic = sizeof(diagnosticConfigs) / sizeof(diagnosticConfigs[0]);

   ~~~~~~ omitted (same as triple) ~~~~~~

   /* Initialize the die temp configurations */
   Cy_Adc_InitializeDieTempConfigs(
           &cy_stc_die_temp_one_config,
           &cy_stc_die_temp_unit_config,
           CY_ADC_DIE_TEMP_PRIMARY);

   ~~~~~~ omitted (same as triple) ~~~~~~

   /* Enable die temperature sensor */
   Cy_Adc_EnableTemperature(PACSS_MMIO);

   ~~~~~~ omitted (same as triple) ~~~~~~

   while (1)
   {

   ~~~~~~ omitted (same as triple) ~~~~~~

       if (g_diagnosticDataValid)
       {
           g_diagnosticDataValid = false;
           Cy_Adc_GetResult(PACSS_DCHAN2, &diagnosticChannelResult);
           Adc_DiagnosticHandler(diagnosticConfigs[diagnosticState],
                   diagnosticChannelResult);

           if (diagnosticState == totalDiagnostic)
           {
               diagnosticState = 0;
           }
           else
           {
               diagnosticState++;
           }

           Adc_SetChannelConfig(PACSS_DCHAN2,
               diagnosticConfigs[diagnosticState]);

           /* Initiate the second Die Temp measurement */
           if (DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_UNIT == diagnosticState)
           {
               Cy_Adc_PacssMmio_StartSecondaryConversion(PACSS_MMIO);
           }
       }

       /* Re-calibrate if temperature changes by 5C */
       if (g_nextTemperature > (g_previousTemperature + CY_ADC_5_DEGREES_C_FIXED)
           || (g_nextTemperature < (g_previousTemperature -
         CY_ADC_5_DEGREES_C_FIXED)))
       {
           g_previousTemperature = g_nextTemperature;

           Example_UartPrintf("Re-calibrating\r\n");
           Adc_Calibrate(g_nextTemperature);
       }
   }
}

/******************************************************************************
* Adc_DiagnosticHandler
*******************************************************************************
* Call the handler function for the specified diagnostic channel measurement:
* - External Temperature
* - Internal Die Temperature
* - VDIAG vs Ground
* - RSH2/RSL2
* - Shunt disconnection detect
* - SRSS VREF vs Ground
* - HPBGR VREF vs Ground
******************************************************************************/
void Adc_DiagnosticHandler(adc_diagnostic_config_t state, int32_t result)
{
   static int32_t  currentOne      = 0;
   static int32_t  dieTempOne      = 0;
   static int32_t  rshPullup       = 0;
   static float    currentRatio    = 0.0;

   switch(state)
   {
   case DIAGNOSTIC_CHANNEL_CONFIG_EXTERNAL_TEMP:
       Adc_ExternalTempSensorHandler(result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RESISTOR_ONE:
       currentOne = result;
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RESISTOR_UNIT:
       Adc_CurrentRatioHandler(&currentRatio, currentOne, result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_ONE:
       dieTempOne = result;
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_UNIT:
       Adc_DieTempHandler(result - dieTempOne, currentRatio);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_VDIAG:
       Adc_VdiagHandler(result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RSH2:
       Adc_Rsh2Handler(result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_PULLUP:
       rshPullup = result;
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_SHUNT:
       Adc_RshOpenhandler(rshPullup, result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_SRSS_REF:
       Adc_VrefSrssHandler(result);
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_HPBGR_REF:
       Adc_VrefHpbgrHandler(result);
       break;

   default:
       Adc_SetChannelConfig(PACSS_DCHAN2, DIAGNOSTIC_CHANNEL_CONFIG_EXTERNAL_TEMP);
       break;
   }
}

PACSS calibration

The digital channels allow adjustments to offset and gain to correct cumulative errors in the analog circuits. The offset and gain are calibrated during test at multiple temperatures and for multiple configurations. Offset and gain calibration data is stored in SFLASH memory such as SFLASH_PACSS_XXXX registers. Customer software is responsible for reading the correct SFLASH data for the desired configuration, interpolating that data between temperatures, and loading the data into hardware registers. This chapter describes the PACSS calibration method using SDL example.

The PACSS calibration is divided into the following sections:

Calibration drivers
Code example
- Channel OFFSET and GAIN calibration

The following sections explain the details API and code examples for PACSS calibration.

Calibration drivers

Table 6

lists and describes the interface to the PACSS calibration function. The calibration drivers of PACSS are located in SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\mw\adc\rev_b

Table 6.
PACSS calibration functions
Function	Description
`cy_adc_calibrate.c`
`Cy_Adc_CalibrateAgcGainLevel()`	Loads gain and offset correction values from the supervisory flash
`Cy_Adc_CalibrateAchan0_2TempTrim()`	Loads gain and offset correction values from the supervisory flash
`Cy_Adc_CalibrateAchan1_2TempTrim()`	Loads gain and offset correction values from the supervisory flash
`Cy_Adc_CalibrateAchan1_3TempTrim()`	Loads gain and offset correction values from the supervisory flash
`Cy_Adc_GetGcorOcorAchan0_2TempTrim()`	Retrieves gain and offset correction values from the supervisory flash
`Cy_Adc_GetGcorOcorAchan1_2TempTrim()`	Retrieves gain and offset correction values from the supervisory flash
`Cy_Adc_GetGcorOcorAchan1_3TempTrim()`	Retrieves gain and offset correction values from the supervisory flash
`Cy_Adc_CalibrateOffsetScalar()`	Loads offset correction scalar value from the supervisory flash
`cy_adc_counts_to_volts.c (Auxiliary functions)`
`Cy_Adc_CountsToVolts()`	Converts the input from raw ADC counts to volts
`Cy_Adc_CountsToMillivolts()`	Converts the input from raw ADC counts to millivolts

Code example

Channel OFFSET and GAIN calibration

The calibration data requires analog channel usage of ACHAN0: Current and ACHAN1: Voltage and diagnostic. See "21.2.7.1 Channel OFFSET and GAIN calibration" in the architecture TRM

[5]

for more details.

Note:

The offset correction (OCOR) values stored in SFlash are determined using specific digital channel (DCHAN) configurations. The OCOR is applied at the output of the decimator right shift (DEC_SHIFTR). Any changes to the DCHAN that affect the scale of this output require a corresponding change to either the DCHAN settings or the OCOR value to align them back to the same scale. See offset correction values alignment section in the architecture TRM for more details.

This example uses the multi convert design, and focuses on the calibration function.

Figure 16

shows the flowchart for channel OFFSET and GAIN calibration, and

Code Listing 4

shows the code example of the main function.

Figure 16.
Flowchart of channel OFFSET and GAIN calibration

Code Listing 4 Code example of channel OFFSET and GAIN calibration

int main(void)
{

   ~~~~~~ omitted ~~~~~~

   /* Calibrate the ADC channels */
   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN0);
   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN1);
   Cy_Adc_CalibrateOffsetScalar(PACSS_DCHAN2);
   Adc_Calibrate(g_previousTemperature);

   /* Start the conversion process */
   Cy_Adc_StartConversion(PACSS_MMIO);

   ~~~~~~ omitted ~~~~~~

   while (1)
   {

   ~~~~~~ omitted ~~~~~~

       // Re-calibrate if temperature changes by 5C
       if (g_nextTemperature > ( g_previousTemperature + CY_ADC_5_DEGREES_C_FIXED)
           || (g_nextTemperature < ( g_previousTemperature -
                                                CY_ADC_5_DEGREES_C_FIXED)))
       {
           g_previousTemperature = g_nextTemperature;

           //Re-calibrate
           Example_UartPrintf("Re-calibrating\r\n");
           Adc_Calibrate(g_nextTemperature);
       }
   }
}

/******************************************************************************
* Adc_Calibrate
*******************************************************************************
* Calibrate the AGC, the VSENSE, and Diagnostic channels to the temperature
* \param temperature The temperature in fixed point 12.20 format
******************************************************************************/
void Adc_Calibrate(int32_t temperature)
{
   uint16_t gcor;
   int16_t ocor;

   Cy_Adc_CalibrateAchan1_3TempTrim(
           PACSS_DCHAN1,
           CY_ADC_ACHAN1_3TEMP_VSENSE_16,
           temperature);
   Cy_Adc_CalibrateAchan1_2TempTrim(
           PACSS_DCHAN2,
           CY_ADC_ACHAN1_2TEMP_GAIN_1X,
           temperature);

   /* Calibrate the AGC Gain levels */
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 0, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_2X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 1, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_4X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 2, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_8X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 3, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_16X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 4, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_32X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 5, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_64X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 6, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_128X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 7, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_256X);
   Cy_Adc_CalibrateAgcGainLevel(PACSS_MMIO, 8, temperature,
       CY_ADC_ACHAN0_2TEMP_GAIN_512X);

   /* Calibrate the current channel for static gain, AGC disabled
      This assumes the static gain comes from the cy_stc_adc_gain_level_config
      array which includes the left shift to keep the number scale the same*/
   Cy_Adc_GetGcorOcorAchan0_2TempTrim(&gcor, &ocor,
       CY_ADC_ACHAN0_2TEMP_GAIN_512X, temperature);
   Cy_Adc_DchanPostProcessing_SetGainCorrection(PACSS_DCHAN0, gcor);
   Cy_Adc_DchanPostProcessing_SetOffsetCorrection(PACSS_DCHAN0, ocor);
}

PACSS diagnostic features

The PACSS diagnostic features is divided into the following sections:

Diagnostic drivers
Code example
- On-die temperature calculation
- Shunt resistor open detection of RSx pins

The following sections explain the details API and code examples for PACSS diagnostic features.

Diagnostic drivers

Table 7

lists and describes the interface to PACSS diagnostic function. The Diagnostic drivers of PACSS are located in the SDL path of:

C:/<user path>\PSoC_Sample_Driver_Library_x.x.x\psoc4hvXXXk\src\mw\adc\rev_b

Table 7.
PACSS diagnostic functions
Function	Description
`cy_adc_die_temp.c`
`Cy_Adc_GetDieTempFromDelta()`	Converts the delta between two die temp measurements to degrees. Centigrade in fixed point 12.20 format
`Cy_Adc_InitializeDieTempConfigs()`	Initializes the two configurations used for temperature measurement with factory settings
`Cy_Adc_NormalizeDelta`	Normalizes the delta VBE measurement to the ratio of the current sources
`cy_adc_rs_open.c`
`Cy_Adc_GetPullupResistance()`	Returns the linearly interpolated resistance of the pull-up resistor
`Cy_Adc_IsRsOpen()`	Uses samples of the shunt resistor and pull-up resistor to determine if the shunt resistor is disconnected (open)

Code example

On-die temperature calculation

On-die temperature measurements are made with an internal temperature sensor by measuring bipolar VBE at different current densities and calculating temperature. Two independent current references are used for diagnosis and redundancy. In addition to temperature, die stress also causes VBE shifts but NPN and PNP bipolars respond differently to stress; therefore, arrays of both transistor types are included. See "21.2.6.2 On-die temperature sensor" in the architecture TRM for more details.

On-die temperature measurements convert the delta between two die temp measurements to degrees (celsius in fixed point 12.20 format). The following is formula of the internal temperature calculation. See "21.2.7.2 Internal temperature calculation" in the architecture TRM

[5]

T = α2 * x2/234 + α1 * x/29 + α0 * 214

Where:

x = dVBE + dVBE * (A * ratio + B)

dVBE = ADC(UNIT) - ADC(1) with 29 bit signed result

ratio = ADC(UNIT) / ADC(1) with LOAD_MODE set to “resistor”

A = -0.0534, B = 0.4804

where (A * ratio + B) is a linear approximation of LN(9)/LN(ratio).

ADC(UNIT) is the measurement with UNIT_MODE and IREF_BIPOLAR_UNIT_MASK applied.

a2, a1, and a0 coefficients are read from either SFlash (two circuits, primary and alternate, are available for diagnostic)

Figure 17

shows the flow chart for internal temperature calculation, and

Code Listing 5

shows the code example of main function.

Figure 17.
Flowchart of internal temperature calculation

Code Listing 5 Code example of internal temperature calculation

int main(void)
{
   cy_en_adc_error_t   error                       = CY_ADC_ERROR;
   int32_t             dieTempOneCounts            = 0;
   int32_t             dieTempUnitCounts           = 0;
   int32_t             deltaVbe                    = 0;
   int32_t             deltaVbeNormalized          = 0;
   int32_t             tempFixed                   = 0;
   float32_t           tempFloat                   = 0.0;
   float32_t           currentRatio                = 0.0;

   ~~~~~~ omitted ~~~~~~

   /* Initialize the die temp configurations */
   Cy_Adc_InitializeDieTempConfigs(&cy_stc_die_temp_one_config,
       &cy_stc_die_temp_unit_config, CY_ADC_DIE_TEMP_PRIMARY);

   Cy_Adc_InitTemperature(PACSS_MMIO, &cy_stc_die_temp_one_config);
   Cy_Adc_EnableTemperature(PACSS_MMIO);

   /* Get the ratio of the resistor measurements to normalize the results */
   Cy_Adc_InitTemperature(PACSS_MMIO, &cy_stc_die_temp_one_config);
   Cy_Adc_PacssMmioTemperature_SetLoadMode(PACSS_MMIO,
       CY_ADC_TEMPERATURE_LOAD_MODE_RESISTOR);
   dieTempOneCounts = Adc_GetConversion();

   /* Configure for the unit measurement */
   Cy_Adc_InitTemperature(PACSS_MMIO, &cy_stc_die_temp_unit_config);
   Cy_Adc_PacssMmioTemperature_SetLoadMode(PACSS_MMIO,
       CY_ADC_TEMPERATURE_LOAD_MODE_RESISTOR);
   dieTempUnitCounts = Adc_GetConversion();

   currentRatio = (float32_t) dieTempUnitCounts / (float32_t) dieTempOneCounts;

   ~~~~~~ omitted ~~~~~~

   while (1)
   {
       /* Configure for the first measurement */
       Cy_Adc_InitTemperature(PACSS_MMIO, &cy_stc_die_temp_one_config);
       dieTempOneCounts = Adc_GetConversion();

       /* Configure for the unit measurement */
       Cy_Adc_InitTemperature(PACSS_MMIO, &cy_stc_die_temp_unit_config);
       dieTempUnitCounts = Adc_GetConversion();

       deltaVbe = dieTempUnitCounts - dieTempOneCounts;
       deltaVbe = deltaVbe << ADC_GET_DIE_TEMP_SHIFT;
       Example_UartPrintf("Diagnostic, Delta Vbe (counts): %d\r\n", deltaVbe);
       Cy_Adc_NormalizeDelta(&deltaVbeNormalized, deltaVbe, currentRatio);
       Example_UartPrintf("Diagnostic, Delta Vbe (counts): %d\r\n",
           deltaVbeNormalized);

       Cy_Adc_GetDieTempFromDelta(&tempFixed, deltaVbeNormalized,
           CY_ADC_DIE_TEMP_PRIMARY);
       tempFloat = (float32_t) tempFixed / ADC_FIXED_TO_FLOAT;
       Example_UartPrintf("Diagnostic, Temp (C): %.02f\r\n", tempFloat);    }
}

/*******************************************************************************
* Function Name: Cy_Adc_GetDieTempFromDelta
****************************************************************************//**
* \brief    Converts the delta between two die temp measurements to degrees
*           Centigrade in fixed point 12.20 format.
*
*           Uses the formula (a2 * x^2 * 2^-34 + a1 * x * 2^-9 + a0 * 2^14)/2^20
*           where x = Delta ADC = ADC(UNIT) - ADC(1)
*
*           The division by 2^20 is not performed, it is symbolic of the fixed
*           point 12.20 format of the result.
*
* \param   delta   32-bit delta between the two die temp measurements
* \param   result  Pointer for the conversion result in fixed point 12.20 format
* \param   setup   Selects the primary or alternate temperature measurement
*                  coefficients stored in sflash
*
* \return  #CY_ADC_ERROR_NONE if no errors occur
* \return  #CY_ADC_ERROR_BAD_PARAM if `delta` is invalid
* \return  #CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL if `result` is NULL
*******************************************************************************/
cy_en_adc_error_t Cy_Adc_GetDieTempFromDelta(int32_t *result, int32_t delta,
   cy_en_adc_die_temp_setup_t setup)
{
   cy_en_adc_error_t status = CY_ADC_ERROR;
   int16_t a2 = 0;
   int16_t a1 = 0;
   int16_t a0 = 0;
   int64_t sqrdTerm;
   int64_t linearTerm;
   int64_t offset;

   if (NULL == result)
   {
       status = CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL;
   }
   else
   {
       if (CY_ADC_DIE_TEMP_PRIMARY == setup)
       {
           a2 = SFLASH->unPACSS_DIAG_TEMP_P_CAL_A2.u16Register;
           a1 = SFLASH->unPACSS_DIAG_TEMP_P_CAL_A1.u16Register;
           a0 = SFLASH->unPACSS_DIAG_TEMP_P_CAL_A0.u16Register;
       }
       else
       {
           a2 = SFLASH->unPACSS_DIAG_TEMP_A_CAL_A2.u16Register;
           a1 = SFLASH->unPACSS_DIAG_TEMP_A_CAL_A1.u16Register;
           a0 = SFLASH->unPACSS_DIAG_TEMP_A_CAL_A0.u16Register;
       }

       // a2 * x^2 * 2^-34
       sqrdTerm = delta;
       sqrdTerm = sqrdTerm * sqrdTerm;
       sqrdTerm = sqrdTerm >> DIE_TEMP_SQUARED_TERM_SHIFT;
       sqrdTerm = sqrdTerm * a2;

       // a1 * x * 2^-9
       linearTerm = delta;
       linearTerm = linearTerm >> DIE_TEMP_LINEAR_TERM_SHIFT;
       linearTerm = linearTerm * a1;

       // a0 * 2^14
       offset = a0 << DIE_TEMP_OFFSET_TERM_SHIFT;

       *result = sqrdTerm + linearTerm + offset;

       status = CY_ADC_ERROR_NONE;
   }

   return status;
}

Shunt resistor open detection of RSx pins

The current measurement channel detects disconnect shunt connections by switching internal pull-up resistors to the shunt pins. If the resistance between the RSHx or RSLx to ground is more than 1000 Ω, an open pin fault can be detected.

Detection criteria:
- Vadc_th must be defined to separate "good" (lower voltage) from "open" (higher voltage)
- Rdet < 250 Ω should always return "good" status
- Rdet > 1000 Ω should always return "open" status

This example uses the shunt resistor and pull-up resistor to determine if the shunt resistor is disconnected (open). The circuit is open if the measured voltage with the pull-up enabled (Vpu) is greater than 1-Volt or if Vpu > Vadc_th. Where Vadc_th is:

Vadc_th = Vsh + (Vdd - Vsh) * 600 / (600 + Rpu)

Vsh is the measured shunt voltage. Rpu is the value of the pull-up resistor, determined during manufacturing and stored in SFLASH. See "21.2.7.3 Shunt resistor open detection of RSx pins" in the architecture TRM for more details.

Figure 18

shows the flow chart for shunt resistor open detection of RSx pins, and

Code Listing 6

shows the code example of main function.

Figure 18.
Flowchart of internal temperature calculation

Code Listing 6 Code example of internal temperature calculation

int main(void)
{
   ~~~~~~ omitted ~~~~~~

   while (1)
   {

   ~~~~~~ omitted ~~~~~~

       if (g_diagnosticDataValid)
       {
           g_diagnosticDataValid = false;
           Cy_Adc_GetResult(PACSS_DCHAN2, &diagnosticChannelResult);
           Adc_DiagnosticHandler(diagnosticConfigs[diagnosticState],
                   diagnosticChannelResult);

           if (diagnosticState == totalDiagnostic)
           {
               diagnosticState = 0;
           }
           else
           {
               diagnosticState++;
           }

           Adc_SetChannelConfig(PACSS_DCHAN2,
               diagnosticConfigs[diagnosticState]);

           /* Initiate the second Die Temp measurement */
           if (DIAGNOSTIC_CHANNEL_CONFIG_DIE_TEMP_UNIT == diagnosticState)
           {
               Cy_Adc_PacssMmio_StartSecondaryConversion(PACSS_MMIO);
           }
       }
   ~~~~~~ omitted ~~~~~~
}
/******************************************************************************
* Adc_DiagnosticHandler
*******************************************************************************
* Call the handler function for the specified diagnostic channel measurement:
* - External Temperature
* - Internal Die Temperature
* - VDIAG vs Ground
* - RSH2/RSL2
* - Shunt disconnection detect
* - SRSS VREF vs Ground
* - HPBGR VREF vs Ground
******************************************************************************/
void Adc_DiagnosticHandler(adc_diagnostic_config_t state, int32_t result)
{
   ~~~~~~ omitted ~~~~~~

   case DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_PULLUP:
       rshPullup = result;
       break;

   case DIAGNOSTIC_CHANNEL_CONFIG_RS_OPEN_SHUNT:
       Adc_RshOpenhandler(rshPullup, result);
       break;

   ~~~~~~ omitted ~~~~~~
}
/******************************************************************************
* Adc_RshOpenhandler
*******************************************************************************
* Uses the pull-up and shunt measurements on rsh0 to determine whether or not
* the shunt is open
******************************************************************************/
void Adc_RshOpenhandler(int32_t vpu, int32_t vsh)
{
   if (Cy_Adc_IsRsOpen(vpu, vsh, ADC_ROOM_TEMPERATURE_CELSIUS))
   {
       Example_UartPrintf("RSH Open Detect Failed, RSH is open\r\n");
   }
   else
   {
       Example_UartPrintf("RSH Open Detect Passed, RSH is NOT open\r\n");
   }
}
/*******************************************************************************
* Function Name: Cy_Adc_IsRsOpen
****************************************************************************//**
* \brief    Uses samples of the shunt resistor and pull-up resistor to determine
*           if the shunt resistor is disconnected (open). The circuit is open if
*           the measured voltage with the pull-up enabled (Vpu) is greater than
*           1 Volt or if Vpu > Vadc_th where Vadc_th is:
*
*           Vadc_th = Vsh + (Vdd - Vsh) * 600 / (600 + Rpu)
*
*           Vsh is the measured shunt voltage
*           Rpu is the value of the pull-up resistor, determined using the
*           temperature, based on measured values stored in sflash
*
*           The diagnostic channel uses a gain of 0.5x for these samples. The
*           values input are multiplied by 2 in this function to correct for
*           that attenuation.
*
* \param   pullup  Result of measuring with the pull-up resistor enabled
* \param   shunt   Result of measuring the shunt without the pull-up
* \param   temperature Temperature of the die in 12.20 fixed point Celsius. Used
*            to determine the pull-up value
* \param   pin Selects which pin is being tested
*
* \return  true if RS open detected
* \return  false if RS open not detected
*******************************************************************************/
bool Cy_Adc_IsRsOpen(int32_t pullup, int32_t shunt, int32_t temperature,
   cy_en_adc_rs_pin_type_t pin)
{
   float pullupMillivolts, shuntMillivolts, adcThreshold, voltageDivider;
   float rpu;
   bool result = false;

   pullup = pullup * RS_OPEN_DETECT_GAIN_CORRECTION;

   pullupMillivolts = Cy_Adc_CountsToMillivolts(pullup,
       CY_ADC_DIAGNOSTIC_CHANNEL, CY_ADC_SAMPLE_RATE_48KSPS, 1.2);

   if (RS_OPEN_DETECT_PULLUP_THRESHOLD_MV < pullupMillivolts)
   {
       result = true;
   }
   else
   {
       rpu = Cy_Adc_GetPullupResistance(pin, temperature);

       shunt = shunt * RS_OPEN_DETECT_GAIN_CORRECTION;
       shuntMillivolts = Cy_Adc_CountsToMillivolts(shunt,
           CY_ADC_DIAGNOSTIC_CHANNEL, CY_ADC_SAMPLE_RATE_48KSPS, 1.2);


       voltageDivider = RS_OPEN_DETECT_RSH_MARGIN_OHMS + rpu;
       voltageDivider = RS_OPEN_DETECT_RSH_MARGIN_OHMS / voltageDivider;

       adcThreshold = shuntMillivolts
                     + ((RS_OPEN_DETECT_VDDA_MV - shuntMillivolts)
                     * voltageDivider);

       if (pullupMillivolts > adcThreshold)
       {
           result = true;
       }
       else
       {
           result = false;
       }
   }

   return result;
}

API details

This chapter explains the details of APIs in shown

Table 5

Table 6

and

Table 7

. For more information of all PSoC™ 4 HV PA APIs, see

SDL_psoc4hvpaXXXk.chm

file in SDL path of:

C:/<user path>\ PSoC_Sample_Driver_Library_x.x.x\docs

Start conversion

Description

Figure 19

shows an example of primary vs. secondary conversion. Each sequencer is assigned digital channels. If more than one digital channel is assigned to a sequencer, the sequencer will convert the next assigned channel immediately following the conversion of its previous channel. This is only true if both channels are in incremental conversion mode. In continuous mode, only the lowest channel number will convert.

For example, consider that dchan0 and dchan2 are assigned to sequencer 0 (seq0). When triggered, seq0 will first convert dchan0; on completion it will start the conversion on dchan2. If dchan2 is configured as a secondary channel, when seq0 is triggered (by a primary trigger) only dchan0 will convert.

When a secondary trigger occurs before primary, the secondary channels assigned with the sequencer will go into a pending state. On the following primary trigger, the primary channels will convert followed by the secondary channels.

Figure 19.
Primary vs. secondary conversion

APIs

Cy_Adc_StartConversion()

cy_en_adc_error_t Cy_Adc_StartConversion (volatile stc_PACSS_MMIO_t * base)

Description:

Triggers a conversion on the enabled primary channels

In a system with two primary channels connected to two analog channels, both channels are started simultaneously.

In continuous sampling mode, each analog channel should have only one primary channel. If an analog channel has more than one primary channel, only the lowest indexed channel will be used. For example, if

DCHAN [0]

and

DCHAN [1]

are both set as the primary channel for

ACHAN [0]

, only

DCHAN [0]

will be used in continuous sampling mode.

In Incremental sampling mode, each analog channel can have multiple primary channels and they will sample in their index order.

Parameters:

base– The address of the PACSS MMIO memory

Returns:

CY_ADC_ERROR_NONE if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL if base is NULL

Cy_Adc_StartSecondaryConversion()

cy_en_adc_error_t Cy_Adc_StartSecondaryConversion (volatile stc_PACSS_MMIO_t * base)

Description:

Triggers a secondary conversion on the enabled secondary channels

Parameters:

base– The address of the PACSS MMIO memory

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Results and data storage

Description

Each digital channel consists of a result and accumulated result register. The result register is updated when the digital channel completes an acquisition. This may be at the end of the decimator conversion, the end of FIR filtering, or the end of post processing depending on how the channel is configured.

The accumulated result register accumulates signed acquisitions until a configurable threshold is reached. When the threshold is reached the register resets to zero. The accumulated results register can also be written, so that its value can be reset at any time. The accumulated result occurs before the moving average calculation. To obtain an accumulated result the post processor must be enabled.

APIs

Cy_Adc_GetResult()

cy_en_adc_error_t Cy_Adc_GetResult (volatile stc_PACSS_DCHAN_t * base, int32_t * result)

Description:

Reads the value in the result register of the specified channel

The value in the result register is updated after a conversion is completed, including all enabled post processing/filter/correction steps if enabled.

Parameters:

base
– Base address for the digital channel
result
– Output pointer for the result to be saved to

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Cy_Adc_GetAccumulatorResult()

cy_en_adc_error_t Cy_Adc_GetAccumulatorResult (volatile stc_PACSS_DCHAN_t * base, uint32_t * result)

Description:

Reads the value in the accumulated result register of the specified channel

The value in the accumulated result register is updated after a conversion completed, and does not include the processing from the averaging filter in the DCHAN.

The accumulated result values can be (if enabled):

Gain corrected
Offset corrected
FIR Filtered
Left/right shifted

Parameters:

base
– Base address for the digital channel
result
– Output pointer for the result to be saved to

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Cy_Adc_ResetAccumulator()

cy_en_adc_error_t Cy_Adc_ResetAccumulator (volatile stc_PACSS_DCHAN_t * base)

Description:

Resets the accumulator to zero

Parameters:

base
– Base address for the digital channel

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPU T_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_SetAccumulatorThreshold()

cy_en_adc_error_t Cy_Adc_SetAccumulatorThreshold (volatile stc_PACSS_DCHAN_t * base, uint32_t threshold)

Description:

Sets the accumulator threshold

When the accumulator reaches the specified threshold, the accumulator will reset to zero.

Parameters:

base
– Base address for the digital channel
threshold
– Accumulator threshold

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Ground Reference

Description

Figure 20

shows the block diagram of ground connection for the high-voltage divider (VDIVIDER). Because an accurate measurement of battery voltage is desired, and the device's analog ground may be at a different potential than the battery negative terminal, a ground reference multiplexer for the high-voltage divider. This multiplexer can select vssa, rsh, or rsl pins for measurement and voltage divider ground (vdiv_ret). If the negative pole of the battery is not connected to vssa or it is desired to avoid potential voltage drops across the vssa pin, rsh or rsl (whichever is connected to the battery negative pole) can be selected.

APIs

Cy_Adc_SetGroundReference()

cy_en_adc_error_t Cy_Adc_SetGroundReference (volatile stc_PACSS_MMIO_t * base, cy_en_adc_ground_reference_t select)

Description:

Sets the ground connection for the high-voltage divider

Parameters:

base
– Base address for the PACSS MMIO
select
– Ground reference selection. Options are:
- CY_ADC_PACSS_MMIO_GROUND_REFERENCE_VSSA
  for VSSA
- CY_ADC_PACSS_MMIO_GROUND_REFERENCE_RSH
  for RSH
- CY_ADC_PACSS_MMIO_GROUND_REFERENCE_RSL
  for RSL

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
select
is invalid

Sequencer

Description

The PACSS sequencer generates control signals for performing analog-to-digital conversion.

The PACSS has sequencer that is associated with the analog channel. When triggered, the sequencer loads the input pin selection of the first linked digital channel, then starts the decimator, which initializes the modulator to start the conversion. The modulator output data is transferred to the linked digital channel.

APIs

Cy_Adc_EnableSequencer()

cy_en_adc_error_t Cy_Adc_EnableSequencer (volatile stc_PACSS_MMIO_t * base)

Description:

Enables the ADC sequencer and AREF

Enables:

AREF
LDO (modulator voltage source)
PACSS MMIO

Parameters:

base
– Base address for the PACSS MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_DisableSequencer()

cy_en_adc_error_t Cy_Adc_DisableSequencer (volatile stc_PACSS_MMIO_t * base)

Description:

Disables the ADC sequencer

Parameters:

base
– Base address for the PACSS MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Reference

Description

The PACSS has a high-precision bandgap reference (HPBGR) which generates a low-noise 1.2-V reference with ±0.1% accuracy over temperature. An external 470-nF (typ) capacitor is required for the HPBGR reference. This capacitor is connected between VREFH and VREFL pins.

APIs

Cy_Adc_EnableReference()

cy_en_adc_error_t Cy_Adc_EnableReference (volatile stc_PACSS_MMIO_t * base)

Description:

Configures and enables the high-precision band gap reference (HPBGR)

The HPBGR is configured to:

Enable circuit chopping
Chopping phase between the BGR core and the output buffer are reversed
External capacitor compensation is enabled

About the BGR core and output buffer chopping: The HPBGR contains a "band gap reference core" (BGR core) and an output buffer, which are circuit-chopped to reduce offset error.

The offset is reduced most when the BGR core uses the opposite clock edge to chop when compared to the output buffer, which is referred to here as the reverse phase.

Optionally, the BGR core and the output buffer can use the same clock edge for circuit chopping, referred to here as the normal chopping phase.

Parameters:

base
– Base address for the PACSS MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Cy_Adc_DisableReference()

cy_en_adc_error_t Cy_Adc_DisableReference (volatile stc_PACSS_MMIO_t * base)

Description:

Disables the high-precision band gap reference (HPBGR)

Parameters:

base
– Base address for the PACSS MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Interrupt

Description

Each digital channel contains the following interrupts:

RANGE_INTR: Range detect Interrupt: hardware sets this interrupt if the conversion result of that channel met the condition specified by the RANGE_LOW and RANGE_HIGH registers. Write with '1' to clear bit
ACC_THRESH_INTR: Accumulated threshold interrupt: hardware sets this interrupt when the accumulated threshold value has been surpassed
SATURATE_INTR: Saturate interrupt: hardware sets this interrupt if a conversion result is prevented from overflowing in either the decimator or the post processor when PP_CTL.SAT_EN=1. Write with '1' to clear bit
OVERLOAD_INTR: Overload interrupt: hardware sets this interrupt for each channel if the modulator output is all zeros or all ones. This is an indication that the modulator is overloaded. Write with '1' to clear bit
HWT_COLLISION_INTR: Hardware trigger collision interrupt 0: hardware sets this interrupt when the HW trigger signal is asserted while the DSM is BUSY. Raising this interrupt is delayed to when the scan caused by the HW trigger has been completed, i.e., not when the preceding scan with which this trigger collided is completed. When this interrupt is set, it implies that the channels were sampled later than was intended (jitter). Write with '1' to clear bit
FWT_COLLISION_INTR
: Firmware trigger collision interrupt 0: hardware sets this interrupt when
FW_TRIGGER
is asserted while the DSM is BUSY. Raising this interrupt is delayed to when the scan caused by the
FW_TRIGGER
has been completed, i.e., not when the preceding scan with which this trigger collided is completed. When this interrupt is set, it implies that the channels were sampled later than was intended (jitter). Write with '1' to clear bit
OVERFLOW_INTR
: Overflow interrupt: hardware sets this interrupt when it sets a new
DATA_VAL_INTR
while that bit was not yet cleared by the firmware. Write with '1' to clear bit
DATA_VAL_INTR: Data Valid Interrupt 0: hardware sets this interrupt after completing a scan of all the enabled channels. Write with '1' to clear bit

APIs

Cy_Adc_GetInterrupt()

cy_en_adc_error_t Cy_Adc_GetInterrupt (volatile stc_PACSS_DCHAN_t * base, uint32_t * result)

Description:

Gets the specified digital channel's interrupt status

Parameters:

base
– Base address for the DCHAN MMIO
result
– Output variable for the DCHAN interrupt status

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Cy_Adc_GetInterruptMasked()

cy_en_adc_error_t Cy_Adc_GetInterruptMasked (volatile stc_PACSS_DCHAN_t * base, uint32_t * result)

Description:

Gets the DCHAN interrupt status masked by the enabled interrupts

Parameters:

base
– Base address for the DCHAN MMIO
result
– Output variable for the DCHAN interrupt status

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
or
result
is NULL

Cy_Adc_SetInterruptMask()

cy_en_adc_error_t Cy_Adc_SetInterruptMask (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_dchan_interrupt_t interrupt)

Description:

Enables the specified interrupt type for the specified channel

Parameters:

base
– Base address for the DCHAN
interrupt
– Interrupt to enable. Options are:
- CY_ADC_DCHAN_INTERRUPT_DATA_VAL
- CY_ADC_DCHAN_INTERRUPT_OVERFLOW
- CY_ADC_DCHAN_INTERRUPT_FIRMWARE_TRIGGER_COLLISION
- CY_ADC_DCHAN_INTERRUPT_HARDWARE_TRIGGER_COLLISION
- CY_ADC_DCHAN_INTERRUPT_OVERLOAD
- CY_ADC_DCHAN_INTERRUPT_SATURATE
- CY_ADC_DCHAN_INTERRUPT_ACCUMUlATION_THRESHOLD
- CY_ADC_DCHAN_INTERRUPT_RANGE

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
interrupt
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_ClearInterrupt()

cy_en_adc_error_t Cy_Adc_ClearInterrupt (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_dchan_interrupt_t interrupt)

Description:

Clears the specified interrupt

Parameters:

base
– Base address for DCHAN
interrupt
– Interrupt to clear. Options are:
- CY_ADC_DCHAN_INTERRUPT_DATA_VAL
- CY_ADC_DCHAN_INTERRUPT_OVERFLOW
- CY_ADC_DCHAN_INTERRUPT_FIRMWARE_TRIGGER_COLLISION
- CY_ADC_DCHAN_INTERRUPT_HARDWARE_TRIGGER_COLLISION
- CY_ADC_DCHAN_INTERRUPT_OVERLOAD
- CY_ADC_DCHAN_INTERRUPT_SATURATE
- CY_ADC_DCHAN_INTERRUPT_ACCUMUlATION_THRESHOLD
- CY_ADC_DCHAN_INTERRUPT_RANGE

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
interrupt
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_GetInterruptCause()

cy_en_adc_error_t Cy_Adc_GetInterruptCause (volatile stc_PACSS_MMIO_t * base, cy_en_adc_interrupt_t source, cy_en_adc_interrupt_cause_t * cause)

Description:

Gets the interrupt cause

This function reads the

PACSS_MMIO INTR_CAUSE

This interrupt is the logical OR of all available interrupts in the PACSS. Interrupts must have their interrupt mask enabled in their respective blocks.

Parameters:

base
– Address of the PACSS MMIO registers
source
– Interrupt Source. Valid inputs are:
- CY_ADC_PACSS_MMIO_INTERRUPT_DCHAN0
- CY_ADC_PACSS_MMIO_INTERRUPT_DCHAN1
- CY_ADC_PACSS_MMIO_INTERRUPT_DCHAN2
- CY_ADC_PACSS_MMIO_INTERRUPT_DCHAN3
Cause:
Pointer to the interrupt cause return parameter. Values returned are:
- CY_ADC_PACSS_MMIO_INTERRUPT_CAUSE_IDLE
- CY_ADC_PACSS_MMIO_INTERRUPT_CAUSE_ACTIVE

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Offset and Gain Correction

Description

Offset and gain correction are enabled via the

OCOR_EN

and

GCOR_EN

bits. If offset correction is enabled, the 16-bit OCOR value is left shifted by the

OCOR_SCLR

value then added to the decimation result.

If gain correction is enabled, the decimated result is multiplied by the 16-bit GCOR value. The 4-bit GVAL field is used to determine how many bits of the GCOR value are valid in the calculation. If both offset and gain correction are enabled, the offset calculation is done before the gain multiplication.

If auto gain control is enabled, the offset and gain correction are taken from

PACSS_MMIO_OFST_COR1

and

PACSS_MMIO_GAIN_COR1

registers.

APIs

Cy_Adc_SetGainCorrection()

cy_en_adc_error_t Cy_Adc_SetGainCorrection (volatile stc_PACSS_DCHAN_t * base, uint16_t gain)

Description:

Sets the gain correction factor for the specified DCHAN

This function sets the GCOR value of the specified digital channel. It assumes 15 valid bits since that is what the calibration values stored in supervisory flash use.

Parameters:

base
– Address of the DCHAN registers
gain
– Gain correction factor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Cy_Adc_SetOffsetCorrection()

cy_en_adc_error_t Cy_Adc_SetOffsetCorrection (volatile stc_PACSS_DCHAN_t * base, int16_t offset)

Description:

Sets the offset correction factor for the specified DCHAN

This function sets the OCOR value of the specified digital channel.

Parameters:

base
– Address of the DCHAN registers
gain
– Gain correction factor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Cy_Adc_SetAGCGainCorrection()

cy_en_adc_error_t Cy_Adc_SetAgcGainCorrection (volatile stc_PACSS_MMIO_t * base, uint16_t index, uint16_t gain)

Description:

Sets the gain correction factor for the specified AGC gain level

This function sets the GCOR value of the specified AGC level. It assumes 15 valid bits since that is what the calibration values stored in supervisory flash use

Parameters:

base
– Address of the PACSS_MMIO registers
index
– AGC gain level
gain
– Gain correction factor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Cy_Adc_SetAgcOffsetCorrection()

cy_en_adc_error_t Cy_Adc_SetAgcOffsetCorrection (volatile stc_PACSS_MMIO_t * base, uint16_t index, uint16_t offset)

Description:

Sets the offset correction factor for the specified AGC gain level

This function sets the OCOR value of the specified AGC level

Parameters:

base
– Address of the PACSS_MMIO registers
index
– AGC gain level
gain
– Gain correction factor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

VREF selection

Description

Using

PACSS_DCHANx_SMP_REF_CTL

Table 8

shows the reference selection by mode.

Table 8.
Reference selection by mode
Mode	Pos Ref	VREFH_SEL[2:0]	Neg Ref	VREFL_SEL[5:4]	Comments
Normal mode	VREFH Direct	0x00	VREFL	0x00	–
Internal temp sense	VREFH Direct	0x00	VREFL	0x00	–
External temp sense	VTS_REF	0x03	VTS_RET	0x03	–
VREFH measurement	VREF SRSS	0x02	VSSA_SRSS	0x01	–
Other diagnostic	VREFH Direct	0x00	VREFL	0x00	Measuring power supplies, grounds, and so on

APIs

Cy_Adc_SetVrefLow()

cy_en_adc_error_t Cy_Adc_SetVrefLow (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_dchan_reference_vrefl_t vrefl)

Description:

Sets the selection of the low reference of DCHAN

This function sets the VREF low value of the specified DCHAN

Parameters:

base
– Address of the PACSS_DCHAN registers
vrefl
– Low reference selection

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Cy_Adc_SetVrefHigh()

cy_en_adc_error_t Cy_Adc_SetVrefLow (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_dchan_reference_vrefh_t vrefh)

Description:

Sets the selection of the high reference of DCHAN

This function sets the VREF high value of the specified DCHAN and the reference buffer if necessary

Parameters:

base
– Address of the PACSS_DCHAN registers
vrefh
– High reference selection

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL or
cause
is NULL

Analog channel

Description

The analog portion of the ADCs (see

Figure 21

) consists of a PGA, AAF, buffer, and a delta-sigma modulator.

The analog channel receives a differential signal selected through the analog multiplexer. This differential signal is received by a programmable gain amplifier (PGA). The output of the PGA feeds a low-pass anti-alias filter (AAF) with a bandwidth of ~30 kHz. A buffer amplifier drives the DSM modulator – this amplifier has high bandwidth to settle the modulator capacitors to better than 16 bits each time they are settled. The modulator uses capacitor dividers to set gain. The modulator is a third order with switched capacitor amplifier circuits. The modulator produces a multi-level digital bitstream sent to the digital channel (see the architecture TRM for more details).

Figure 21.
Simplified diagram of analog channel

APIs

Cy_Adc_EnableAchan()

cy_en_adc_error_t Cy_Adc_EnableAchan (volatile stc_PACSS_ACHAN_t * base)

Description:

Enables the analog channel

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_DisableAchan()

cy_en_adc_error_t Cy_Adc_DisableAchan (volatile stc_PACSS_ACHAN_t * base)

Description:

Disables the analog channel

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_InitAchan()

cy_en_adc_error_t Cy_Adc_InitAchan (volatile stc_PACSS_ACHAN_t * base, cy_stc_adc_achan_config_t * config)

Description:

Configures the analog channel

Parameters:

base
– Analog channel base address
config
– Configuration options for the analog channel

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter or if
config
is NULL

ConfigureBuffer()

cy_en_adc_error_t ConfigureBuffer (volatile stc_PACSS_ACHAN_t * base)

Description:

Configures the analog channel buffer

The ACHAN buffer is configured to:

Enable the IDAC
Enable circuit chopping
Power level to
CY_ADC_BUFFER_POWER_LEVEL_78_PERCENT

See:

#Cy_Adc_AchanBuffer_EnableIdac
#Cy_Adc_AchanBuffer_EnableChopping
#Cy_Adc_AchanBuffer_SetPowerLevel
#Cy_Adc_AchanBuffer_Enable

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

ConfigurePga()

cy_en_adc_error_t ConfigurePga (volatile stc_PACSS_ACHAN_t * base)

Description:

Configures the analog channel programmable gain array

The ACHAN PGA is configured to:

Enable the IDAC
Enable circuit chopping
Power level to
CY_ADC_PGA_POWER_LEVEL_58_PERCENT

The PGA gain is set by DCHAN (or AGC).

See:

#Cy_Adc_AchanPga_EnableIdac
#Cy_Adc_AchanPga_EnableChopping
#Cy_Adc_AchanPga_SetPowerLevel
#Cy_Adc_AchanPga_Enable

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

ConfigureReference()

cy_en_adc_error_t ConfigureReference (volatile stc_PACSS_ACHAN_t * base)

Description:

Configures the analog channel reference

The ACHAN reference is configured as:

VCM to 0.8 V
Quantizer VREF to CDAC
VREF power level to
CY_ADC_VREF_POWER_LEVEL_HIGH
VCM power level to
CY_ADC_VCM_POWER_LEVEL_HIGH
Enable VCCA resistor
Enable VDDA resistor
Enable VCM buffer
Enable VREF buffer
Enable reference

See:

#Cy_Adc_AchanReference_SetVcmSelect
#Cy_Adc_AchanReference_SetQuantizerVrefSelect
#Cy_Adc_AchanReference_SetVcmPower
#Cy_Adc_AchanReference_EnableVccaResistor
#Cy_Adc_AchanReference_EnableVddaResistor
#Cy_Adc_AchanReference_EnableVcmBuffer
#Cy_Adc_AchanReference_Enable

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

ConfigureModulator()

cy_en_adc_error_t ConfigureModulator (volatile stc_PACSS_ACHAN_t * base)

Description:

The ACHAN modulator is configured as:

First stage integrator power 88 percent
Second/third stage integrator power 100 percent
Comparator power to 100 percent
Summer power 100 percent
Modulator chopping clock to Fs/32 and enabled
Modulator quantization level to '9'
Low Non-overlap delay
Datapath chopping clock to Fclock/32 and enabled

See:

#Cy_Adc_AchanModulator_SetFirstStagePower
#Cy_Adc_AchanModulator_SetSecondThirdStagePower
#Cy_Adc_AchanModulator_SetCompPower
#Cy_Adc_AchanModulator_SetSummerPower
#Cy_Adc_AchanModulator_SetChoppingDivider
#Cy_Adc_AchanModulator_EnableChopping
#Cy_Adc_AchanModulator_SetQuantizationLevel
#Cy_Adc_AchanModulator_SetNonOverlapDelay
#Cy_Adc_AchanModulator_SetDatapathMode
#Cy_Adc_AchanModulator_SetDataOut
#Cy_Adc_AchanModulator_SetDatapathChoppingDivider
#Cy_Adc_AchanModulator_EnableDatapathChopping
#Cy_Adc_AchanChopping_DisableSecondIntegratorChopping
#Cy_Adc_AchanModulator_SetAafDisconnectCount
#Cy_Adc_AchanModulator_Enable

Parameters:

base
– Analog channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

ConfigureTrigger()

cy_en_adc_error_t ConfigureTrigger (volatile stc_PACSS_ACHAN_t * base, cy_en_adc_achan_trigger_priority_t priority, cy_en_adc_achan_trigger_t source)

Description:

Configures the analog channel primary/secondary trigger

Firmware (FW) triggering will work if hardware (HW) triggering is enabled. If the trigger is selected to be a 'FW' trigger, the hardware trigger is disabled.

If the trigger is selected to be one of the 'HW' triggers, the ACHAN is configured to use the selected hardware trigger source for the selected trigger priority.

See:

#Cy_Adc_AchanTrigger_Disable
#Cy_Adc_AchanTrigger_Enable
#Cy_Adc_AchanTrigger_SetSync
#Cy_Adc_AchanTrigger_SelectPrimary
#Cy_Adc_AchanTrigger_SelectSecondary

Parameters:

base
– Analog channel base address
priority
– Trigger priority, not checked for validity

Will be either:

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
source
is invalid

Automatic gain correction (AGC) setting

Description

The AGC can automatically control the gain of either channel. AGC circuits typically monitor either the input voltage or output of the PGA and increase gain when the signal amplitude is below a certain threshold or reduce gain when above another threshold. The gain of the current channel ranges from 1 to 512. Automatic gain can be disabled and set to a fixed value. A scaler between the modulator and decimator adjusts the weight of modulator data based on the gain so the LSB of the data going into the decimator is always 0.715 mA.

The gain of other channels is static instead of dynamic. Static gain is typically set to '1' but any value from 0.5 to 512 in powers of 2 can be used. The HV input channels have resistor voltage dividers that attenuate the input voltage. The nominal divider ratio is 24x (28.8 V full-scale) with an optional value of 16x (19.2 V full scale).

The AGC can automatically control the gain of either channel. AGC circuits typically monitor either the input voltage or output of the PGA and increase the gain when the signal amplitude is below a certain threshold or reduce the gain when above another threshold. This function can also be achieved with a low-resolution A/D converter with digital comparison for gain selection.

APIs

Cy_Adc_EnableAgc()

cy_en_adc_error_t Cy_Adc_EnableAgc (volatile stc_PACSS_MMIO_t * base)

Description:

Enables automatic gain correction (AGC)

Parameters:

base
– Base address of the PACSS_MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter

Cy_Adc_DisableAgc()

cy_en_adc_error_t Cy_Adc_DisableAgc (volatile stc_PACSS_MMIO_t * base)

Description:

Disables automatic gain correction (AGC)

Parameters:

base
– Base address of the PACSS_MMIO

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter

Cy_Adc_InitAgc()

cy_en_adc_error_t Cy_Adc_InitAgc (volatile stc_PACSS_MMIO_t * base, cy_stc_adc_agc_config_t * config)

Description:

Configures automatic gain correction (AGC)

Parameters:

base
– Base address of the PACSS_MMIO
config
– Configuration options for the AGC

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter

ConfigureGainLevel()

cy_en_adc_error_t ConfigureGainLevel (volatile stc_PACSS_MMIO_t * base, uint32_t gainLevelIndex, cy_stc_adc_gain_level_config_t * gainLevel)

Description:

Configures the gain level in memory, given the input configuration

Parameters:

base
– Base address of the PACSS_MMIO
gainLevelIndex
– Gain Level to configure. Valid inputs are between 0 and 9 inclusive
gainLevel
– Gain Level configuration settings. Not all settings are used by the AGC. Because
config->gainLevels
is not NULL, the input here cannot be NULL

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
'gainLevel'
contains an invalid parameter of
'gainLevelIndex'
is invalid

Analog channel chopping

Description

Chopping is used to reduce the offset and 1/f (flicker) noise. Various chopping schemes are implemented in the PACSS. See

Table 9

for default values.

Table 9.
Default chopping settings
Register	Field	Comment	D/T Channel	V Channel	I Channel
`PACSS_ACHANx_CHOP_CTL`	`SMP_CNT`	Chopping sample count number of samples to count before toggling modbit	N/A	N/A	3
	`AAF_SHORT_R_CNT`	Anti-aliasing filter short resistor count number of DSM clock cycles	N/A	N/A	N/A
	`DEC_BLANK_CNT`	Decimator blanking count number of DSM clock cycles	N/A	N/A	N/A
	`CHOP_MODE`	Set channel/buffer cross chopping mode	0	0	3
	`CIRCUIT_CHOP`	Disconnect PGA-AAF for 0-3 clk cycles at PGA chopping rate	2	2	2
	`CIRCUIT_2ND_EN`	Second stage circuit chopping enable	1	1	1
	`CHOP_RST_EN`	Reserved (no functionality)	0	0	0
`PACSS_ACHANx_MOD_CTL`	`MOD_FCHOP`	Modulator chopping clock frequency selection	Fs/32	Fs/32	Fs/32
`PACSS_ACHANx_MOD_CTL`	`MOD_CHOP_EN`	Modulator chopping enable	1	1	1
`PACSS_ACHANx_DPATH_CTL`	`BUF_PGA_FCHOP`	Chopping clock frequency selection for buffer and PGA	Fs/32	Fs/32	Fs/32
`PACSS_ACHANx_DPATH_CTL`	`BUF_PGA_CHOP_CLK_EN`	Buffer and PGA chopping clock enable	1	1	1
`PACSS_MMIO_HPBGR_CTL`	`CHOP_EN`	HPBGR chopping enable	Fs/4	Fs/4	Fs/4
`PACSS_MMIO_HPBGR_CTL`	`HPBGR_FCHOP`	HPBGR chopping clock frequency selection	1	1	1
`PACSS_ACHANx_MOD_CTL`	`MOD_FCHOP`	Modulator chopping clock frequency selection	Fs/32	Fs/32	Fs/32
`PACSS_ACHANx_MOD_CTL`	`MOD_CHOP_EN`	Modulator chopping enable	1	1	1

APIs

Cy_Adc_InitAchanChannelChopping()

cy_en_adc_error_t Cy_Adc_InitAchanChannelChopping (volatile stc_PACSS_ACHAN_t * base, cy_stc_adc_achan_channel_chopping_config_t * config)

Description:

Configures the selected analog channel to perform channel chopping

Parameters:

base
– Analog channel base address
config
– Configuration options for ACHAN channel chopping

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter or if
config
is NULL

Digital channel

Description

The digital data system has four digital channels that include the scaler, decimator, rate control, FIR filter, accumulator, comparator, offset, and gain calibrations (see

Figure 22

which is a simplified diagram of the digital channel path). The digital channels process outputs from either of the two analog channels. Two channels have an FIR filter and the other two do not have an FIR Filter. The digital channels without FIR filter have every other feature.

The channels are typically used for current, voltage, temperature, and diagnostic measurements although they can be associated with any inputs. The digital system of the PACSS is largely autonomous; it performs acquisitions, filtering, post-processing, and data storage without firmware intervention. This allows real-time measurements without loading the CPU (see the architecture TRM for more details).

Figure 22.
Simplified diagram of digital channel

APIs

Cy_Adc_EnableDchan()

cy_en_adc_error_t Cy_Adc_EnableDchan (volatile stc_PACSS_DCHAN_t * base)

Description:

Enables the digital channel

Parameters:

base
– Digital channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_DisableDchan()

cy_en_adc_error_t Cy_Adc_DisableDchan (volatile stc_PACSS_DCHAN_t * base)

Description:

Disables the digital channel

Parameters:

base
– Digital channel base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_InitDchan()

cy_en_adc_error_t Cy_Adc_InitDchan (volatile stc_PACSS_DCHAN_t * base, cy_stc_adc_dchan_config_t * config)

Description:

Configures the digital channel

Parameters:

base
– Digital channel base address
config
– Configuration options for the digital channel

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
of
config
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter

Cy_Adc_ConfigureGainLevel()

cy_en_adc_error_t Cy_Adc_ConfigureGainLevel (volatile stc_PACSS_DCHAN_t * base, cy_stc_adc_gain_level_config_t * gain)

Description:

Configures the digital channel gain level settings

Parameters:

base
– Digital channel base address
gain
– Gain level configuration options for the digital channel

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
of
config
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter or if
config
is NULL

Cy_Adc_ ConfigureFIRFilter()

cy_en_adc_error_t ConfigureFIRFilter (volatile stc_PACSS_DCHAN_t * base, cy_stc_adc_fir_config_t * config)

Description:

Configures the digital channel FIR filter coefficients

Parameters:

base
– Digital channel base address
config
– Non-null FIR Filter configuration, which contains:
- Post process right shift (FIR right shift)
- FIR number of taps
- FIR coefficient definitions in an array

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
config->coefficients
is NULL
CY_ADC_ERROR_BAD_PARAM
if a filter coefficient field is invalid

Cy_Adc_ConfigureAafMode()

cy_en_adc_error_t Cy_Adc_ConfigureAafMode (volatile stc_PACSS_DCHAN_t * base, cy_stc_adc_dchan_config_t * config)

Description:

Configures the anti-alias filter

Parameters:

base
– Base address
config
– Configuration options for the digital channel

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
'base'
of
'config'
is NULL
CY_ADC_ERROR_BAD_PARAM
if
'config'
contains an invalid parameter

On-die temperature sensor

Description

PSoC™ 4 HV PA MCU has an on-die temperature sensor. The measurements are made with an internal temperature sensor by measuring bipolar VBE at different current densities and calculating temperature. Two independent current references are used for diagnosis and redundancy.

APIs

Cy_Adc_EnableTemperature()

cy_en_adc_error_t Cy_Adc_EnableTemperature (volatile stc_PACSS_MMIO_t * base)

Description:

Enables the temperature sensor

Parameters:

base
– PACSS MMIO base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_DisableTemperature()

cy_en_adc_error_t Cy_Adc_DisableTemperature (volatile stc_PACSS_MMIO_t * base)

Description:

Disables the temperature sensor

Parameters:

base
– PACSS MMIO base address

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_InitTemperature()

cy_en_adc_error_t Cy_Adc_InitTemperature (volatile stc_PACSS_MMIO_t * base, cy_stc_adc_temperature_config_t * config)

Description:

Configures the temperature sensor

Parameters:

base
– PACSS MMIO base address
config
– Configuration options for the temperature sensor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL
CY_ADC_ERROR_BAD_PARAM
if
config
contains an invalid parameter

Channel offset and gain calibration

Description

Provides APIs for applying temperature gain and offset correction factors to the DCHAN and AGC. These values are determined in the factory and stored in supervisory flash.

APIs

Cy_Adc_CalibrateAgcGainLevel()

cy_en_adc_error_t Cy_Adc_CalibrateAgcGainLevel (volatile stc_PACSS_MMIO_t * base, uint8_t gainLevel, int32_t temperature, cy_en_adc_achan0_2temp_trim_gain_type_t gain)

Description:

Loads the gain and offset correction values from the supervisory flash

This function calibrates the specified AGC level used in the example code based on the temperature. Calibration must be done after initializing the AGC. Gain and offset calibration values are stored in SFlash as documented in the PACSS calibration section of the TRM.

This function assumes that the gain levels are as configured in the ADC driver. Using a custom gain level setting may affect this function, and could cause the ADC to work improperly.

Parameters:

base
– Address of the PACSS_MMIO registers
gainLevel
– Which AGC Gain Level to calibrate. Ranges from 0 to 8
temperature
– Fixed point, 12.20, junction temperature in celsius
gain
– Gain Level of the selected PACSS_MMIO Gain Level. Options are:
- CY_ADC_ACHAN0_2TEMP_GAIN_2X
- CY_ADC_ACHAN0_2TEMP_GAIN_4X
- CY_ADC_ACHAN0_2TEMP_GAIN_8X
- CY_ADC_ACHAN0_2TEMP_GAIN_16X
- CY_ADC_ACHAN0_2TEMP_GAIN_32X
- CY_ADC_ACHAN0_2TEMP_GAIN_64X
- CY_ADC_ACHAN0_2TEMP_GAIN_128X
- CY_ADC_ACHAN0_2TEMP_GAIN_256X
- CY_ADC_ACHAN0_2TEMP_GAIN_512X

Returns:

CY_ADC_ERROR_NONE if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gainLevel
,
gain
, or
sampleRate
are invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_CalibrateAchan0_2TempTrim()

cy_en_adc_error_t Cy_Adc_CalibrateAchan0_2TempTrim (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_achan0_2temp_trim_gain_type_t gain, int32_t temperature)

Description:

Loads the gain and offset correction values from the supervisory flash

This function loads the gain and offset correction values for the specified DCHAN connected to ACHAN0.

The output of the DCHAN must have the same LSB at the application of OCOR as the configuration used to create the values stored in supervisory flash. This can be accomplished by adjusting either SHIFTL or

DEC_SHIFTR

The

Cy_Adc_GetDieTempFromDelta

API calculates the junction temperature in this fixed-point format from the difference between two die temperature measurements. This function uses the

Cy_Adc_GetGcorOcorAchan0_2TempTrim

API to perform a linear interpolation of the OCOR and GCOR values in the supervisory flash based on the provided temperature.

DCHAN connected to ACHAN0. This function uses the

Cy_Adc_GetGcorOcorAchan0_2TempTrim

API to perform a linear interpolation based on the provided temperature. 2Temp means the interpolation is done using a 2-point array.

Parameters:

base
– Address of the DCHAN registers
gain
– Gain value of the specified channel. Options are:
- CY_ADC_ACHAN0_2TEMP_GAIN_1X
- CY_ADC_ACHAN0_2TEMP_GAIN_2X
- CY_ADC_ACHAN0_2TEMP_GAIN_4X
- CY_ADC_ACHAN0_2TEMP_GAIN_8X
- CY_ADC_ACHAN0_2TEMP_GAIN_16X
- CY_ADC_ACHAN0_2TEMP_GAIN_32X
- CY_ADC_ACHAN0_2TEMP_GAIN_64X
- CY_ADC_ACHAN0_2TEMP_GAIN_128X
- CY_ADC_ACHAN0_2TEMP_GAIN_256X
- CY_ADC_ACHAN0_2TEMP_GAIN_512X
temperature
– Fixed point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gain
or
sampleRate
are invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_CalibrateAchan1_2TempTrim()

cy_en_adc_error_t Cy_Adc_CalibrateAchan1_2TempTrim (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_achan1_2temp_trim_gain_type_t gain, int32_t temperature)

Description:

Loads the gain and offset correction values from the supervisory flash

This function loads the gain and offset correction values for the specified DCHAN connected to ACHAN1.

The output of the DCHAN must have the same LSB at the application of OCOR as the configuration used to create the values stored in the supervisory flash. This can be accomplished by adjusting either SHIFTL or

DEC_SHIFTR

The

Cy_Adc_GetDieTempFromDelta

API calculates the junction temperature in this fixed point format from the difference between two die temperature measurements. This function uses the

Cy_Adc_GetGcorOcorAchan1_2TempTrim

API to perform a linear interpolation of the OCOR and GCOR values in supervisory flash based on the provided temperature.

DCHAN connected to ACHAN1. This function uses the

Cy_Adc_GetGcorOcorAchan1_2TempTrim

API to perform a linear interpolation based on the provided temperature. 2Temp means the interpolation is done using a 2-point array.

Parameters:

base
– Address of the DCHAN registers
gain
– Gain value of the specified channel. Options are:
- CY_ADC_ACHAN1_2TEMP_GAIN_0P5X
- CY_ADC_ACHAN1_2TEMP_GAIN_1X
- CY_ADC_ACHAN1_2TEMP_GAIN_2X
- CY_ADC_ACHAN1_2TEMP_GAIN_4X
- CY_ADC_ACHAN1_2TEMP_GAIN_8X
- CY_ADC_ACHAN1_2TEMP_GAIN_16X
- CY_ADC_ACHAN1_2TEMP_GAIN_32X
- CY_ADC_ACHAN1_2TEMP_GAIN_64X
- CY_ADC_ACHAN1_2TEMP_GAIN_128X
- CY_ADC_ACHAN1_2TEMP_GAIN_256X
- CY_ADC_ACHAN1_2TEMP_GAIN_512X
temperature
– Fixed point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gain
or
sampleRate
are invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_CalibrateAchan1_3TempTrim()

cy_en_adc_error_t Cy_Adc_CalibrateAchan1_3TempTrim (volatile stc_PACSS_DCHAN_t * base, cy_en_adc_achan1_3temp_trim_divider_type_t divider, int32_t temperature)

Description:

Loads the gain and offset correction values from the supervisory flash

This function loads the gain and offset correction values for the specified DCHAN connected to ACHAN1. These values are for the high-voltage divider measurements.

DEC_SHIFTR

The

Cy_Adc_GetDieTempFromDelta

API calculates the junction temperature in this fixed-point format from the difference between two die temperature measurements. This function uses the

Cy_Adc_GetGcorOcorAchan1_2TempTrim

API to perform a linear interpolation of the OCOR and GCOR values in supervisory flash based on the provided temperature. measurements. This function uses the

Cy_Adc_GetGcorOcorAchan1_2TempTrim

API to perform a linear interpolation based on the provided temperature. 3Temp means the interpolation is done using a 3-point array.

Parameters:

base
– Address of the DCHAN registers
divider
– Which high-voltage divider is being sampled by the DCHAN. Options are:
- CY_ADC_ACHAN1_3TEMP_VSENSE_16
- CY_ADC_ACHAN1_3TEMP_VSENSE_24
- CY_ADC_ACHAN1_3TEMP_VDIAG_16
- CY_ADC_ACHAN1_3TEMP_VDIAG_24
temperature
– Fixed point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
divider
or
sampleRate
are invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_GetGcorOcorAchan0_2TempTrim()

cy_en_adc_error_t Cy_Adc_GetGcorOcorAchan0_2TempTrim (uint16_t *gcor, int16_t *ocor, cy_en_adc_achan0_2temp_trim_gain_type_t gain, int32_t temperature)

Description:

Retrieves the gain and offset correction values from the supervisory flash

This function loads the gain and offset correction values for the specified gain level. This function performs a linear interpolation of the gain and offset correction values based on the values defined for -40°C and 150°C. 2Temp means the interpolation is done using a 2-point array.

Parameters:

gcor
– Pointer to the gain correction value
ocor
– Pointer to offset correction value
gain
– Gain value of the specified channel
temperature
– Fixed-point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gain
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_GetGcorOcorAchan1_2TempTrim()

cy_en_adc_error_t Cy_Adc_GetGcorOcorAchan1_2TempTrim (uint16_t *gcor, int16_t *ocor, cy_en_adc_achan1_2temp_trim_gain_type_t gain, int32_t temperature)

Description:

Retrieves the gain and offset correction values from the supervisory flash

Parameters:

gcor
– Pointer to the gain correction value
ocor
– Pointer to offset correction value
gain
– Gain value of the specified channel
temperature
– Fixed-point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gain
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_GetGcorOcorAchan1_3TempTrim()

cy_en_adc_error_t Cy_Adc_GetGcorOcorAchan1_3TempTrim (uint16_t *gcor, int16_t *ocor, cy_en_adc_achan1_3temp_trim_divider_type_t divider, int32_t temperature)

Description:

Retrieves the gain and offset correction values from the supervisory flash

This function loads the gain and offset correction values for the specified gain level. 3Temp means the interpolation is done using a 3-point array.

Parameters:

gcor
– Pointer to the gain correction value
ocor
– Pointer to offset correction value
gain
– Gain value of the specified channel
temperature
– Fixed point, 12.20, junction temperature in celsius

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
gain
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Cy_Adc_CalibrateOffsetScalar()

cy_en_adc_error_t Cy_Adc_CalibrateOffsetScalar (volatile stc_PACSS_DCHAN_t * base)

Description:

Loads the offset correction scalar value from the supervisory flash

This function loads the offset correction scalar value for the specified DCHAN.

Parameters:

base
– Address of the DCHAN registers

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
base
is NULL

Convert raw ADC counts to volts

Description

Provides APIs for converting ADC counts to volts and millivolts. This is to show the basic functionality of the evaluation board with easily understood the results that would match a voltmeter measuring the board. Results are in floating-point format which will lose precision for large integer values. It is up to the user to prevent this in their application.

APIs

Cy_Adc_CountsToVolts()

float Cy_Adc_CountsToVolts (int32_t counts, cy_en_adc_channel_type_t channelType, cy_en_adc_sample_rate_t sampleRate, float vref)

Description:

Converts the input from raw ADC counts to volts

ADC counts are explained in the decimator result calculation section of the TRM. Some of that explanation is replicated here along with an example of how the results correlate to voltage.

The ADC result depends on the following parameters:

M = modulator data, ranges from -4 to 4
S = Scaler, left shift ranges from 0 to 9 (SHIFTL)
N = Number of sinc stages, values of 3 or 4 (SINC_MODE)
DR = Decimation ratio, typical values are: 32, 64 or 128
U = Moving sum (disabled: disabled = 1, two taps: U=2, four taps: U=4)
DR2 = Rate reducer decimation ratio; typical values: 2 or 6
OF = Offset correction (OCOR)
OFS = Offset scaler (OCOR_SCLR)
G = Gain correction (GCOR)
GV = Gain correction valid bits (GVAL)
RSA = Decimator right shift (DEC_SHIFTR)
RSB = Rate reducer right shift (RR_SHIFT)

To simplify the calculation, these steps assume that moving average is disabled, and the modulator data input is constant.

The result is calculated using the following calculations:

sinc3/sinc4 results = A = (M << S) * 2^(N*log2(DR)) * U
right shift result = B = A >> RSA
offset result = C = B + (OF << OFS)
gain result = D = (C * G) >> GV
sinc2 result = E = D * 2^(2*log2(DR2))
decimator output = F = E >> RSB

The left shift is most commonly used in AGC to keep all results on the same number scale regardless of gain level. Right shifts are used to prevent overflowing the 32-bit result register.

Note:

When using a Moving Sum of 4, subtract 30 instead of 32 from the equations below:

The equation for determining DEC_SHIFTR is:

log2(qlev) + max(SHIFTL) + N*log2(DR) - 30

Where qlev = 9, the quantization levels of the modulator -4 to 4, including 0.

The equation for determining RR_SHIFTR is:

log2(qlev) + max(SHIFTL) + Nlog2(DR +1) +2log2(DR2+1) - DEC_SHIFTR - 30

The maximum output value, MAX_COUNT below, is determined by using the maximum modulator output which is 4. Similarly, the minimum modulator output value is -4 so the MIN_COUNT == MAX_COUNT * -1. The LSB is the reference voltage divided by MAX_COUNT.

The code examples use three different configurations, and will walk through the MAX_COUNT calculation for the current channel and provide the parameters for the other channels. The current channel uses a SHIFTL of 8 at the lowest AGC gain setting with SHIFTL decreasing with each gain increase to keep the values on the same scale.

For this exercise, assume that offset and gain correction are used to keep the results along the ideal, linear curve between +/- VREF. Therefore, you can ignore the gain and offset calculations (steps 3 and 4 above).

Current channel
- SHIFTL = 8
- DR = 64
- N = 3 (Sinc3, SINC_MODE=0)
- DEC_SHIFTR = log2(qlev) + max(SHIFTL) + N*log2(DR) - 30
  = log2(9) + max(8) + 3*log2(64) - 30
  = 3.17 + 8 + 18 - 30
  = 29.17 - 30
  = -0.83, rounded to the nearest positive integer
  = 0
- DR2 = 6
- RR_SHIFTR = log2(9) + max(SHIFTL) + Nlog2(DR) + 2log2(DR2) - DEC_SHIFTR - 30
  = 3.17 + 8 + 18 + 2*log2(6) - 0 - 30
  = 29.17 + 5.17 - 30
  = 34.34 - 30
  4.34, rounded to the nearest positive integer
  = 5
- MAX COUNT = (DECB * 2^(2*log2(DR2))) >> RR_SHIFTR, where:
  DECB = ((4 << SHIFTL)2^(Nlog2(DR)) * U >> DEC_SHIFTR)
  DECB = ((4 << 8)2^(3log2(64) * 4) >> 0)
  DECB = 1024 *2^18 * 4 >> 0
  DECB = 1073741824
  = (DECB) * 2^(2*log2(6)) >> 5
  = 1073741824 * 2^5.1699 >> 5
  = 1,207,959,552 (0x48000000)

The current channel uses AGC with gains of 0.5x to 128x as well as an accumulated average (U) of 4x. This means that the lowest AGC gain is effectively 2x (0.5x gain * 4x summed average). To compensate for this 2x gain in the equations below, subtract one from the RR_SHIFTR calculated above, making it 4.

Voltage channel
- SHIFTL = 0
- DR = 64
- DEC_SHIFTR = 0
- DR2 = 6
- RR_SHIFTR = log2(9) + max(0) + 3log2(64) + 2log2(6) - 0 - 30
  = 3.17 + 18 + 5.17 -30
  = -3.66
  = 0
- MAX COUNT = 37,748,736(0x02400000)

Diagnostic channel
- SHIFTL = 0
- DR = 64
- DEC_SHIFTR = 0
- DR2 = 1
- RR_SHIFTR = 0
- MAX COUNT = 1,048,576 (0x00100000)

Voltage output:

voltage = decimator_output * ((max_reference_voltage - min_reference_voltage) / (max_counts - min_counts))

Parameters:

counts
– ADC Results from the conversion to be converted to millivolts
channelType
– Channel type. Options are:
- CY_ADC_CURRENT_CHANNEL
- CY_ADC_VOLTAGE_CHANNEL
- CY_ADC_DIAGNOSTIC_CHANNEL
sampleRate
– Channel sample rate. Options are:
- CY_ADC_SAMPLE_RATE_48KSPS
- CY_ADC_SAMPLE_RATE_8KSPS
- CY_ADC_SAMPLE_RATE_4KSPS
- CY_ADC_SAMPLE_RATE_3KSPS
- CY_ADC_SAMPLE_RATE_2KSPS
- CY_ADC_SAMPLE_RATE_1KSPS
vref
– Reference voltage in Volts

Returns:

Floating-point value of the result in volts

Cy_Adc_CountsToMillivolts()

float Cy_Adc_CountsToMillivolts (int32_t counts, cy_en_adc_channel_type_t channelType, cy_en_adc_sample_rate_t sampleRate, float vref)

Description:

Converts the input from raw ADC counts to millivolts

Voltage output:

voltage = decimator_output * ((max_reference_voltage - min_reference_voltage) / (max_counts - min_counts))

Parameters:

counts
– ADC Results from the conversion to be converted to millivolts
channelType
– Channel type. Options are:
- CY_ADC_CURRENT_CHANNEL
- CY_ADC_VOLTAGE_CHANNEL
- CY_ADC_DIAGNOSTIC_CHANNEL
sampleRate
– Channel sample rate. Options are:
- CY_ADC_SAMPLE_RATE_48KSPS
- CY_ADC_SAMPLE_RATE_8KSPS
- CY_ADC_SAMPLE_RATE_4KSPS
- CY_ADC_SAMPLE_RATE_3KSPS
- CY_ADC_SAMPLE_RATE_2KSPS
- CY_ADC_SAMPLE_RATE_1KSPS
vref
– Reference voltage in volts

Returns:

Floating-point value of the result in millivolts

On-die temperature calculation

Description

Provides APIs for converting an ADC count delta to a temperature value.

APIs

Cy_Adc_GetDieTempFromDelta()

cy_en_adc_error_t Cy_Adc_GetDieTempFromDelta(int32_t *result, int32_t delta, cy_en_adc_die_temp_setup_t setup)

Description:

Converts the delta between two die temp measurements to degrees celsius in fixed-point 12.20 format

Uses the formula (a2 * x^2 * 2^-34 + a1 * x * 2^-9 + a0 * 2^14)/2^20

where x = Delta ADC = ADC(UNIT) - ADC(1)

The division by 2^20 is not performed; it is symbolic of the fixed-point 12.20 format of the result.

Parameters:

delta
– 32-bit delta between the two die temp measurements
result
– Pointer for the conversion result in fixed-point 12.20 format
setup
– Selects the primary or alternate temperature measurement coefficients stored in SFlash

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
delta
is invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
result
is NULL

Cy_Adc_InitializeDieTempConfigs()

cy_en_adc_error_t Cy_Adc_InitializeDieTempConfigs (cy_stc_adc_temperature_config_t * one, cy_stc_adc_temperature_config_t * unit, cy_en_adc_die_temp_setup_t setup)

Description:

Initializes the two configurations used for temperature measurement with factory settings.

Die temperature measurements are made by taking two measurements, ADC(1) and ADC(UNIT). Each measurement uses a different number of either bipolar units or reference currents. The difference of these two measurements can be converted to a temperature using the

Cy_Adc_GetDieTempFromDelta

API.

Parameters:

one
– Address of the configuration for the (1) measurement
unit
– Address of the configuration for the (UNIT) measurement
setup
– Selects the primary or alternate temperature measurement parameters stored in SFlash

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
setup
in invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
one
or
unit
are NULL

Cy_Adc_NormalizeDelta()

cy_en_adc_error_t Cy_Adc_NormalizeDelta(int32_t *newDelta, int32_t delta, float ratio)

Description:

Normalizes the delta VBE measurement to the ratio of the current sources.

The delta VBE measurement is normalized to the ratio of the current sources by measuring the resistive load of the temperature sensor using the same bipolar transistors and current units.

The ratio of current sources or transistors is usually 9/1 so normalization can be done with the equation:

newDelta = delta*LN(9)/LN(ratio)

Natural logarithm is processor intensive so we instead use the linear approximation:

newDelta = delta + delta*(A*ratio + B)

where A = -0.0534 and B = 0.48

Parameters:

newDelta
– Address to store the normalized delta VBE
delta
– Delta VBE determined by two ADC measurements
ratio
– UNIT/1 ratio of the measured voltage across the resistor

Returns:

CY_ADC_ERROR_NONE
if no errors occur
CY_ADC_ERROR_BAD_PARAM
if
setup
in invalid
CY_ADC_ERROR_INPUT_ADDRESS_IS_NULL
if
one
or
unit
are NULL

Shunt resistor open detection of RSx pins

Description

Provides APIs for detecting disconnect shunt connections by switching internal pull-up resistors to the shunt pins. If the resistance between the RSHx or RSLx to ground is more than 1000 Ω, an open pin fault can be detected.

Figure 23

shows the shunt resistor open detection diagram.

APIs

Cy_Adc_GetPullupResistance()

uint16_t Cy_Adc_GetPullupResistance (cy_en_adc_rs_pin_type_t pin, int32_t temperature)

Description:

Returns the linearly interpolated resistance of the pull-up resistor

Parameters:

pullup
– Selects which of the diagnostic pull-up resistors to choose
temperature – Temperature of the die in 12.20 fixed-point celsius. Used for linear interpolation of the pull-up value along with the hot and cold values stored in the SFlash

Returns:

uint16_t
Pull-up resistance value in ohms; returns zero if
pull-up
is invalid

Cy_Adc_IsRsOpen()

bool Cy_Adc_IsRsOpen (int32_t pullup, int32_t shunt, int32_t temperature, cy_en_adc_rs_pin_type_t pin)

Description:

Uses samples of the shunt resistor and pull-up resistor to determine if the shunt resistor is disconnected (open). The circuit is open if the measured voltage with the pull-up enabled (Vpu) is greater than 1 volt or if Vpu > Vadc_th where Vadc_th is:

Vadc_th = Vsh + (Vdd - Vsh) * 600 / (600 + Rpu)

Vsh is the measured shunt voltage Rpu is the value of the pull-up resistor, determined using the temperature, based on measured values stored in SFlash.

The diagnostic channel uses a gain of 0.5x for these samples. The values input is multiplied by 2 in this function to correct for that attenuation.

Parameters:

pullup
– Result of measuring with the pull-up resistor enabled
shunt
– Result of measuring the shunt without the pull-up
temperature
– Temperature of the die in 12.20 fixed point celsius. Used to determine the pull-up value
pin
– Selects which pin is being tested

Returns:

true if RS open detected
false if RS open not detected

Summary

This application note had guided you details of the precision analog channel subsystem of PSoC™ 4 HV PA MCU. By using the precision analog channel subsystem, battery monitoring and management applications can be achieved with higher precision and a small number of external components. Infineon provides an evaluation board and wealth of sample software to help you get started with PSoC™ 4 HV PA family MCUs. To evaluate the evaluation board, contact your sales representative or Infineon Technical Support.

Glossary

Table 10.
Glossary
Terms	Description
AAF	anti-alias filter
ACHAN	analog channel
A/D converter	analog to digital converter
ADC	analog to digital converter
AGC	auto gain correction or auto gain control
AHB	advanced high-performance bus
API	application programming interface
BOD	brown-out detectors
CM0+	Arm® Cortex®-M0+ (processor core name)
CPU	central processing unit
CPUSS	CPU subsystem
DAP	debug access port
DCHAN	digital channel
DMA	direct memory access
DMAC	DMA controller
DR	decimation rate or decimation ratio
DSM	delta-sigma modulator
DW	data wire
ECC	error correction code (safety)
ESD	electro-static discharge
FIR	finite impulse response
FW	firmware
GCOR	gain correction
GPIO	general purpose I/O
HPBGR	high-precision bandgap reference
HV	high-voltage
HW	hardware
I/O	input or otput
IAR	IAR Systems (company name)
IOSS	I/O subsystem
IRC	interrupt controller
IRQ	interrupt request
ISR	interrupt service routine
LDO	low dropout
LIN	local interconnect network
LSB	least significant bit
MCU	microcontroller unit
MIPI	mobile industry processor interface
MMIO	memory-mapped peripheral I/O
MPU	memory protection unit
MSB	most significant bit
NMI	non-maskable interrupt
NTC	negative temperature coefficient
OCOR	offset correction
PA	precision analog
PACSS	precision analog channel subsystem
PGA	programmable gain amplifier
POR	power on reset
PWM	pulse width modulation
RAM	random access memory
ROM	read-only memory
SCB	serial communication block
SDL	sample driver library
SPI	serial peripheral interface
SFLASH	supervisory flash
SRAM	static RAM
SRSS	system resource subsystem
SWD	serial wire debugging
TCPWM	timer, counter and PWM
TRM	technical reference manual
TVS	transient voltage suppressors
UART	universal asynchronous receiver transmitter
VDIVIDER	voltage divider
WDT	watchdog timer

References

The following are the PSoC™ 4 HV PA family series application notes, datasheets and technical reference manuals. Contact

Technical Support

to obtain these documents and sample driver library.

Application notes

AN230264 - Getting started with PSoC™ 4 HV PA family
AN230265 - Hardware design guide for PSoC™ 4 HV PA family
AN230371 - High voltage subsystem (HVSS) in PSoC™ 4 HV PA family

Device datasheet

PSoC™ 4 HV precision analog datasheet

Architecture reference manual

PSoC™ 4 HV PA architecture reference manual (RM)

Registers reference manual

PSoC™ 4 HV PA registers reference manual (RM)

Evaluation board user guide

PSoC™ 4 HV PA evaluation board user guide

Sample driver library (SDL)

PSoC™ 4 HV PA sample driver library

Revision history


Document version	Date of release	Description of changes
**	2021-11-25	Initial release
*A	2023-04-19	Template update; no content updated.

AN230370 Precision analog channel subsystem in PSoC 4 HV PA family

About this document​

Scope and purpose​

Intended audience​

Introduction​

Precision analog channel subsystem overview​

Schematic and layout example​

Current sensor line​

Schematic example

Layout example

Voltage sensor line​

Schematic example

Layout example

Temperature sensor line​

Schematic example

Layout example

Battery minus and chassis GND connection​

PACSS firmware configuration​

Peripheral drivers​

Code example​

Dual convert design (current/voltage)​

Code Listing 1 Main function of dual convert design

Triple convert design (current/voltage/temperature)​

Code Listing 2 Main function of triple convert design

Multi convert design (current/voltage/multi data)​

Code Listing 3 Main function of multi convert design

PACSS calibration​

Calibration drivers​

Code example​

Channel OFFSET and GAIN calibration

Code Listing 4 Code example of channel OFFSET and GAIN calibration

PACSS diagnostic features​

Diagnostic drivers​

Code example​

On-die temperature calculation

Code Listing 5 Code example of internal temperature calculation

Shunt resistor open detection of RSx pins

Code Listing 6 Code example of internal temperature calculation

API details​

Start conversion​

Description

APIs

Results and data storage​

Description

APIs

Ground Reference​

Description

APIs

Sequencer​

Description

APIs

Reference​

Description

APIs

Interrupt​

Description

APIs

Offset and Gain Correction​

Description

APIs

VREF selection​

Description

APIs

Analog channel​

Description

APIs

Automatic gain correction (AGC) setting​

Description

APIs

Analog channel chopping​

Description

APIs

Digital channel​

Description

APIs

On-die temperature sensor​

Description

APIs

Channel offset and gain calibration​

Description

About this document

Scope and purpose

Intended audience

Introduction

Precision analog channel subsystem overview

Schematic and layout example

Current sensor line

Voltage sensor line

Temperature sensor line

Battery minus and chassis GND connection

PACSS firmware configuration

Peripheral drivers

Code example

Dual convert design (current/voltage)

Triple convert design (current/voltage/temperature)

Multi convert design (current/voltage/multi data)

PACSS calibration

Calibration drivers

Code example

PACSS diagnostic features

Diagnostic drivers

Code example

API details

Start conversion

Results and data storage

Ground Reference

Sequencer

Reference

Interrupt

Offset and Gain Correction

VREF selection

Analog channel

Automatic gain correction (AGC) setting

Analog channel chopping

Digital channel

On-die temperature sensor

Channel offset and gain calibration

Convert raw ADC counts to volts

On-die temperature calculation

Summary

Glossary

References

Revision history
