Quick start

This section provides a simple workflow for how to use the USB Configurator.

1. Launch the USB Configurator .

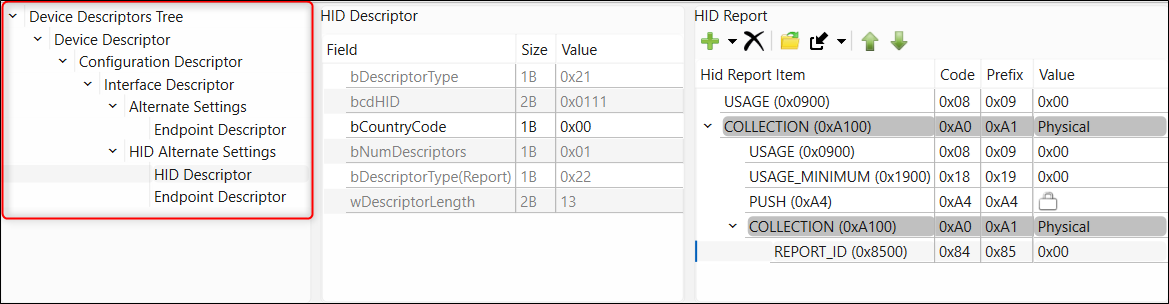

2. Configure the device descriptors hierarchy in the Device Descriptors Tree pane pane.

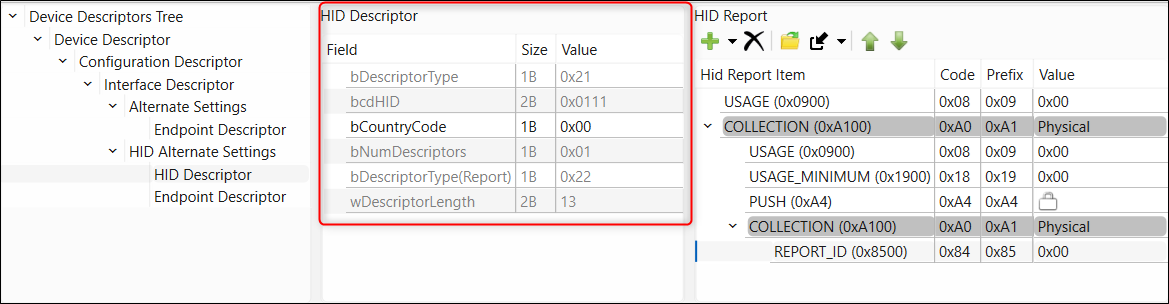

3. Configure device descriptor parameters in the Parameters pane .

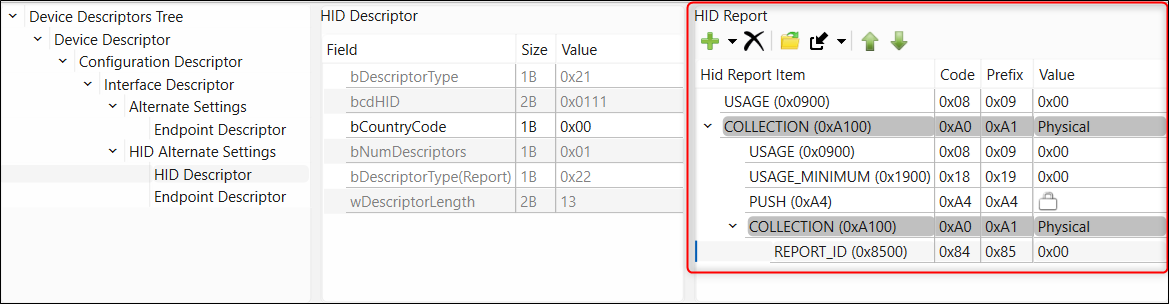

4. The parameters pane contains a subpane for HID descriptor (HID Report pane).



5. Save the configuration.

   See Code generation.

6. Use the generated structures as input parameters for functions in your application.
