TRAVEO™ T2G CYT4DN

TRAVEO™ T2G CYT4DN is an Arm® Cortex™-M4F dual CPU operating at 320 MHz dedicated to automotive systems like instrument clusters and head-up displays.

The TRAVEO™ T2G CYT4DN series comprises microcontrollers designed exclusively for automotive applications like instrument clusters and head-up displays (HUD). With a powerful 320 MHz Arm® Cortex®-M7 CPU for main tasks, a dedicated Arm® Cortex®-M0+ CPU for peripherals and security, a 2D graphics engine, sound processing, and a 720p GFX, the family delivers exceptional performance. It also offers two packages of 327-ball BGA.

Introducing TRAVEO™ T2G CYT4DN: a cutting-edge microcontroller family tailored for automotive applications like instrument clusters and head-up displays (HUD). With its robust 320 MHz Arm® Cortex®-M7 and Arm® Cortex®-M0+ 32-bit MCU core systems, it delivers exceptional performance. Featuring 6 MB flash, 640 KB RAM, and 128 KB work flash, it supports multiple supply voltages: 1.15 V, 1.8 V, 3.3 V, and 5.0 V.

The TRAVEO™ T2G CYT4DN family offers a wide range of interfaces, including Gigabit Ethernet, 4-ch CAN FD, up to 12-ch SCB, and 2-ch LIN-UART. It also includes 2-ch SMIF supporting various modes. Its 2.5D engine, 4 MB VRAM, vector drawing, JPEG decoding, and versatile video-in and video-out options enhance its cluster capabilities. The family supports audio features like a sound module, PCM-PWM, I2S, DAC, and a 6-ch SMC + ZPD.

Packaged in 327-BGA, 17 × 17 × 1.70 mm, the TRAVEO™ T2G CYT4DN family ensures flexibility in design. It seamlessly integrates with various automotive systems through embedded peripherals, supporting protocols like CAN FD, LIN, CXPI, and Ethernet.

Experience the power of TRAVEO™ T2G CYT4DN: the ultimate choice for automotive cluster excellence.

For information about the TRAVEO™ T2G CYT4DN portfolio, see Products.

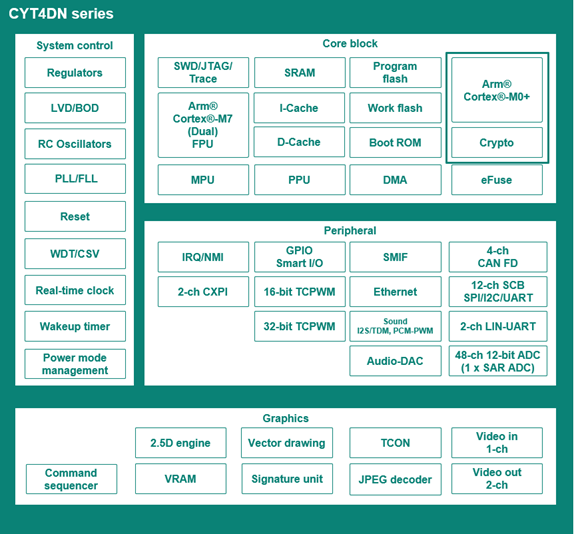

Figure 1. Block diagram

Key features​

  • 32-bit MCU core systems
    • 2x 320-MHz Arm® Cortex®-M7 and Cortex®-M0+
    • 6 MB flash, 640 KB RAM, and 128 KB work flash
  • 1.15 V, 1.8 V, 3.3 V and 5.0 V supply voltages
  • Interfaces
    • Gigabit-Ethernet, 4-ch CAN FD, 12-ch SCB, and 2-ch LIN-UART
    • 2-ch SMIF: Single/Dual/Quad/Octal-SPI/HYPERBUS™
  • Cluster features
    • 6-ch SMC + ZPD
    • 2.5D engine, 4M VRAM, Vector drawing, JPEG decoder
    • Video-out: 2-ch (LVDS, RGB)/ Video-In: 1-ch (RGB, MIPI)
    • Sound module, I2S/TDM, PCM-PWM and DAC
  • Packages
    • 327-ball BGA

Key benefits​

  • Low-power 2.7 V to 5.5 V operation
  • Up to 10 pins to wakeup from hibernate mode
  • Real time clock (RTC)
  • Debug interface
  • Compatible with industry-standard tools
