The easiest way to install ModusToolbox™ software is to use the ModusToolbox™ Setup program. After you install it, you need to launch Setup program to view and select various ModusToolbox™ packages to install. As packages are updated to new versions over time, you can then use the Setup program to update your system, and the Setup program will even check to update itself. This section contains the following steps:

Note:

The Setup program version is separate from the versions of the tools packages and various other packages. Each different program and package will likely be updated at different times instead of all at the same time.



Installing the Setup program​

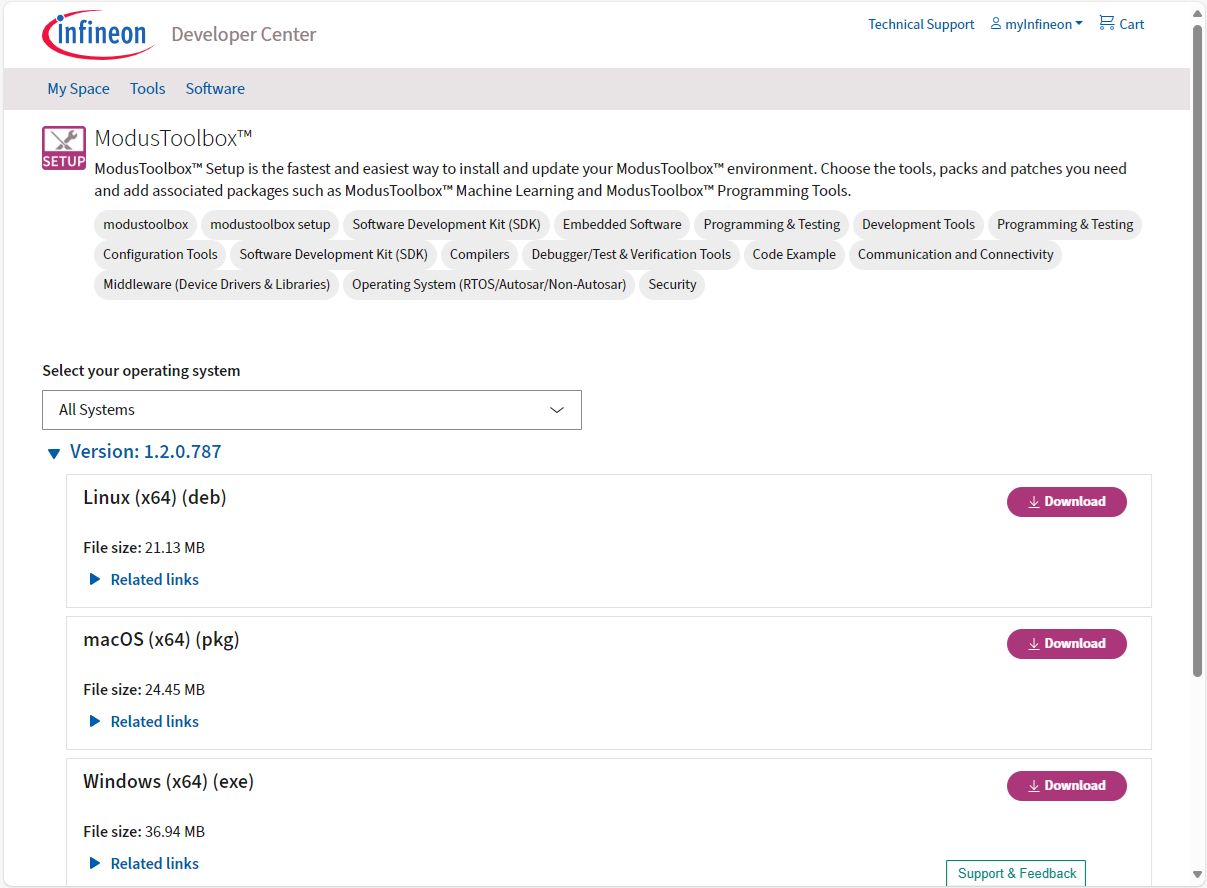

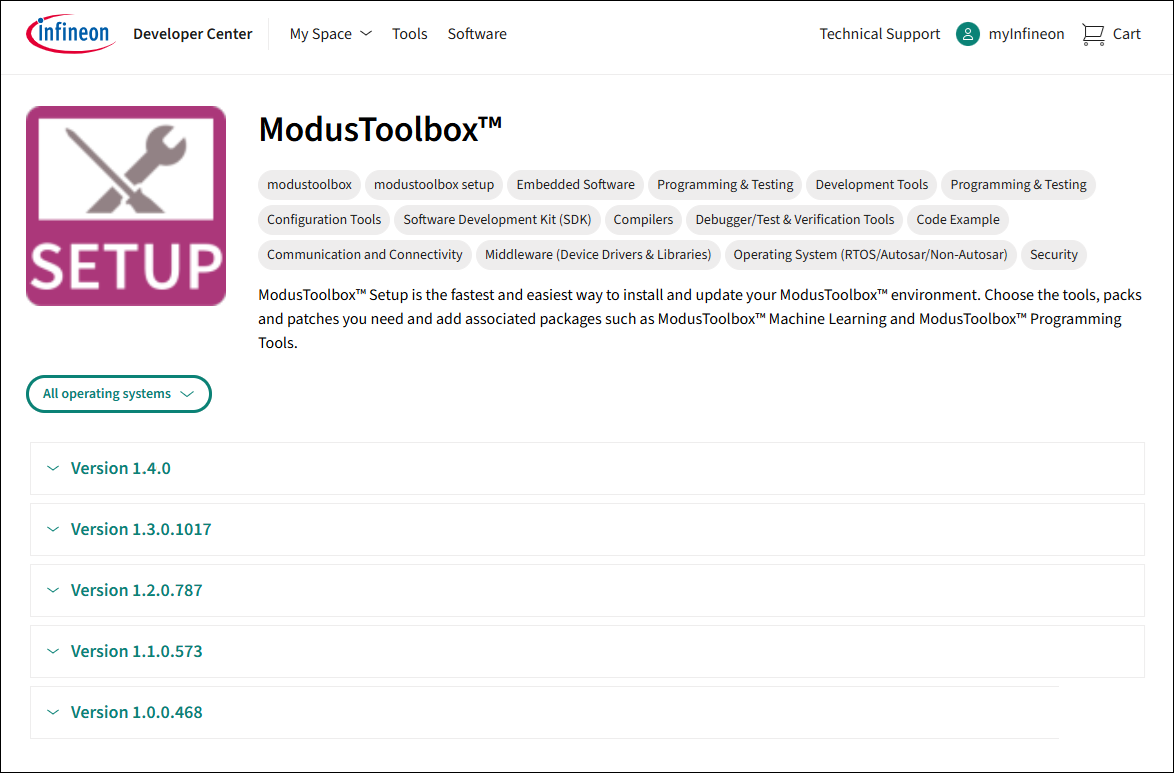

When the download completes, follow the instructions for your operating system.

macOS​

On macOS, launch the installer and follow the wizard. The default is to install for all users in

Applications

.



Linux​

On Linux, open a terminal and run

sudo apt install <package-name>.deb

. The Debian package doesn’t provide a user option and installs for all users in

/opt/Tools

.

Note:

If you see a message similar to this:



"N: Download is performed unsandboxed as root as file '/home/(username)/Downloads/ModusToolboxSetupInstaller_1.X.Y.Z_linux_x64.deb' couldn't be accessed by user '_apt'. - pkgAcquire::Run (13: Permission denied)",



Simply disregard it, as this message is not an error, but a notice informing you that 'apt' tool accesses the package file under the "root" user instead of "_apt" user having restricted rights. This does not affect the installation process of the tool.


Windows​

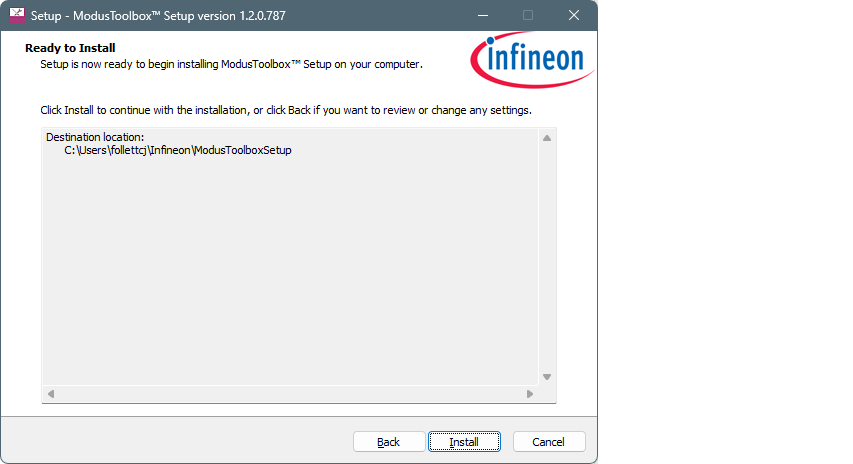

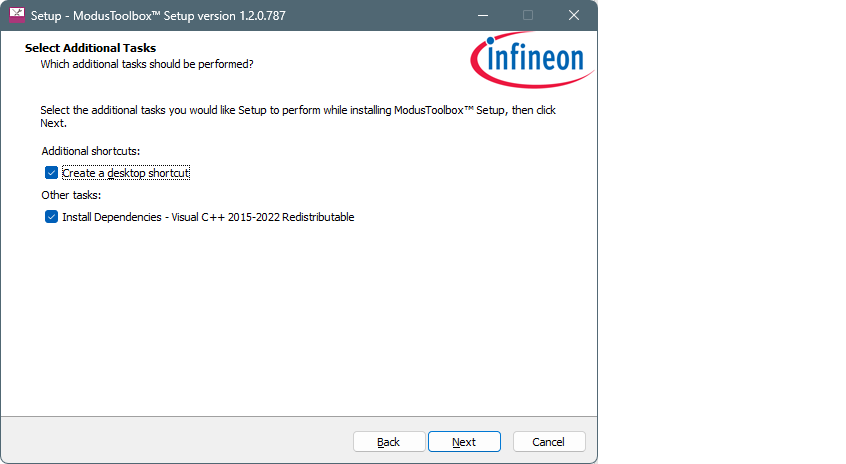

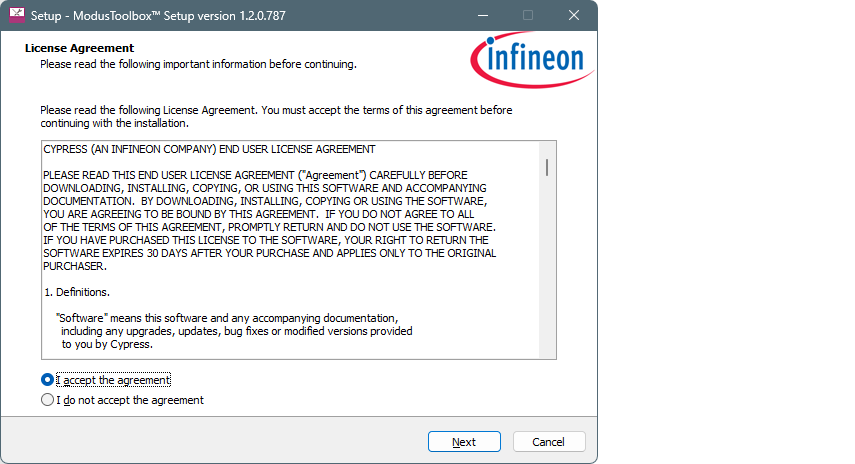

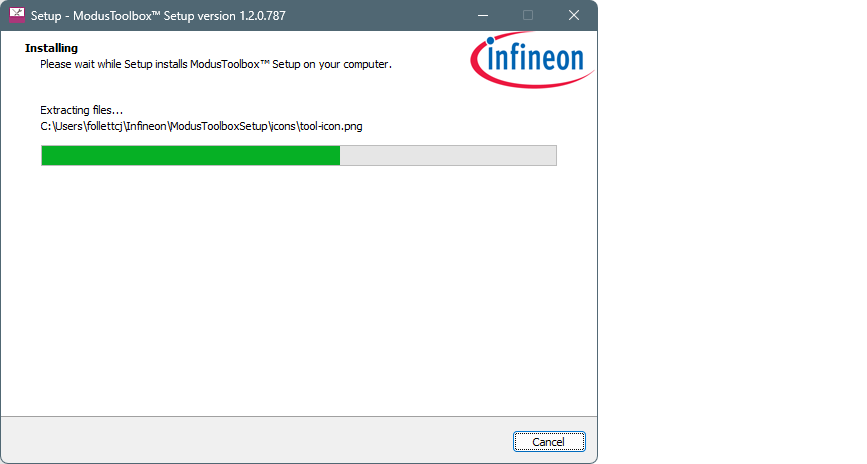

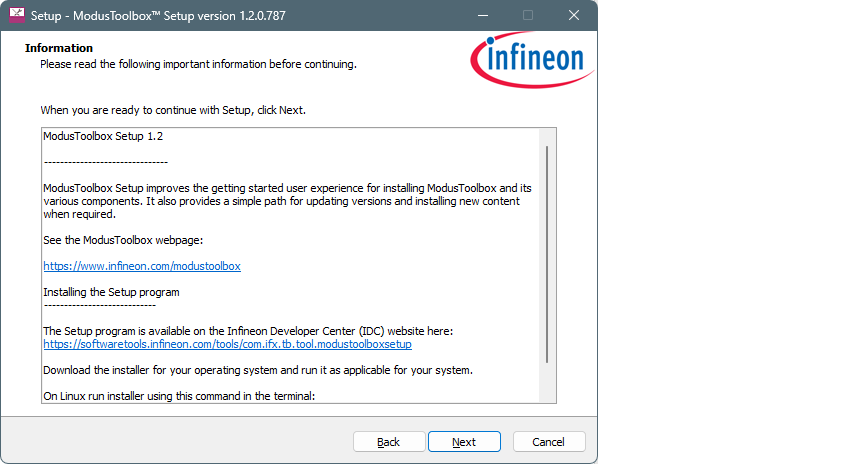

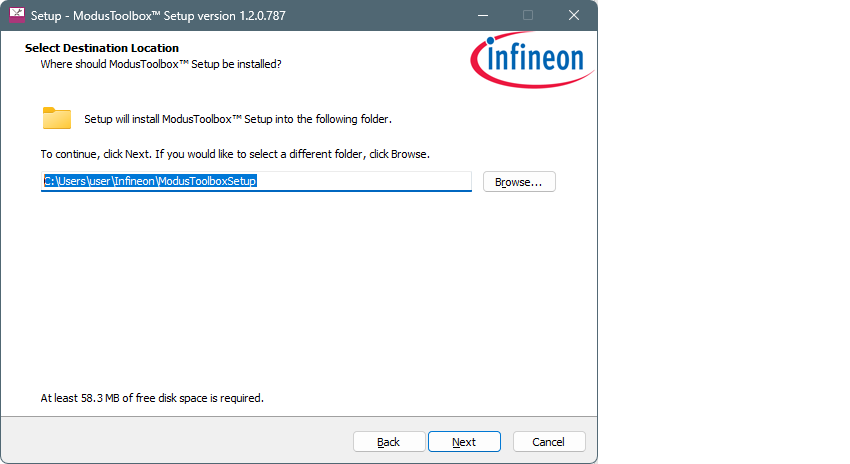

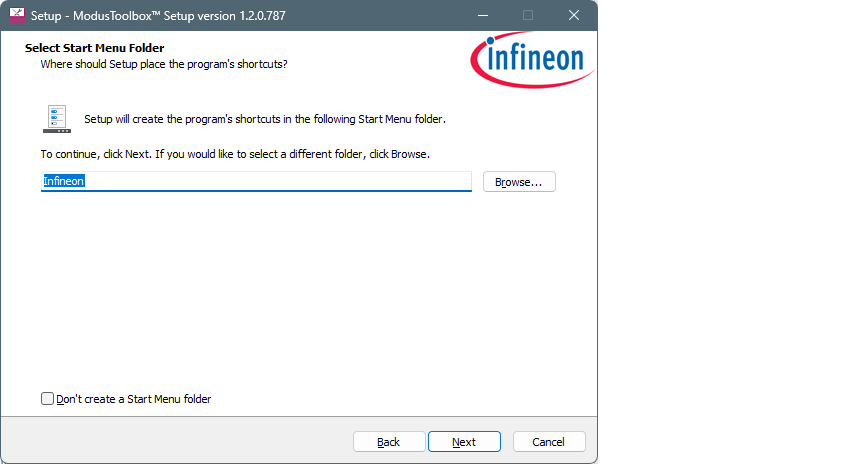

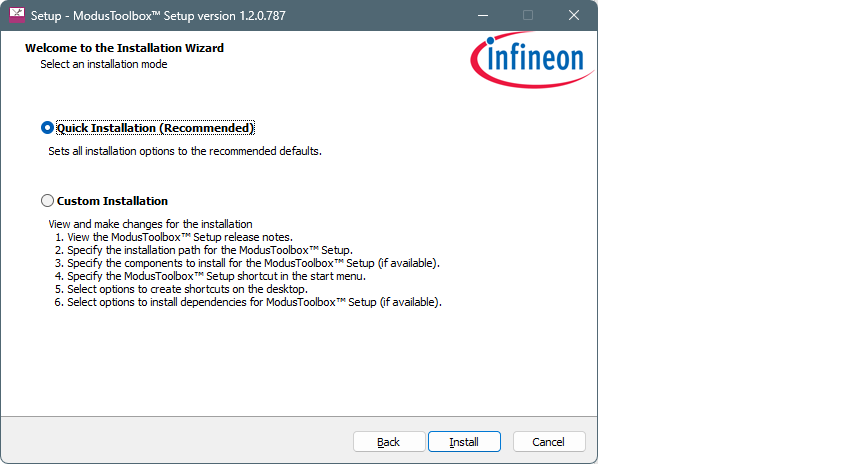

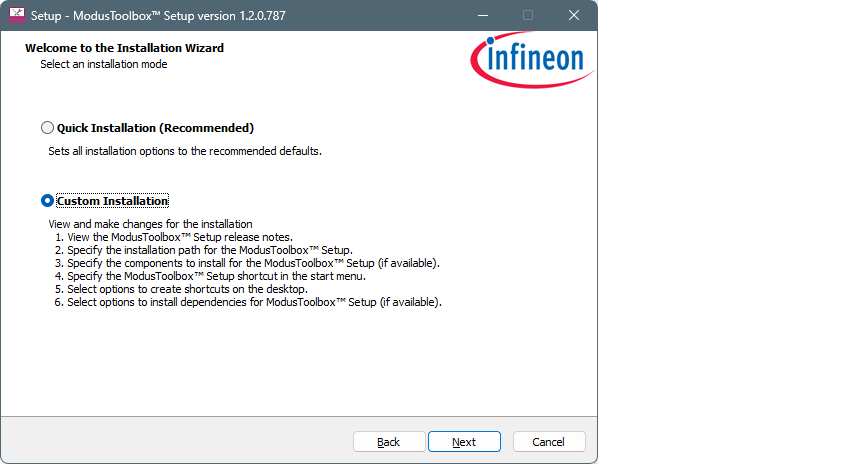

On Windows, launch the installer, and select

Install for me only (recommended)

in most cases.



Launching the Setup program​

Initial installation​

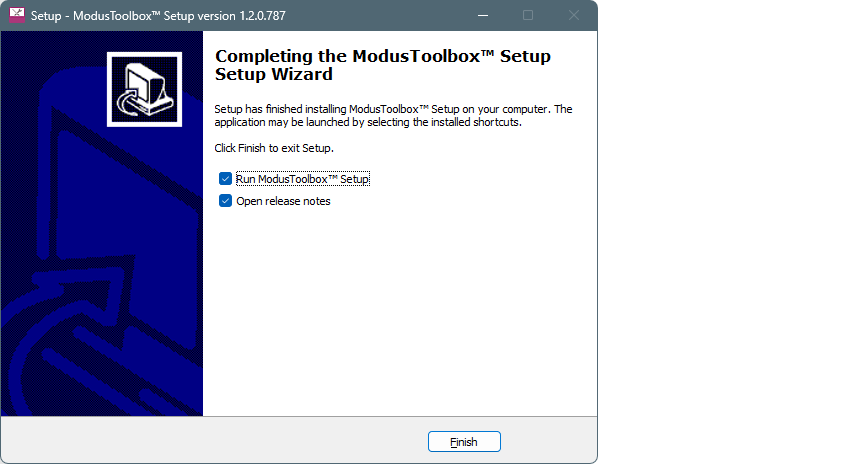

On the final screen of the installer, there will be an option to launch the Setup program and to open the release notes. If you select the options, they will open automatically when you click

Finish

. If you choose to launch the Setup program later, you can do so as applicable for your operating system.

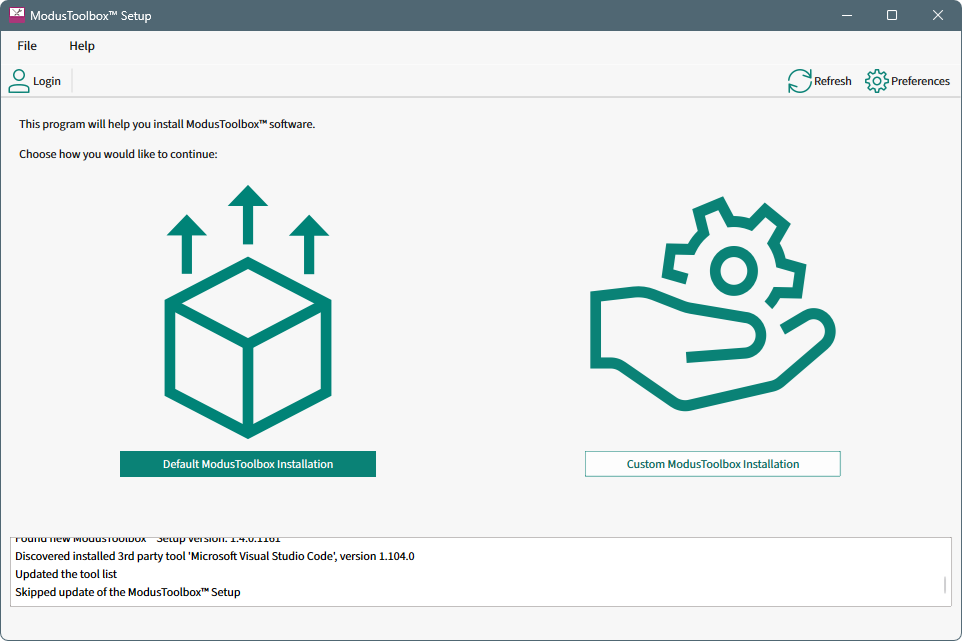

If you do not have any ModusToolbox™ tools package installed, the Setup program opens showing you two options:

  • Default

    – Selects all the newest minimum required packages.

  • Custom

    – Allows you to select the packages you want.


Subsequent uses​

After you have installed a ModusToolbox™ tools package, the Setup program will open showing you what is installed, as well as any other packages that are available. Refer to the

Setup program GUI description

section for more details.

Also after installing, you can also launch the Setup program from the Dashboard, as well as from various tools such as Project Creator or Library Manager if they prompt you when your application does not have a required asset.

Installing the minimum required software packages​

To install the minimum required software:

  1. Click the

    Default

    option if it is available. This will select the latest versions of these packages automatically (as shown in Step 3):

    • GCC

    • Tools package

    • Edge Protect Security Suite

    • Programming tools

  2. If the

    Default

    option is not available, or if you want to choose other the packages using the

    Custom

    option, select the ModusToolbox™ Tools package version you want to install. This will also select the dependencies: GCC, Edge Protect Security Suite, and Programming tools.



    Note:

    Earlier releases of the ModusToolbox™ tools package included Eclipse and GCC. They are now separate installable packages.

    Note:

    Installing Programming tools and some other packages may require an Administrator user name and password to proceed.

  3. Click

    Next >

    .

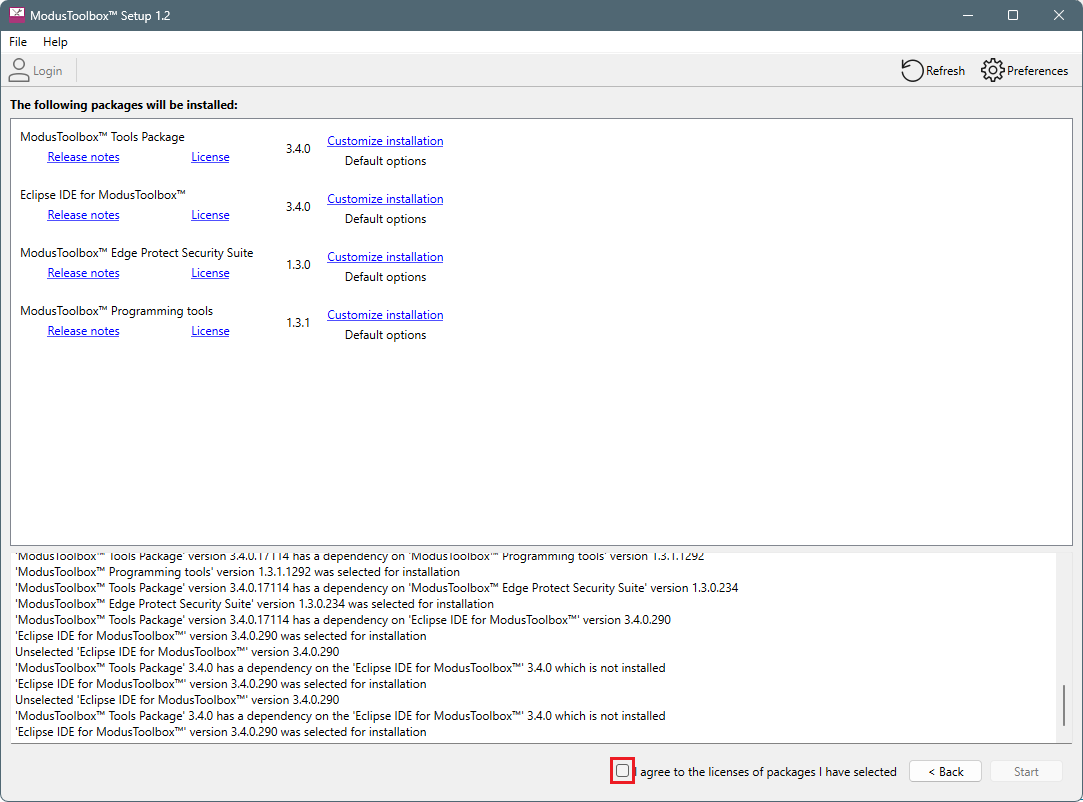

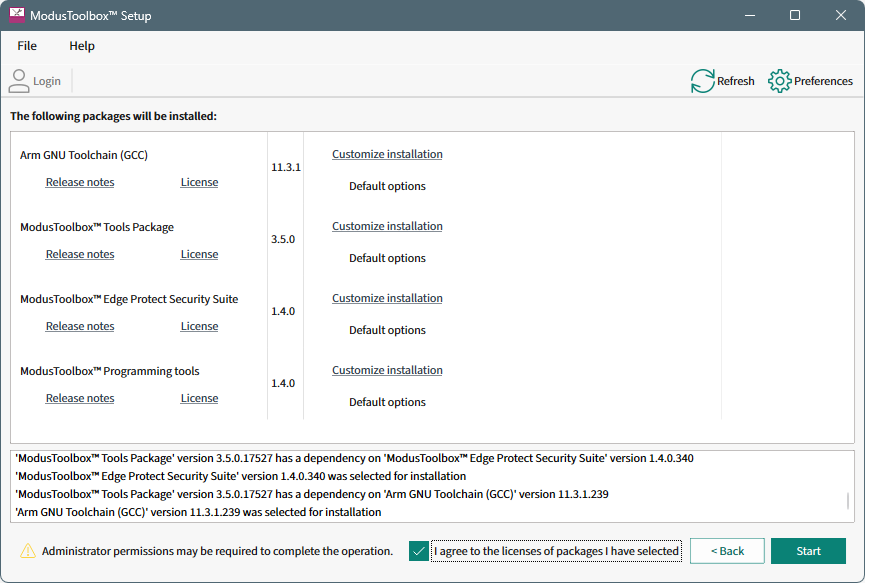

    This screen shows the packages that will be installed, with links to the release notes, license, and custom installation options for each package. We recommend using the default installation options. See

    Choose the customize installation option

    if you need to install in a non-default location.



  4. Select the

    I agree to the licenses …

    check box and click

    Start

    .

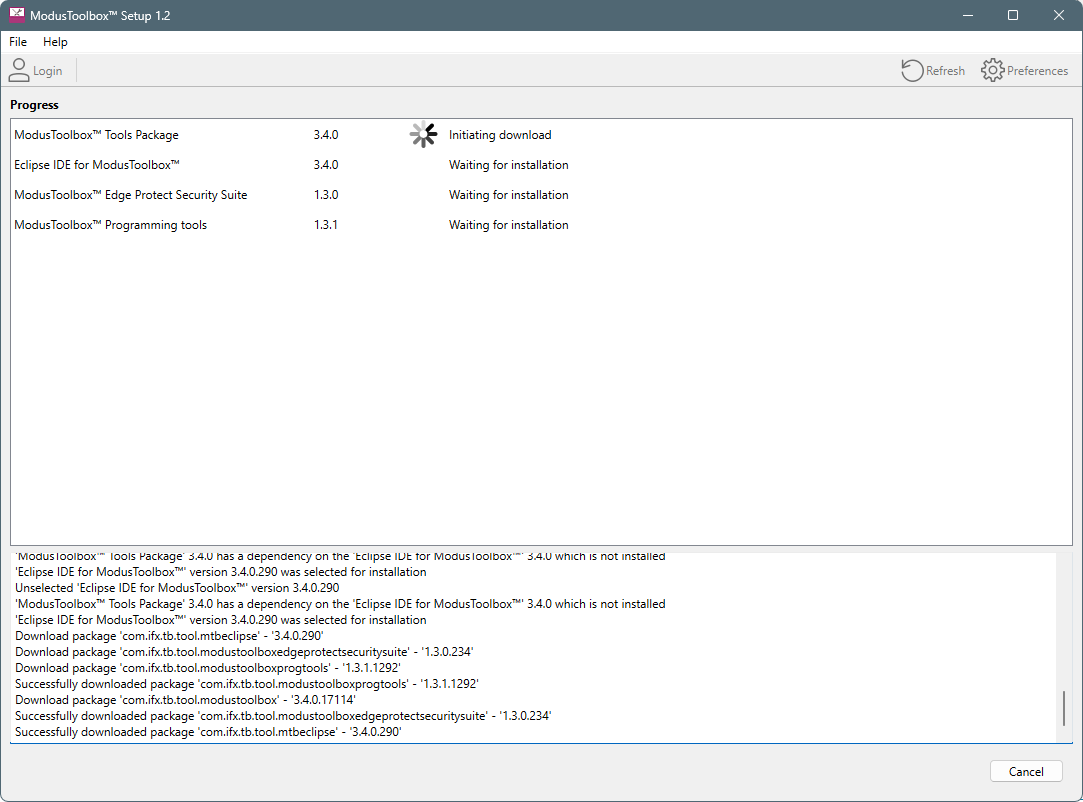

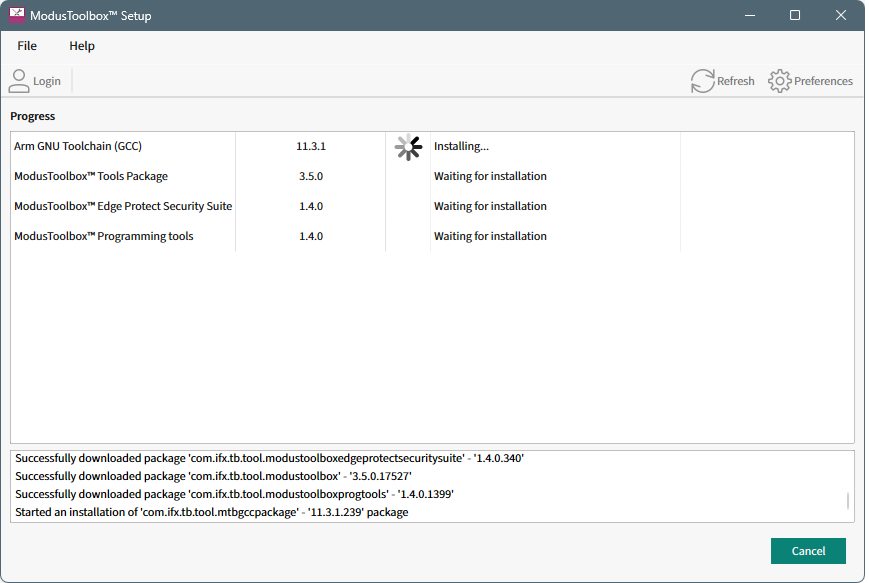

    The Setup program will download and install the selected packages.



    Note:

    Clicking the

    Cancel

    button will not affect install operations that have already started; only pending install operations will be stopped.

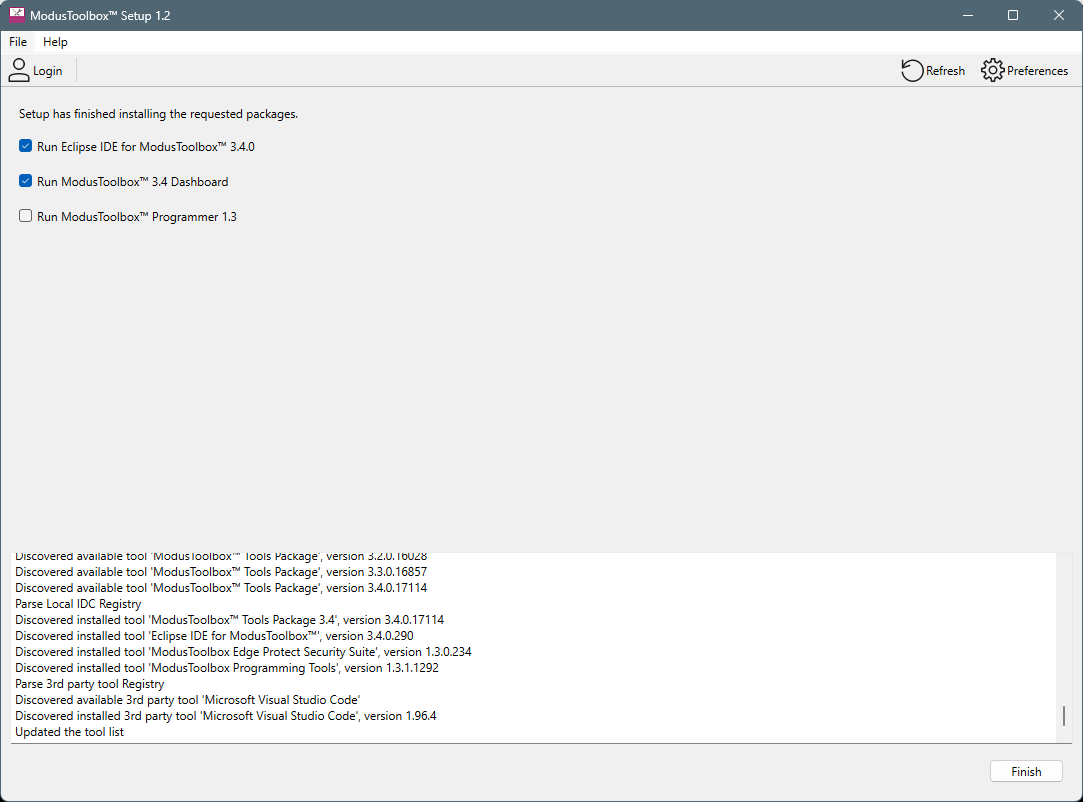

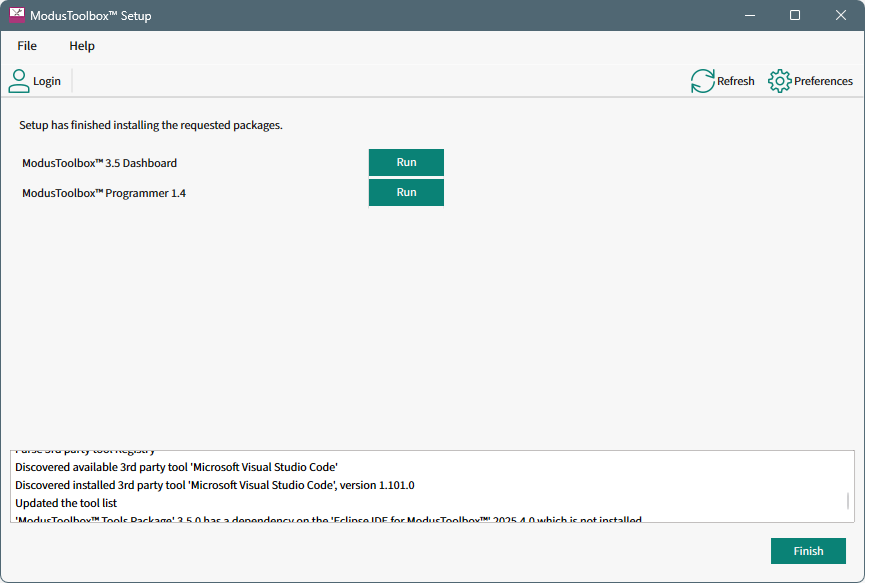

  5. When all packages are installed, the Setup program shows options to run various tools. Click

    Run

    for the tools you wish to start.



  6. Click

    Finish

    to return to the select packages window, or click

    File > Exit

    to close the Setup program.

Installing IDEs​

You can use the Setup program to install the Eclipse IDE as a separate package. Just select it from the list.

You can also use the Setup program to download Microsoft Visual Studio Code to install it separately. Click on the "Download MS VS Code" link. In the opened browser window, download the installation package suitable for your system and install it manually following platform-specific guides on

https://code.visualstudio.com/docs/setup/setup-overview

. On Ubuntu Linux, the recommended packages are "deb" or "snap". On macOS, download and extract the .zip archive content and drag "Visual Studio Code.app" to the Applications folder.

After the installation is complete, return to the ModusToolbox™ Setup window and click the

Refresh

button to update the UI.

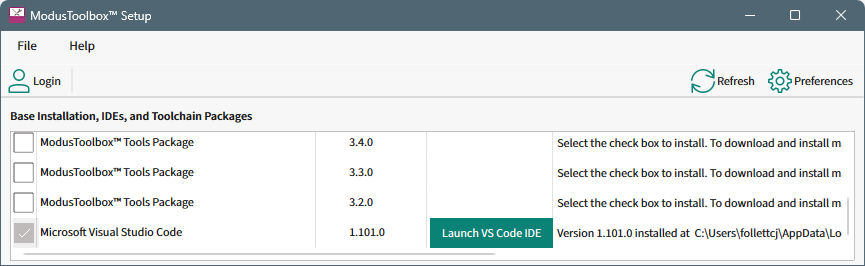

Once either IDE is installed, the Setup program provides a button to launch it.



Installing packs​

After installing the minimum required software packages, you are ready to begin developing your application using the ModusToolbox™ ecosystem. Our devices and software support multiple technologies. Review these webpages to learn more. You can use the Setup program to install additional packs as needed.

Refer also to the

tools package user guide

for a complete description of the ModusToolbox™ ecosystem, information about the build system, manifest, and BSPs, as well as instructions about how to get started creating and building an application.

There are two kinds of packs:

  • Technology packs - long term packs that provide extended technology software and tools as noted above.

  • Early access packs - short term packs to provide selected customers access to newer devices and technology that is still being developed.

Installing technology packs​

To install a particular technology pack, you can just select it in the Setup program. There are no special requirements to install and use these types of packs, other than having the base tools package and dependencies already installed.


Installing early access packs​

To install an early access pack, you must be given access. This may include signing a non-disclosure agreement (NDA). Once you have permission, you will be able to see available early access packs when you log in to the Setup program. Then, you can select it and download/install it the same as any pack or package.

In order to use an early access pack, you must enable it using the Settings tool. Refer to the

Settings tool user guide

for details about that tool.
